• *Brand:Baite
• *Color:Multi Color
• *Voltage:22V
• *Weight:1T
• *Material:Stainless Steel
• *Warranty Period:1 Year
• *Country Of Origin:Shandong, China (Mainland)
• *After-Sales-Service:Technical Service
• *Dimension:Customized
• *Price:Negotation

Introduction

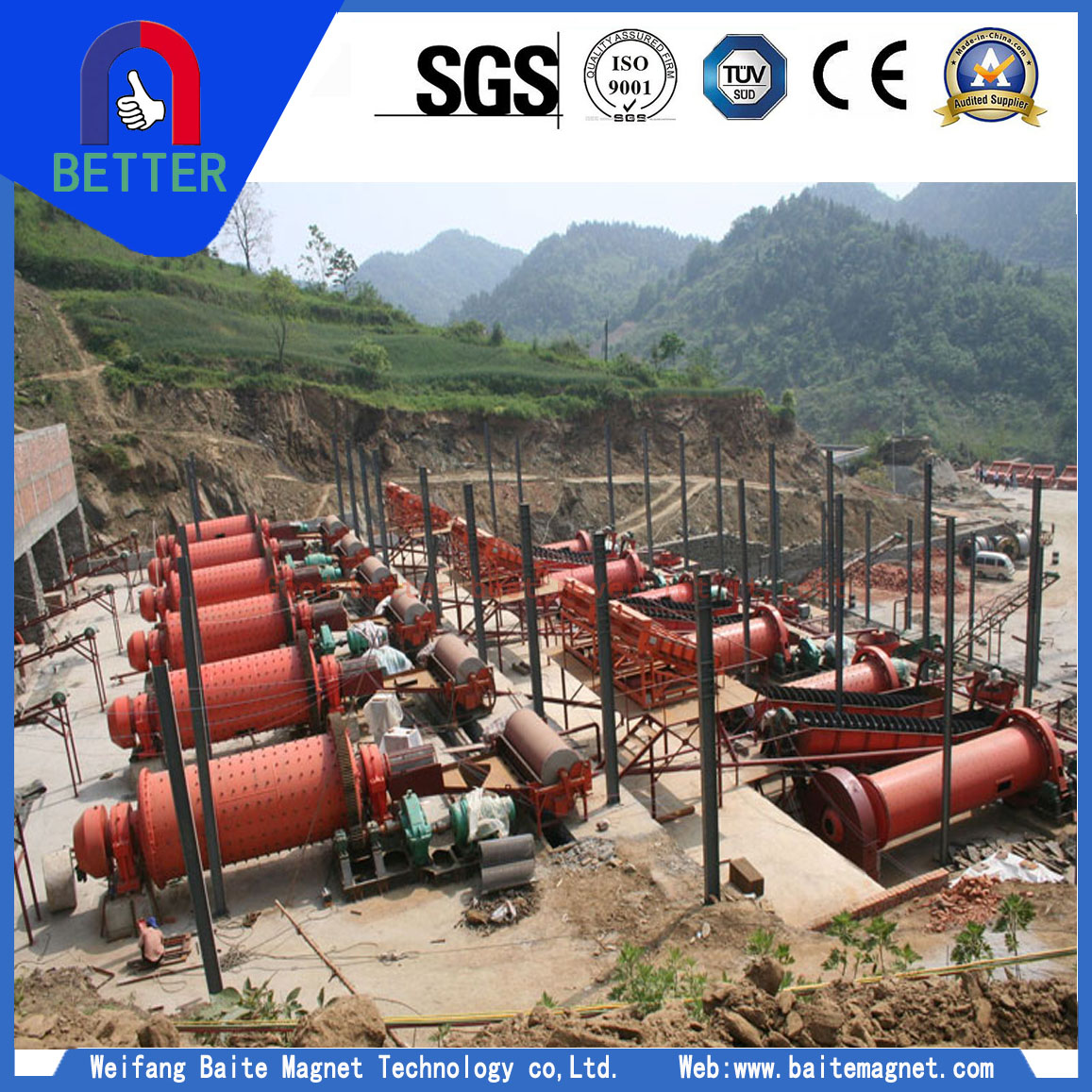

MQ ball mill is widely used in metal dressing, building materials, chemical industry, steel slag treatment, etc., the main equipment of ore and other materials. The factory can provide you with various diameter and length series ball mill, various grate and overflow discharge ball mill and various dry and wet ball mill. Main bearing of ball mill of key parts, our factory can provide you with the traditional babbit form of sliding bearing, roller bearing form, can also provide you currently on the market in order to saving energy and reducing consumption, convenient maintenance and popular with users form of large spherical roller bearing.

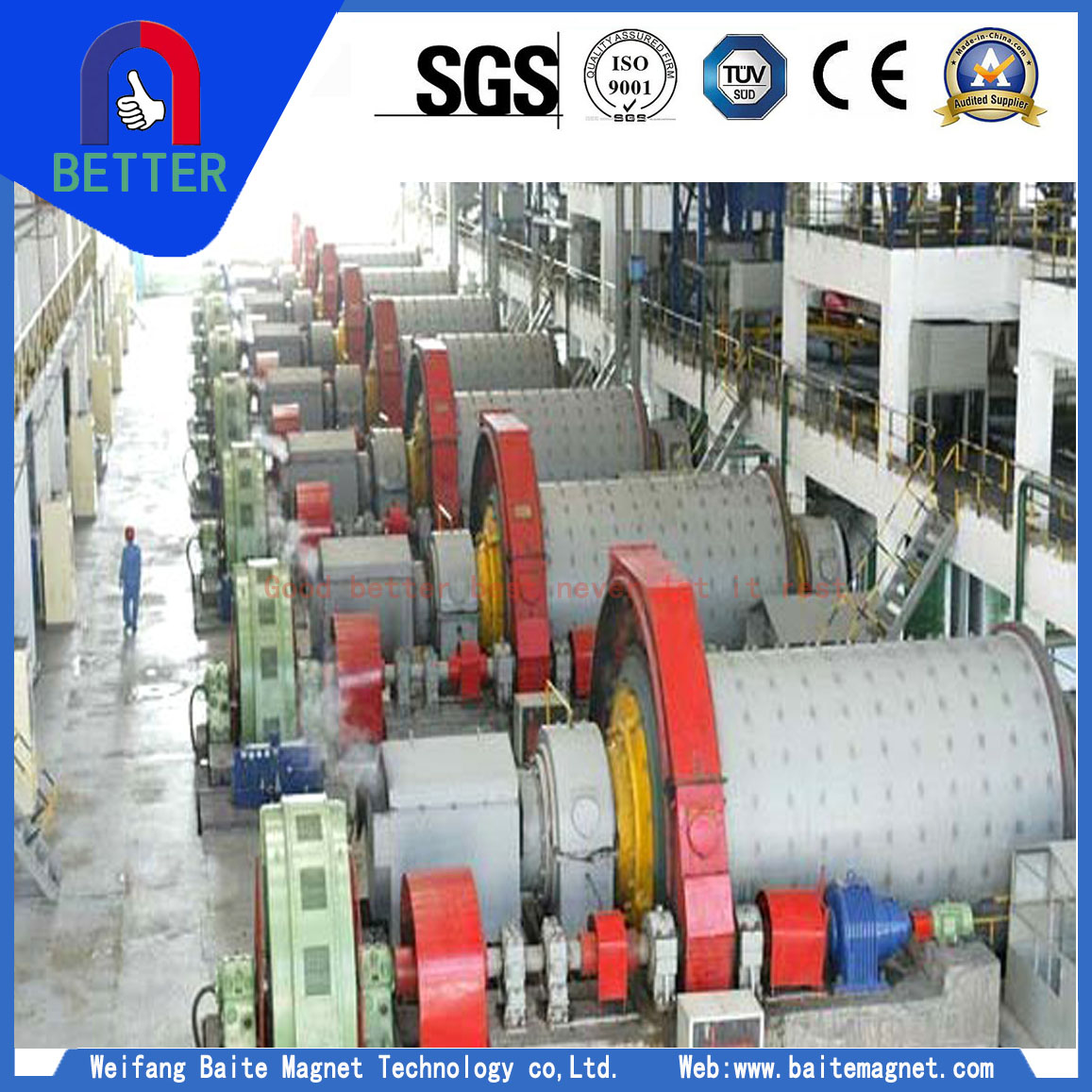

The main body of a ball mill is a low-speed rotary barrel mounted on two large bearings. The ball mill is driven by the motor through the reducer and the surrounding big gear reducer, or by the low speed synchronous motor. Suitable grinding medium - steel ball is fitted inside the cylinder body. The grinding medium, under the action of centrifugal force and friction, is elevated to a certain height, falling or falling. Materials to be abraded by feeding mouth continuously into the barrel inside, by the movement of grinding medium crushing, and the product through the power of the overflow and continuous feeding discharge outside, for the next working procedures.

Cylinder diameter from 900 ~ 2100 mm mill main bearing adopts spherical bearing, cylinder diameter 2700 mm above the adopted completely closed since a self-aligning 120  "joystick" type bearings, high low lead others have low hardness babbitt, buried beneath water cooling water pipe, bearing with static structure, using high and low pressure combined hydraulic lubrication. Main bearing seal USES the piston ring with the outside world, with the help of a rubber strip, and achieve good sealing grease, ball mill in structure adopted the big gear radial sealing box of new technologies, such as automatic spray lubrication.

A large mill equipped with a slow driving device can give the host a speed of 0.15r/min, which can be used when driving, overhauling or loosening the load. Meanwhile, it is equipped with a lifting device for repairing and lifting the rotary part.

Technical data
