• *Brand:Baite
• *Color:Multi Color
• *Voltage:220V
• *Weight:1T
• *Material:Stainless Steel
• *Warranty Period:1 Year
• *Country Of Origin:Shandong, China (Mainland)
• *After-Sales-Service:Technical Service
• *Dimension:Customized
• *Price:5500USD

In mining and crushing industry ,jaw crusher ,as the primary crusher in a crushing line, its performance plays an

 important role in the running of complete crushing line; therefore, users have an increasing demand on the

capacity and stability of jaw crusher. In accordance with the desired market, engineers in Weifang Baite Magnet

Technology Co,Let, combining 20-year experiences in the crushing industry, have developed BTD high-efficiency

 jaw crusher together with German engineers; it makes a significant/breakthrough of capacity and quality-improving

 in the crushing production line.

Upgraded Structural Design

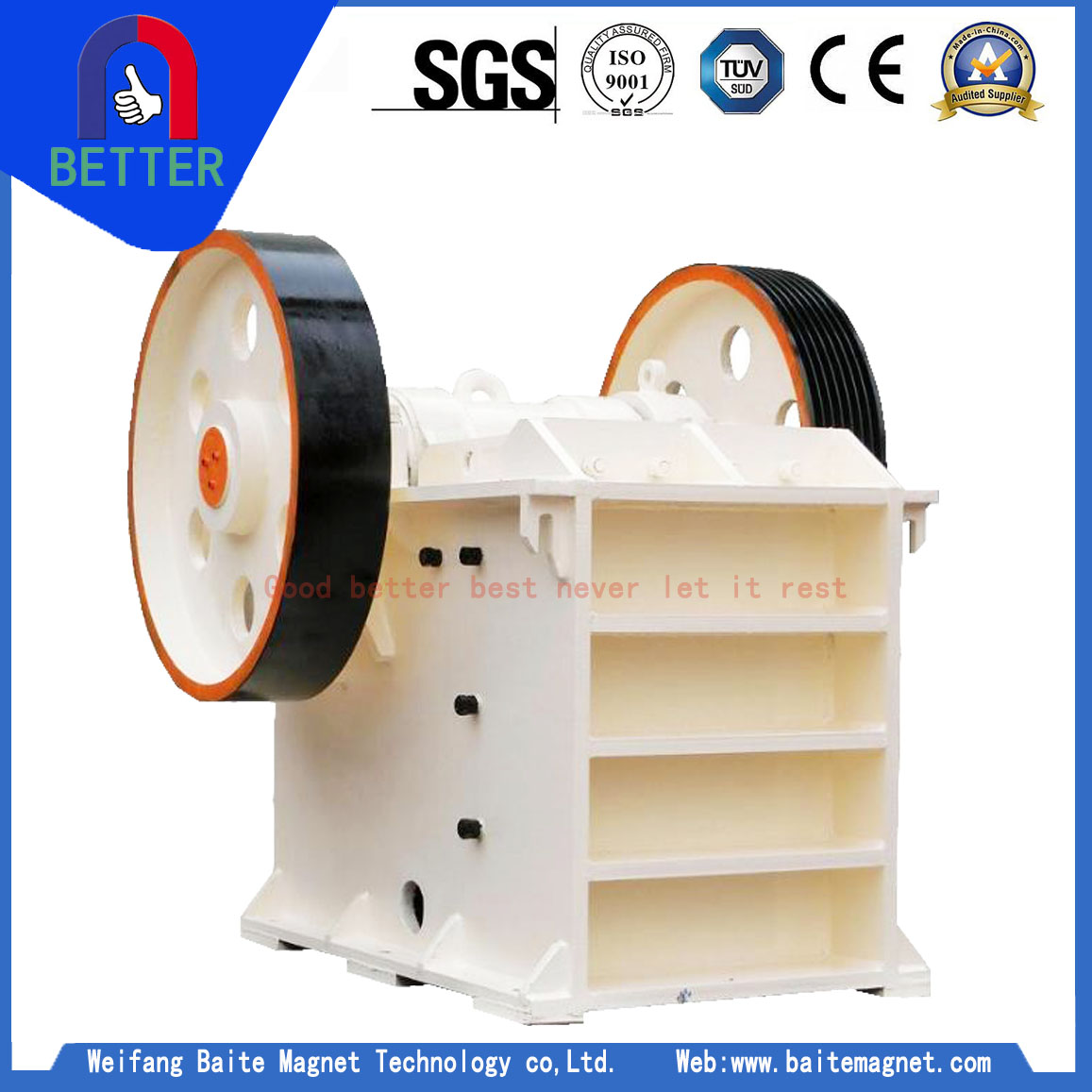

BTD Jaw Crusher-High Capacity and Reliable Performance

1、  Eccentric Shatt  Careful forging and heat treatment ensures an optimum speed and a higher throughput. Larger bearings in both sides guarantee greater bearing capacity and reliability.

2、  Flywheel  Numerous calculations and designs effectively eliminate the unbalanced vibrating force caused by the eccentric motion. Perfectly match with the counter weight buffers the vibration foramore stable and reliable performance.

3、  Frame  E-shaped frame with reasonable distribution of strengthening rib , making the machine more stableand strong. The operation vibration is small, noise is low. Bolt locking system of the side plate makes the running more efficient and convenient.

4、  Jaw plate  Optimized curvy-shape design can improve the capacity and reduce the wear.Thicker manganese steel alloy material ensures longer life span.Symmetric design, jaw plate can be re-placed upside down for prolonged utilization.

5、  Bearing Base  Optimized structure stabilizes the operation which further reduces the harm to be bearings in case of any deformation.Special placement can effectively eliminate the crushing force.

6、  Adjustment Device  Fast discharge opening setting adjustment can be realized by the screw pole or the hydraulic cylinder.

7、  Lubrication System  Concentrated lubrication and common lubrication connecting joint allow lubrication efficient and convenient.  Labyrinth seal effectively reduces the dust pollution.

8、  Crushing Cavity  Optimized cavity design, precise eccentric throw calculation and scientific movable jaw design can improve the capacity by 30%-50%.

 More Higher Crushing Efficiency and Capacity

 Lower Vibration  More Stable Operation

 Humanization Design  Easy to Maintain

 Abroad application  better feasibility

overal Dimension Drawing

Technical Parameter

Packaging & Delivery
Packaging Details:
Exported standard packing and polywood wooden cases.
Delivery Detail:
Shipped in 20 days after payment.
