CTS High Efficiency Wet Magnetic Drum Separator For Processing Magnetic Materials
CTS High Efficiency Wet Magnetic Drum Separator For Processing Magnetic Materials
CTS High Efficiency Wet Magnetic Drum Separator For Processing Magnetic Materials
Model:CTS Series Wet Permanent magnet drum magnetic separator
CTS Series Wet Permanent magnet drum magnetic separator is suitable for mining ore dressing, metallurgy mine concentrator and other enterprises and institutions and individuals, and is used for the magnetic mineral fine particles, or, in addition to without magnetic minerals in the mixed magnetic minerals. Permanent magnet drum magnetic pause cylinder surface magnetic field intensity is much higher than the ordinary permanent magnet magnetic separation machine, easy to operation management and maintenance, when used in various field of concentrator has obvious energy saving power
Print Product Summary
  • *Brand:Baite
  • *Color:Multi Color
  • *Voltage:220V
  • *Weight:1T
  • *Material:Stainless Steel
  • *Warranty Period:1 Year
  • *Country Of Origin:Shandong, China (Mainland)
  • *After-Sales-Service:Technical Service
  • *Dimension:Customized
  • *Price:Negotation
rechal@baitecidian.com
+86-536-8309116
Specification

Introduction

Wet drum magnetic separator is requisite equipment for concentration plant of iron mine, of which the performance and steadiness plays

 a vital part in the economic benefit of iron mine. Wet drum separator has always classified by granularity of feeding material. While in

practical manufacture, the required performance is different for drum separator of the same style from one procedure to another. A long

term research in different performances required by different procedure, we developed drum separator specially for different procedure.

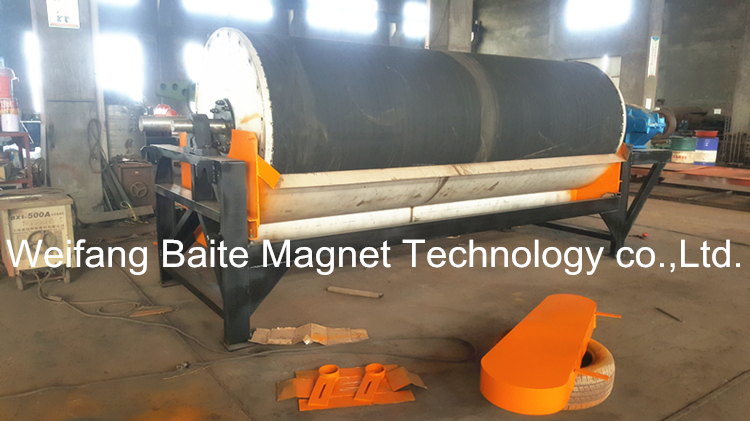

9 wet magnetic separator factory.jpg

Features

 --  Wet drum magnetic separator have high magnetic recovery and discharge.

--  The feed slurries recover the magnetic materials.

--  Available in single or multiple drum applications.

--  Recover magnetic solids in as clean a magnetic concentrate as possible.

--  Permanent magnet assembly eliminates coil burn-outs.

--  The magnet / pole elements are bolted to a mild steel shaft.

-- The drum is made from thick stainless steel for long service life.

10 drum magnetic separator factory.jpg


overal Dimension Drawing

CTS Wet Magnetic Drum Separator

Working Principle Drawing

CTS Wet Magnetic Drum Separator


CTS Wet Magnetic Drum Separator


CTS Wet Magnetic Drum Separator

Technical Parameter

NO.ModelRoller size   (mm)Roller   surface magnetic induction density(GS)CapacityDriving Power（kw）Roller rotating speed   (r/min)Weigh（kg)
Geometric center valueSweeping   and separating area average valueHighest   magnetic densityT/hm³/h
1CTS（N、B）-618600×180014001000-45002000-600015-30482.2401300
2CTS（N、B）-712750×120014001000-45002000-600015-30483351500
3CTS（N、B）-718750×180016001000-45002000-600020-28723282100
4CTS（N、B）-918900×180016001000-45002000-600025-55904282600
5CTS（N、B）-924900×240016001000-45002000-600035-701104283000
6CTS（N、B）-10211050×210016001000-45002000-600055-1101605.5223500
7CTS（N、B）-10241050×240016001000-45002000-600055-1101605.5223500
8CTS（N、B）-10301050×300016001000-45002000-600070-1202007.5224500
9CTS（N、B）-12301200×300016001000-45002000-600070-12020011225000
10CTS（N、B）-12401200×400016001000-45002000-6000100-15025015226000
11CTS（N、B）-15301500×300018001000-45002000-6000120-15022015206500
12CTS（N、B）-15401500×400018001000-45002000-6000150-18030018.5208000
Note:The strength of the magnetic field can be customized   according to customer requirements,from 800gs-10000gs.piease indicate in the   contract.
