Canada Iron Ore  HP 500 Hydraulic Cone Crusher
Canada Iron Ore  HP 500 Hydraulic Cone Crusher

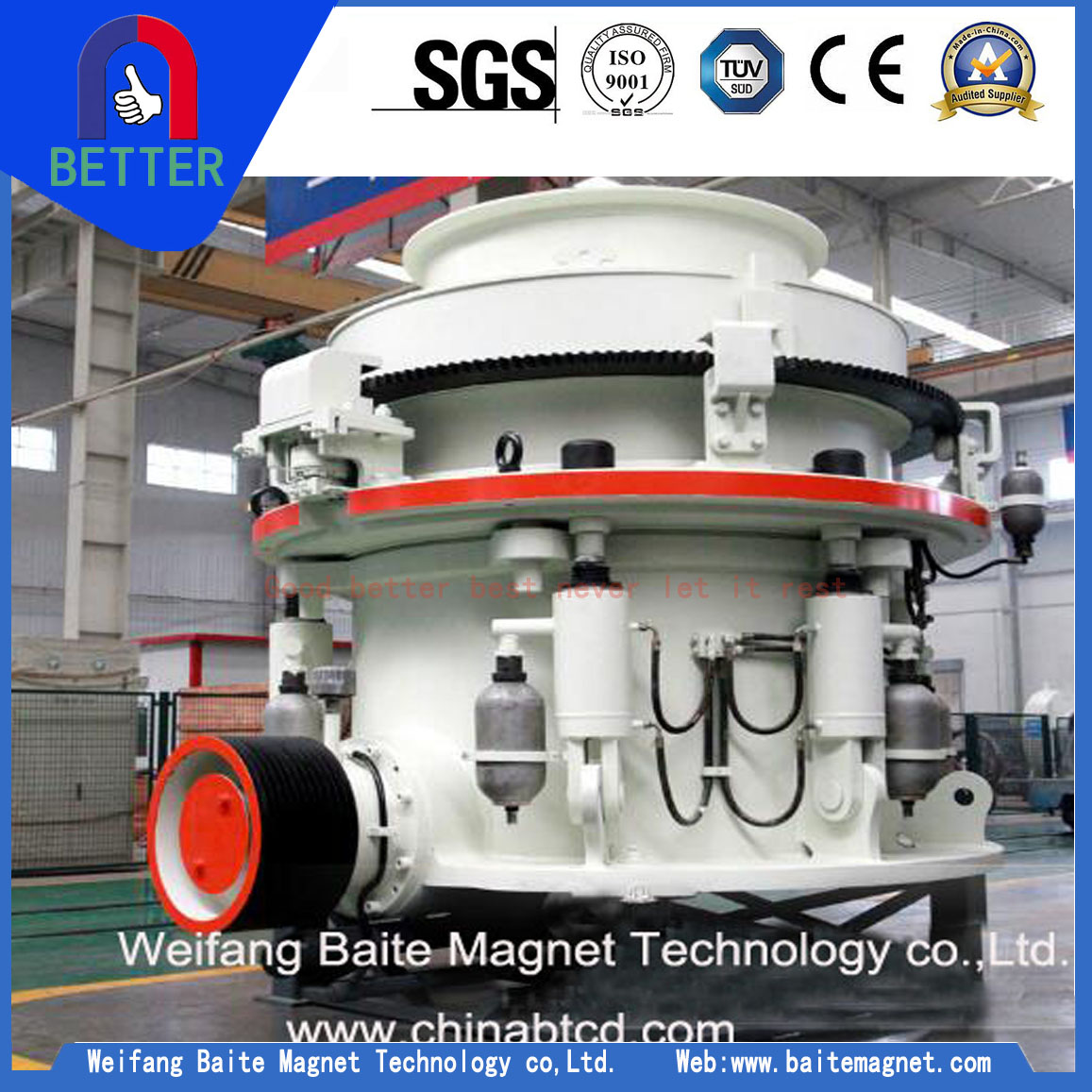

Canada Iron Ore HP 500 Hydraulic Cone Crusher
Model:HP-500
Application:Iron Ore
Hp-500 hydraulic cone crusher is designed by our company basing acdvanced technology,which passed CE certification and ISO9001.It is widely used in Mining industry,which is greatly suitable in Canada.It has a series special advantages,such as high speed, high crushing capacity,unique patented design,easy to maintain,energy saving ,stable operation etc. it is replacing the spring cone crusher in mine construction industry and update the general hydraulic cone crusher,which is the latest generation of products.
Print Product Summary
  • *Brand:Baite
  • *Color:Multi Color
  • *Voltage:220V
  • *Weight:1T
  • *Material:Stainless Steel
  • *Warranty Period:1 Year
  • *Country Of Origin:Shandong, China (Mainland)
  • *After-Sales-Service:Technical Service
  • *Dimension:Customized
  • *Price:Negotation
rechal@baitecidian.com
+86-536-8309116
Specification

product details.jpg

Model:HP Seies Hydraulic Cone Crusher

Application:Mining Industry

The Formost Advantage: High Capacity

Multi-cylinder hydraulic cone crusher is designed by our company basing advanced technology,which is gtreatly suitable for crushing medium hardness and medium above all kinds of ores and rocks, etc., such as limestone, iron ore, cobble, non-ferrous metal ore, granite, basalt, limestone, quartzite, sandstone and so on.It has a series special advantages,such as high speed, high crushing capacity,unique patented design,easy to maintain,energy saving ,stable operation etc. it is replacing the spring cone crusher in mine construction industry and update the general hydraulic cone crusher,which is the latest generation of products.

1 hydraulic cone crusher.jpg

Technical feature

1. Full hydraulic protection and adjusting device, high efficiency.

2. Simple structure, easy to operate and maintain, especially the lining board is easy to change quickly, reducing the downtime.

3. With the principle of crushing ,it is mostly cubic structure, which greatly reduces the needle-like material.

4. The latest PLC automatic control system provides reliable and secure protection.

5. Equipped with remote touch screen operation interface, display real-time working status.

2 hydraulic cone crusher.jpg

Work Principle

In the work process, the rotation of the belt wheel or coupling, the propeller shaft and the cone are used to rotate the eccentric shaft in the axis. The material from the material inlet into the crushing chamber is extruded, ground and rubbed by the mutual impact of the eccentric shaft and the wall of the mill.

6 cone crusher manufacturers China.jpg

Application Site

3 hydraulic cone crusher.jpg

Technical Data

Model

Cavity

Dia.of

Cone(mm)

Feed Opening Width(mm)

Max Size of Feed(mm)

Output Size(mm)

Capacity(t/h)

Power(kw)

Weight(t)

HP200

C1

900

210

178

22~38

160~250

160

10.1

C2

155

132

18~38

145~250

C3

130

110

14~38

120~250

F1

118

100

12~25

108~210

F2

90

76

10~25

81~210

F3

70

60

8~25

72~210

HP300

C1

1100

235

200

26~45

230~445

220

17.8

C2

211

180

20~45

200~445

C3

135

115

16~45

180~445

F1

124

105

14~25

160~220

F2

96

82

12~25

140~220

F3

70

60

8~25

120~220

HP400

C1

1400

330

280

26~51

270~630

315

25

C2

200

170

22~51

243~630

C3

152

130

16~51

210~630

F1

135

115

12~25

162~370

F2

106

90

10~25

126~370

F3

80

68

8~25

104~370

HP500

C1

1500

335

285

32~51

365~790

400

34.1

C2

229

190

25~51

328~790

C3

180

152

19~51

280~790

F1

152

130

13~25

202~450

F2

124

105

10~25

158~450

F3

88

75

8~25

122~450

HP800

C1

2000

385

326

32~51

616~1100

630

69.2

C2

350

298

25~51

522~1100

C3

280

238

16~51

380~1100

F1

160

136

13~25

328~730

F2

120

102

10~25

270~730

F3

90

77

8~25

166~730

company information.jpg

Baitemagnet factory for general users and special users design and production of various types of customized products.The company owns 3, 000 square meters of mine machinery production plant in linqu area of weifang, and each product has a separate workshop to assemble specialized production workers.Most of our products are self-developed products, combining with advanced technology at home and abroad to ensure that the industry is competitive and fully meets the technical requirements of customers.Our production capacity is strong, and we have a special production line for customers who are in urgent need of the goods.
We are full of enthusiasm, high quality service, think the customer value is the principle. Provide the spare parts and vulnerable parts of the products at the factory price.
Once the equipment failure in the process of production, the company within 24 hours to the customer's phone must come up with a clear solution, and to resume production first and then the responsibility attitude quickly solve the problem.

own company information 2.jpg
