China Manufacturer Cone Crusher For Vietnam
China Manufacturer Cone Crusher For Vietnam
China Manufacturer Cone Crusher For Vietnam
The cone crusher is suitable for the crushing of medium and above hard materials such as granite, basalt, quartzite, iron ore and pebbles. Vietnam has abundant mineral resources: manganese, titanium ore, zirconium ore, copper-nickel ore, lead-zinc ore, limestone, marble, etc. Therefore, this cone crusher meets Vietnams mines, building materials, metallurgy, gravel processing, road and bridge engineering, etc.
Print Product Summary
  • *Brand:Baite
  • *Color:Multi Color
  • *Voltage:380V
  • *Weight:1T
  • *Material:Stainless Steel
  • *Warranty Period:1 Year
  • *Country Of Origin:Shandong, China (Mainland)
  • *After-Sales-Service:Technical Service
  • *Dimension:Customized
  • *Price:Negotation
rechal@baitecidian.com
+86-536-8309116
Specification

Introduction

The cs spring cone crusher from special manufacturer is widely used in the fields of metallurgy, construction, hydroelectric project, transport, chemical industries and building materials for crushing all sorts of hard and above medium hard ores and rocks

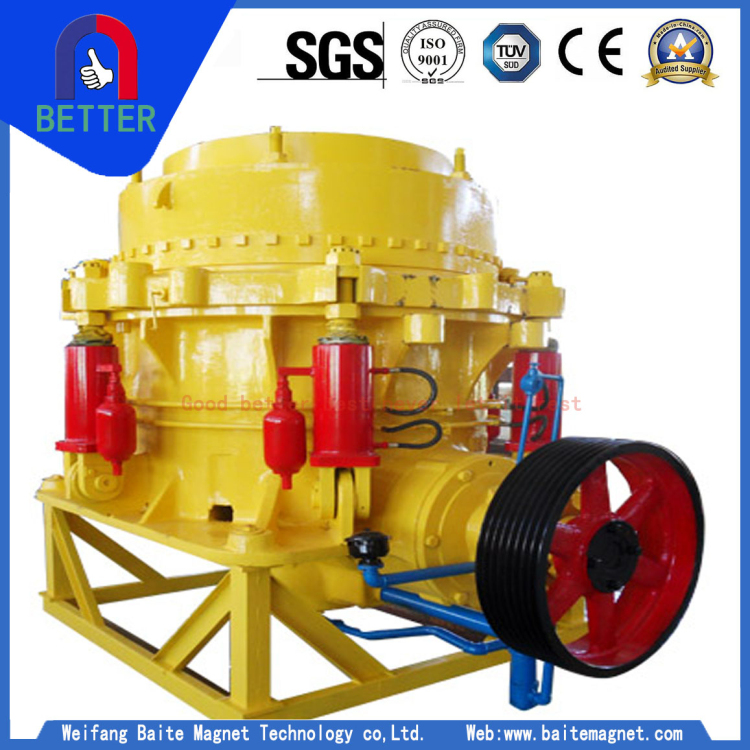

Cone crusher consist of frame, transmission device, hollow eccentric shaft, bowl-shaped bearing, crushing cone, springs and hydraulic pressure station for adjusting discharge opening.During operation, the motor drives the eccentric shaft shell to turn around through ahorizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time.

0 cone crusher exporter China.jpg

Feature

--Cone crusher has high design and manufacture quality long service life convenient repairing , lower cost . All of the maintenance work can be done easily on the top of the machine .

--New generation high performance cone with advantages of high capacity, cubicproduct shape high yield with desired fines

--Equipped with fully hydraulic system.Therefore operation is very easy; especiallytramp iron release is very quick and sensitive

--Cone crushers with different chambers are available, to meet our customers' requirements.

--As the overload protection device, spring safety device allows foreign matter and iron pieces to pass through the crushing chamber without jeopardizing machines.

5 cone crusher exporterChina.jpg

Technical Data


NO.ModelDia of cone  (mm) CavityFeed opening size(mm)Output size(mm)Mainshaft rotation speed(r/min)Driving Power(kw)Capacity (t/h)Weigh(kg)Appearance size(mm)
Closing sizeOpening size
1CSB75900 (3)Fine831029-225807545-91152821×1880×2164
2Coarse15917513-3859-163
3CSB1101200  (4)Fine1271319-3148511063-188202821×1974×2651
4Mediun15615613-38100-200
5Coarse17819119-51141-308
6CSB1601295   (41/4)Fine10913713-31485160109-181272800×2342×2668
7Mediun18821016-38132-253
8Coarse21624119-51172-349
9CSB2201650  (51/2)Fine18820916-38485220181-327553911×2870×3771
10Mediun21324122-51258-417
11Coarse24126825-64299-635
12CSB3152134  (7)Fine25327819-38435315381-7261104613×3251×4732
13Mediun30333425-51608-998
14Coarse33436931-64789-1270
NO.ModelDia of cone  (mm) CavityFeed opening size(mm)Output size(mm)Mainshaft rotation speed(r/min)Driving Power(kw)Capacity (t/h)Weigh(kg)Appearance size(mm)
Closing sizeOpening size
1CSD75914 (3)fine13413-335807527-90152821×1880×2410
2coarse33603-1627-100
3CSD1101218  (4)fine29575-1648511050-132202560×1942×2928
4medium447310-1690-145
5coarse568913-19141-181
6CSD1601295   (41/4)fine29643-1648516036-163272800×2342×2668
7medium54896-1682-163
8coarse7010510-25109-227
9CSD2201676  (51/2)fine35705-1348522090-209553917×2870×3771
10medium54896-19136-281
11coarse9813310-25190-336
12CSD3152134  (7)fine
