• *Brand:Baite
• *Color:Multi Color
• *Voltage:380V
• *Weight:1T
• *Material:Stainless Steel
• *Warranty Period:1 Year
• *Country Of Origin:Shandong, China (Mainland)
• *After-Sales-Service:Technical Service
• *Dimension:Customized
• *Price:Negotation

Introduction

Model:CXJ Series Dry Power Magnetic Separator

Application:Grain/Food Industry

The Formost Advantage:Cheap Price!Cheap Price!Cheap Price!

CXJ dry power magnetic separator is consist of rare earth permanent magnet and stainless steel tube,which it is a kind of dry power automatic iron tramp separator .This unique vertical structure avoid the materials with iron impurity the adhesion and the shortcoming of poor separation effect, It is widely used in chemical industry, ceramics, electrical porcelain, glass raw materials, refractory materials, carbon black, plastics, abrasives, non-metallic mineral, foundry sand and other industries to remove the ferromagnetic material in dry powder or dry materials, provide assurance for further improve grade material.

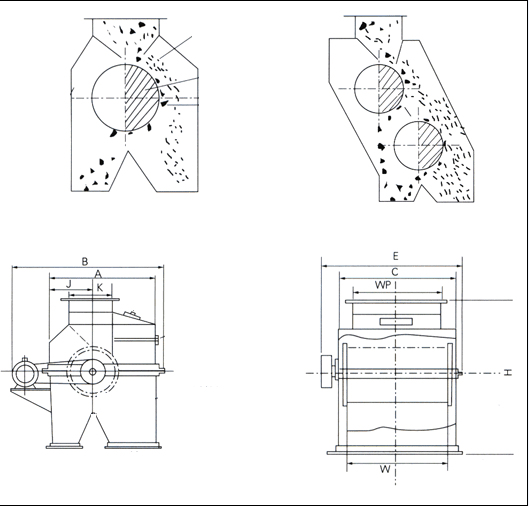

Dimension

Technical feature

1.it is the formist choice of dry power automatic iron tramp separator .

2.This unique vertical structure avoid the materials with iron impurity the adhesion and the shortcoming of poor separation effect,

3.Free maintenance,energy saving,safe and reliable operation.

4.Low failure rate and convenient maintenance.

5.Small volume, light weight, low energy consumption.

Work Principle

The internal of equipment adopts rare earth permanent magnet materials to provide a high gradient magnetic field,the outside the stainless steel tube, the iron absorption ability is very strong. When the material falls to a rotating magnetic cylinder, the ferromagnetic substance in the material is absorbed by the surface of the tube and turns with the roller. When the ferromagnetic substance is taken to the non-magnetic area, it will fall into the abandoned iron box by itself and achieve the iron purpose.

Technical Data

Application

It has a wide range of applications, such as energy saving and power saving, convenient maintenance,cement,thermal power plant,metallurgy,mining,paper making,coal industry ,food,glass,and so on industry.

Company & Customer Visiting

Weifang baite Magnet Technology Co., Ltd . is a modern joint-stock enterprise, which is producing magnetic and power equipment .The service is related to more than 10 areas ,such as electricity , coal ,building materials, metallurgy ,ports ,mining ,nonferrous metals ,power environmental production .At present ,we  have provided more than 3000 domestic customers with reliable and value-added and convenient professional equipment and programes, and at the same time ,we occupy more than 60%magnetic separation equipmemt matching share of China ball mill, crusher, iron sand ship and other production industry, Baite has firmly implemented IS09001:2000 international quality magnagement system standard and IS010012 international quality inspection system standard.

Factory Advantages & Service

Baitemagnet factory for general users and special users design and production of various types of customized products.The company owns 3, 000 square meters of mine machinery production plant in linqu area of weifang, and each product has a separate workshop to assemble specialized production workers.Most of our products are self-developed products, combining with advanced technology at home and abroad to ensure that the industry is competitive and fully meets the technical requirements of customers.Our production capacity is strong, and we have a special production line for customers who are in urgent need of the goods.

We are full of enthusiasm, high quality service, think the customer value is the principle. Provide the spare parts and vulnerable parts of the products at the factory price.
Once the equipment failure in the process of production, the company within 24 hours to the customer's phone must come up with a clear solution, and to resume production first and then the responsibility attitude quickly solve the problem.

Notes

1. Equipment name, specification, type, quantity and supporting device name and special requirements.

2. The user shall provide the center distance between the conveyor (bandwidth, belt speed), the center distance between the two bearing blocks, the grain size, temperature, iron impurity content and installation space dimensions.
