Introduction

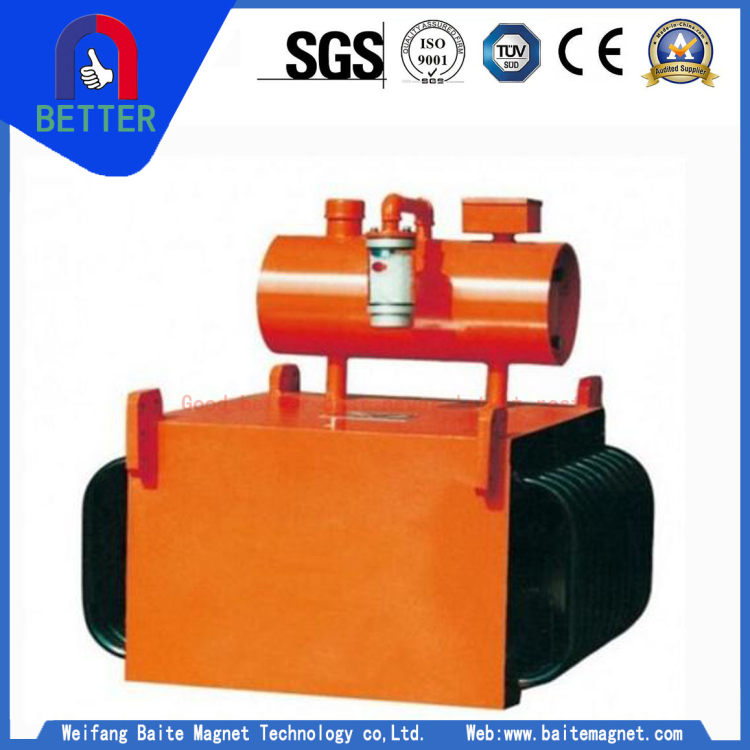

The RCDE series of oil-cooling electromagnetic iron separators adopt 90s' advanced transformer technology in their inner parts, release hotness by oil circulation in the transformer which in a wholly sealed structure. With the advantages of strong magnetic force,against rain and dust , anti corrosion,continuous working and long service life, the oil-cooling electromagnetic iron separators can protect the grinder, the crusher and so on reliably.
The main performance and indexes of the separator can meet or exceed JB/T7689-95, and the products can separate the weight of 0.1-25kg ferromagnetic substance from non-magnetic materials.
In addition to the construction featured of the Air Cooled magnets, these magnets are also provided with a pressure relief value, filling hole, drain plug and an oil level gurge. Furthermore, if increased magnet power is desired, a heat exchanger can be mounted on the magnet to accelerate the cooling of the oil. A 10-15% increase in magnet power is possible with this feature.
Product Specific Advantages
The magnetic circuit adopts the computer simulation design, the magnetic depth is large and the magnetic force is strong.

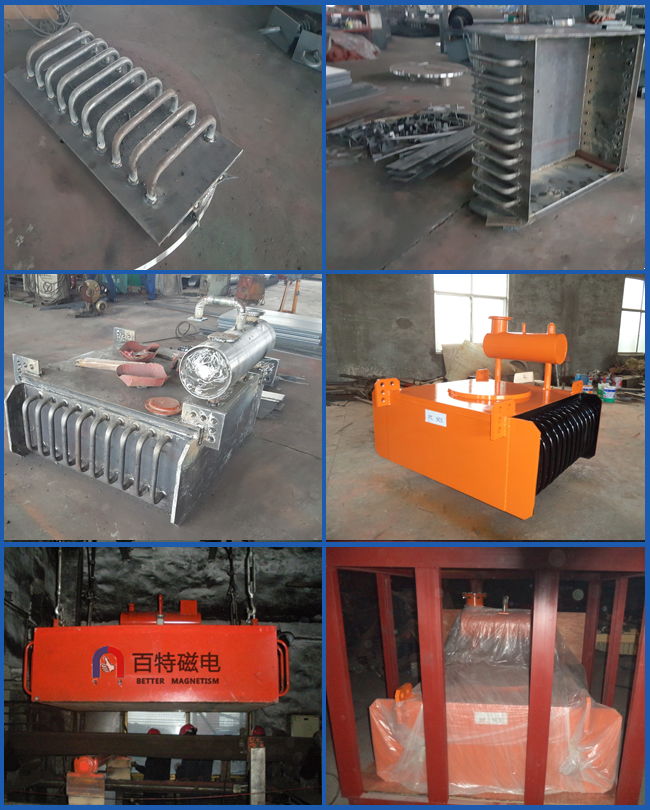

The special design of the excitation coil has the longitudinal and transverse oil channel, which is extremely beneficial to heat to the transformer oil, effectively reducing the coil's temperature.
The coil is soaked by special epoxy resin and solidified treatment technology, which improves the insulation performance of the whole machine, the whole sealing structure, dustproof, rain proof and corrosion resistance.
The corrugated heat dissipation fins, which greatly improve the heat dissipation area, effectively control the temperature rise.
It can effectively absorb the ferromagnetic materials that are mixed in non-magnetic materials of 0.1-35 kg.
The RCDE series oil-cooled electromagnetic iron separator is a product manufactured by our company using foreign advanced technology. It adopts the internal and external pipe oil circulating heat dissipation method. The whole sealing structure, its heat dissipation and the performance are superior to the domestic similar products, have continuous working temperature rise and low, magnetic force, dustproof, rain proof, corrosion resistance, long service life and so on. The continuous work of the machine has low failure rate in the bad environment, stable and reliable operation, and is the preferred iron removal equipment for many users.
Technical data

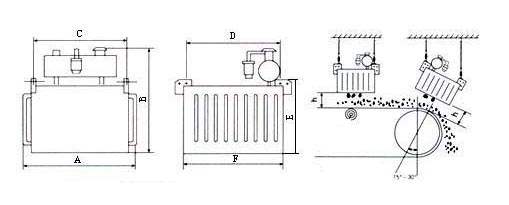

NO. | Model | Adaptive belt width (mm) | Suspension height(h=mm) | Material depth(≤mm) | Magnetic intensity(≥mt) | Belt speed(m/s) | Existing power (≤kw) | Weight(kg) | Appearance size(mm) | ||||
A | B | C | D | E | |||||||||
1 | RCDE-4 | 400 | 100 | 60 | 50 | 4.5 | 0.6 | 300 | 600 | 400 | 620 | 360 | 360 |
2 | RCDE-5 | 500 | 150 | 100 | 60 | 1 | 500 | 740 | 500 | 730 | 460 | 460 | |
3 | RCDE-6 | 600 | 175 | 125 | 60 | 1.5 | 650 | 840 | 600 | 760 | 560 | 560 | |
4 | RCDE-6.5 | 650 | 200 | 150 | 70 | 2 | 750 | 890 | 650 | 830 | 610 | 610 | |
5 | RCDE-8 | 800 | 250 | 200 | 70 | 3 | 1150 | 1024 | 800 | 850 | 760 | 760 | |
6 | RCDE-10 | 1000 | 300 | 250 | 70 | 4.5 | 1400 | 1300 | 1000 | 950 | 940 | 940 | |
7 | RCDE-12 | 1200 | 350 | 300 | 70 | 6 | 2780 | 1500 | 1200 | 1050 | 1160 | 1160 | |
8 | RCDE-14 | 1400 | 400 | 350 | 70 | 8.5 | 4200 | 1700 | 1400 | 1100 | 1360 | 1360 | |
9 | RCDE-16 | 1600 | 450 | 400 | 70 | 12.5 | 5700 | 2000 | 1600 | 1200 | 1540 | 1540 | |
10 | RCDE-18 | 1800 | 500 | 450 | 70 | 18 | 7300 | 2200 | 1800 | 1300 | 1740 | 1740 | |
Note:All themodels have T1、T2、T3design whose magnetic intensity is higher than standard.The magnetic 90mt,120mt and 150mt separately,Discard iron belt can be equipped with armor. |
Packaging & Delivery
Packaging Details:
Pack each window with aluminum foil band and PVC film to protect against scratches.
2. Use wood pallet and frames to fix the windows to avoid collision or shaking.
3. Use packing strap to fasten the pallets.
4. Load the pallets with forklifts. Put airbags between pallets to avoid collision.
Delivery Detail:
Shipped in 30 days after payment
Company Introduction
There is no better , only better.
Weifang baite Magnet Technology Co., Ltd . is a modern joint-stock enterprice, which is producing magnetic and power equipment .It is the larger magnetic equipment manufacturer of reach and development , engineering design ,production and installation ,commissioning and service.The service is related to more than 10 areas ,such as electricity , coal ,buildingt materials, metallurgy ,ports ,mining ,nonferrous metals ,power environmental production .At present ,we have provited more than 3000 domestic customers with reliable and valuble-added and convenient professionl equipment and programes, and at the same time ,we occupy more than 60%magnetic separation equipmemt matching share of China ball mill, crusher, iron sand ship and other production industry, Baite has firmly implemented IS09001.To seek value forcustomers, to seek development for enterprise. During pursuing development , our company never forget to seek value for our customers . we will design and manufacture equipments according to different requirmentsof our customers.
Factory advantages
1.Baitemagnet factory for general users and special users design and production of various types of customized products, which covers the iron remover, crusher, ball mill, vacuum filter, metal detectors, grinding equipment, products in the field of pumping sand equipment more than 30.

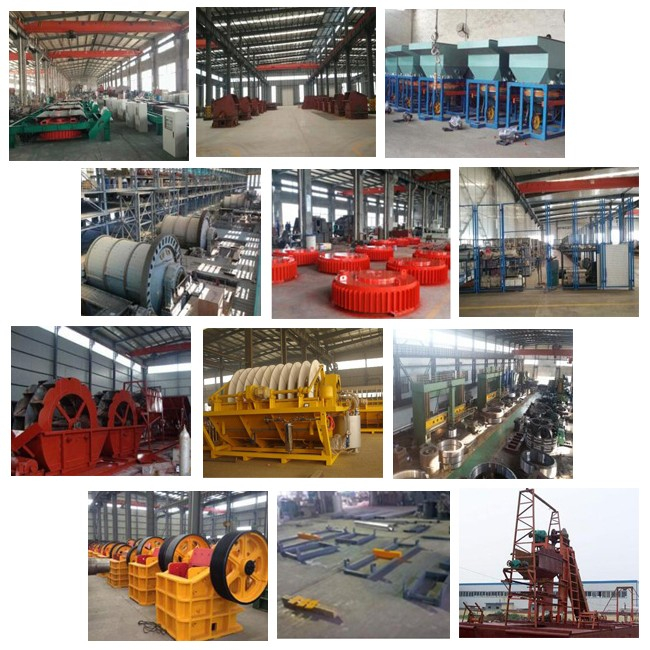

2.The scale of production:The company owns 3, 000 square meters of mine machinery production plant in linqu area of weifang, and each product has a separate workshop to assemble specialized production workers.
