Dry Power Magnetic Separator For Thailand
Dry Power Magnetic Separator For Thailand
Dry Power Magnetic Separator For Thailand
RCDD series dry power magnetic sepaartor is the first choice for dry power industry, whichis a patent product was designed by our company used high technology.On that basis of the RCDB series electric magnetic separator separator,it increases a set of automatic removing iron euipment.It is suitable for all kinds of harsh environment.It is widely used in Thailand,such as thermal power plant,mine,mining,building materials,coal,feed and chemical industries.
Print Product Summary
  • *Brand:Baite
  • *Color:Multi Color
  • *Voltage:22V
  • *Weight:1T
  • *Material:Stainless Steel
  • *Warranty Period:1 Year
  • *Country Of Origin:Shandong, China (Mainland)
  • *After-Sales-Service:Technical Service
  • *Dimension:Customized
  • *Price:Negotation
rechal@baitecidian.com
+86-536-8309116
Specification

Introduction

RCDD series dry power magnetic sepaartor is the first choice for dry power industry, whichis a patent product was designed by our company used high technology.On that basis of  the RCDB series electric magnetic separator separator,it increases a set of automatic removing iron euipment.It is suitable for all kinds of harsh environment.

1 dry power magnetic separator1.jpg

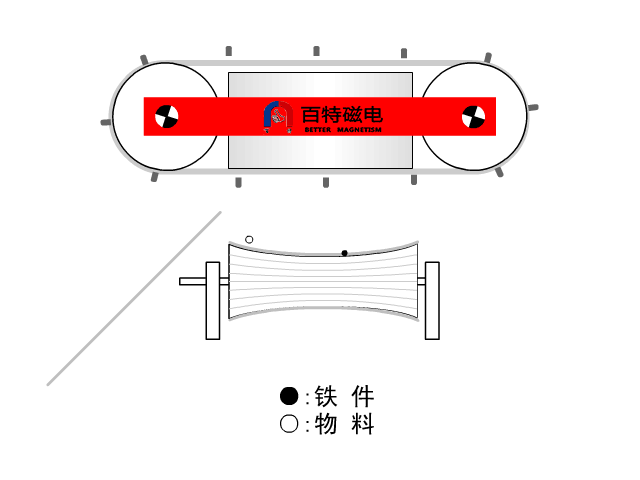

work principle picture.gif

Technical feature

Sustain and reliable magnetic field,with strong magnetic force.

1.Compact structure,light weight and easy to maintain.

2.It is a kind of automatic type for removing iron equipment.

3.Featuring with dust and rain-protection,wearing erosion,it can run in the harsh environment.

4.Low energy consumption,reliable performance.

1 magnetic separator359140.jpg

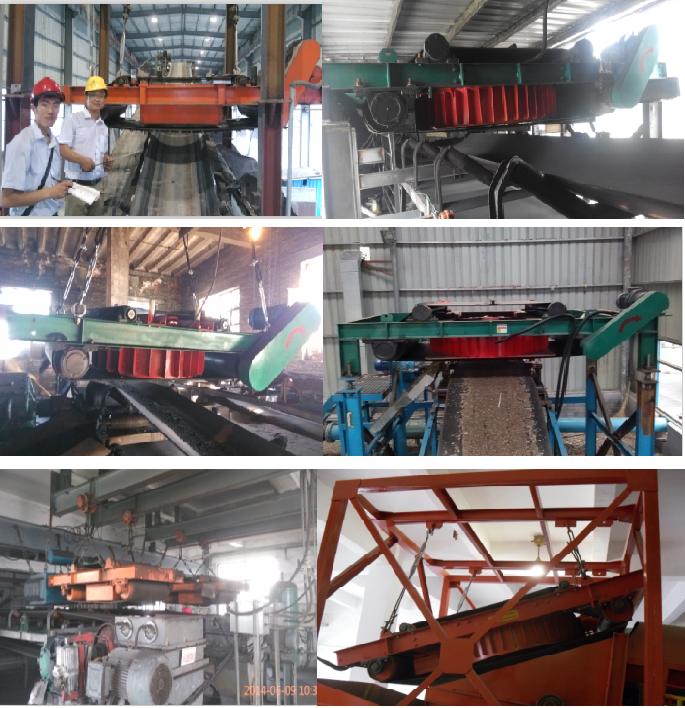

2 magnetic separator899328.jpg

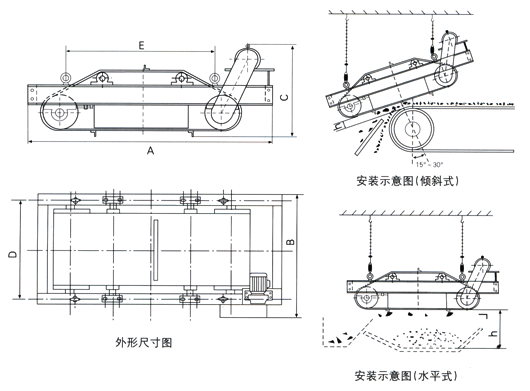

Technical data

NO.Modelconveyor belt width  (mm)Suspension height(h=mm)Material depth(≤mm)Magnetic intensity(≥mt)Existing power (≤kw)Belt speed(m/s)Working systemDriving Power(kw)Weigh(kg)Appearance size(mm)
ABCDE
1RCDD-5500150100601.04.5Continuous1.5950202010407758531000
2RCDD-6600180130601.81.51380214011008009101100
3RCDD-6.5650200150702.01.51490227511908209881250
4RCDD-8800250200703.62.217702540148086512871350
5RCDD-101000300250705.03.023802750163594014201400
6RCDD-121200350300706.84.0317030001800101015801700
7RCDD-141400400350709.05.5480035002050105018002000
8RCDD-1616004504007013.07.5630039002450118022002350
9RCDD-1818005004508018.07.5780044002850129026002800


Application

It is widely used in coal,thermal power,building materials,mining,abrasive tools,refractory materials,non-metallic minerals,carbon black,food,feed and chemical industries.

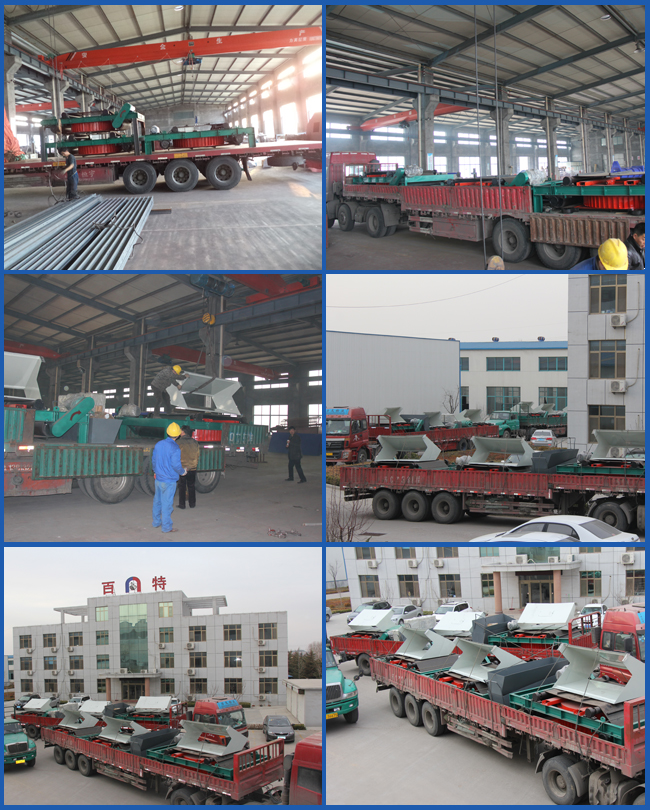

3.magnetic separator473241.jpg


 Company & Customer Visiting

There is no better , only better.
Weifang baite Magnet Technology Co., Ltd . is a modern joint-stock enterprise, which is producing magnetic and power equipment .The service is related to more than 10 areas ,such as electricity , coal ,building materials, metallurgy ,ports ,mining ,nonferrous metals ,power environmental production .At present ,we  have provided more than 3000 domestic customers with reliable and value-added and convenient professional equipment and programes, and at the same time ,we occupy more than 60%magnetic separation equipmemt matching share of China ball mill, crusher, iron sand ship and other production industry, Baite has firmly implemented IS09001:2000 international quality magnagement system standard and IS010012 international quality inspection system standard.

new customer visiting.jpg


Factory Advantages & Service

Baitemagnet factory for general users and special users design and production of various types of customized products.The company owns 3, 000 square meters of mine machinery production plant in linqu area of weifang, and each product has a separate workshop to assemble specialized production workers.Most of our products are self-developed products, combining with advanced technology at home and abroad to ensure that the industry is competitive and fully meets the technical requirements of customers.Our production capacity is strong, and we have a special production line for customers who are in urgent need of the goods.

We are full of enthusiasm, high quality service, think the customer value is the principle.Provide the spare parts and vulnerable parts of the products at the factory price.
Once the equipment failure in the process of production, the company within 24 hours to the customer's phone must come up with a clear solution, and to resume production first and then the responsibility attitude quickly solve the problem.

new work factory.jpg
