High Effeciency GZ Series Electromagnetic Vibrating Feeder From China With Low Price

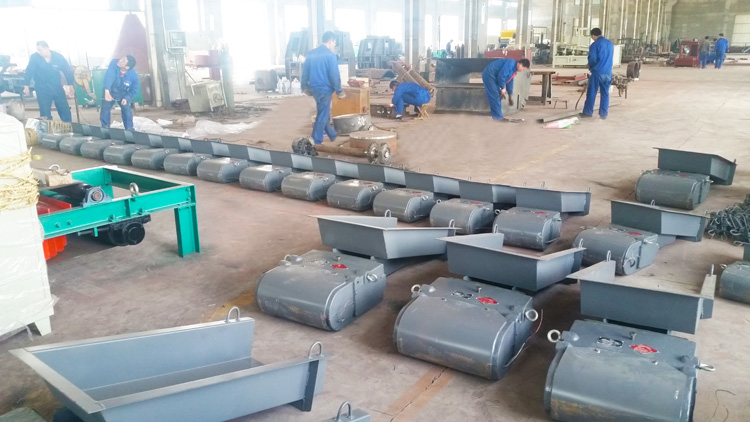

Model:GZ Series Electromagnetic Vibrating Feeder
Electromagnetic vibrating feeder is used in the material evenly from the storage bin or other storage device or quantitative supply to the material equipment, practice routine automation is the necessary equipment type open and closed two. According to the installation can be divided into several hanging and desktop, etc. Electromagnetic vibration feeder structure is simple, easy to operate, no need to be embellish, low power consumption; The amount of ore can be adjusted evenly; So it has been widely used. Generally used for loose material. According to equipment performance requirements, configuration design should try to reduce the material to the pressure of the tub, according to the requirements of factory, warehouse material effective PaiKou shall not be more than a quarter of the groove width, material flow control in 6 to 18 m/min to quantificationally the larger material, at the bottom of the silo discharging place should be set high enough to block board; In order not to affect the performance of the feeder, the boom plate shall not be fastened to the tank.
Electromagnetic vibrating feeder is used in the material evenly from the storage bin or other storage device or quantitative supply to the material equipment, practice routine automation is the necessary equipment type open and closed two. According to the installation can be divided into several hanging and desktop, etc. Electromagnetic vibration feeder structure is simple, easy to operate, no need to be embellish, low power consumption; The amount of ore can be adjusted evenly; So it has been widely used. Generally used for loose material. According to equipment performance requirements, configuration design should try to reduce the material to the pressure of the tub, according to the requirements of factory, warehouse material effective PaiKou shall not be more than a quarter of the groove width, material flow control in 6 to 18 m/min to quantificationally the larger material, at the bottom of the silo discharging place should be set high enough to block board; In order not to affect the performance of the feeder, the boom plate shall not be fastened to the tank.
- *Brand:Baite
- *Color:Multi Color
- *Voltage:220
- *Weight:1T
- *Material:Stainless Steel
- *Warranty Period:1 Year
- *Country Of Origin:Shandong, China (Mainland)
- *After-Sales-Service:Technical Service
- *Dimension:Customized
- *Price:Negotation
rechal@baitecidian.com
+86-536-8309116
Specification
Introduction
Electromagnetic vibrating feeder is used in the material evenly from the storage bin or other storage device or quantitative supply to the material equipment, practice routine automation is the necessary equipment type open and closed two. According to the installation can be divided into several hanging and desktop, etc. Electromagnetic vibration feeder structure is simple, easy to operate, no need to be embellish, low power consumption; The amount of ore can be adjusted evenly; So it has been widely used. Generally used for loose material. According to equipment performance requirements, configuration design should try to reduce the material to the pressure of the tub, according to the requirements of factory, warehouse material effective PaiKou shall not be more than a quarter of the groove width, material flow control in 6 to 18 m/min to quantificationally the larger material, at the bottom of the silo discharging place should be set high enough to block board; In order not to affect the performance of the feeder, the boom plate shall not be fastened to the tank.
Application
A quantitative or continuous supply for block, granular, or powdery materials. It is widely used in mining, metallurgy, coal, electric power, chemical industry, food, glass, refractories and other industries.
Feature
In this paper, the semi-wave rectifying circuit is adopted for the electromechanical control of the electromagnetic vibration feeding, which can be used for automatic control of production process and automation of production process.
No rotating parts, no lubrication, simple structure and convenient maintenance.
The material of the electromagnetic vibration feeding machine is micro - throwing motion, and the material slot is less worn.
The electromagnetic vibration feeder can be made of suitable plates and can be used for conveying high temperature wear and corrosive materials.
Technical Data
| Type | Model | Capacity (t/h) | Feed partrcle size (≤mm) | Double amplitude (mm) | Power supply voltage (V) | Current(A) | Power（kw） | Supporting control and model | Weight(kg) | ||
| 0° | -10° | Working current | Said the current | ||||||||
| Basic model | GZ0 | 5 | 7 | 50 | 1.75 | 220 | 1.34 | 1 | 0.06 | XK35 | 75 |
| GZ1 | 10 | 14 | 50 | 3.0 | 2.3 | 0.15 | 146 | ||||
| GZ2 | 25 | 35 | 75 | 4.58 | 3.8 | 0.25 | 217 | ||||
| GZ3 | 35 | 50 | 85 | 6.8 | 5.5 | 0.35 | 300 | ||||
| GZ4 | 50 | 70 | 100 | 8.4 | 7 | 0.45 | 412 | ||||
| GZ5 | 80 | 120 | 150 | 12.7 | 10.6 | 0.65 | 656 | ||||
| GZ6 | 120 | 180 | 150 | 15 | 12 | 1.1 | 950 | ||||
| GZ7 | 150 | 210 | 180 | 16.4 | 13.3 | 1.5 | 1212 | ||||
| GZ8 | 250 | 350 | 200 | 24.6 | 20 | 3.0 | 1685 | ||||
| Sealed | GZ0F | 4 | 5.6 | 40 | 1.34 | 1 | 0.06 | 77 | |||
| GZ1F | 8 | 11.2 | 40 | 3 | 2.3 | 0.15 | 154 | ||||
| GZ2F | 20 | 28 | 40 | 4.58 | 3.8 | 0.25 | 246 | ||||
| GZ3F | 30 | 40 | 50 | 6.8 | 5.5 | 0.35 | 320 | ||||
| GZ4F | 40 | 56 | 60 | 8.4 | 7 | 0.45 | 360 | ||||
| GZ5F | 60 | 92 | 80 | 12.7 | 10.6 | 0.65 | 668 | ||||
| GZ6F | 95 | 120 | 80 | 15 | 12 | 1.1 | 1103 | ||||
| GZ7F | 120 | 168 | 80 | 16.4 | 13.3 | 1.5 | 1278 | ||||
| GZ8F | 150 | 200 | 100 | 18.2 | 15.5 | 3 | 1780 | ||||
