Introduction
Introduction

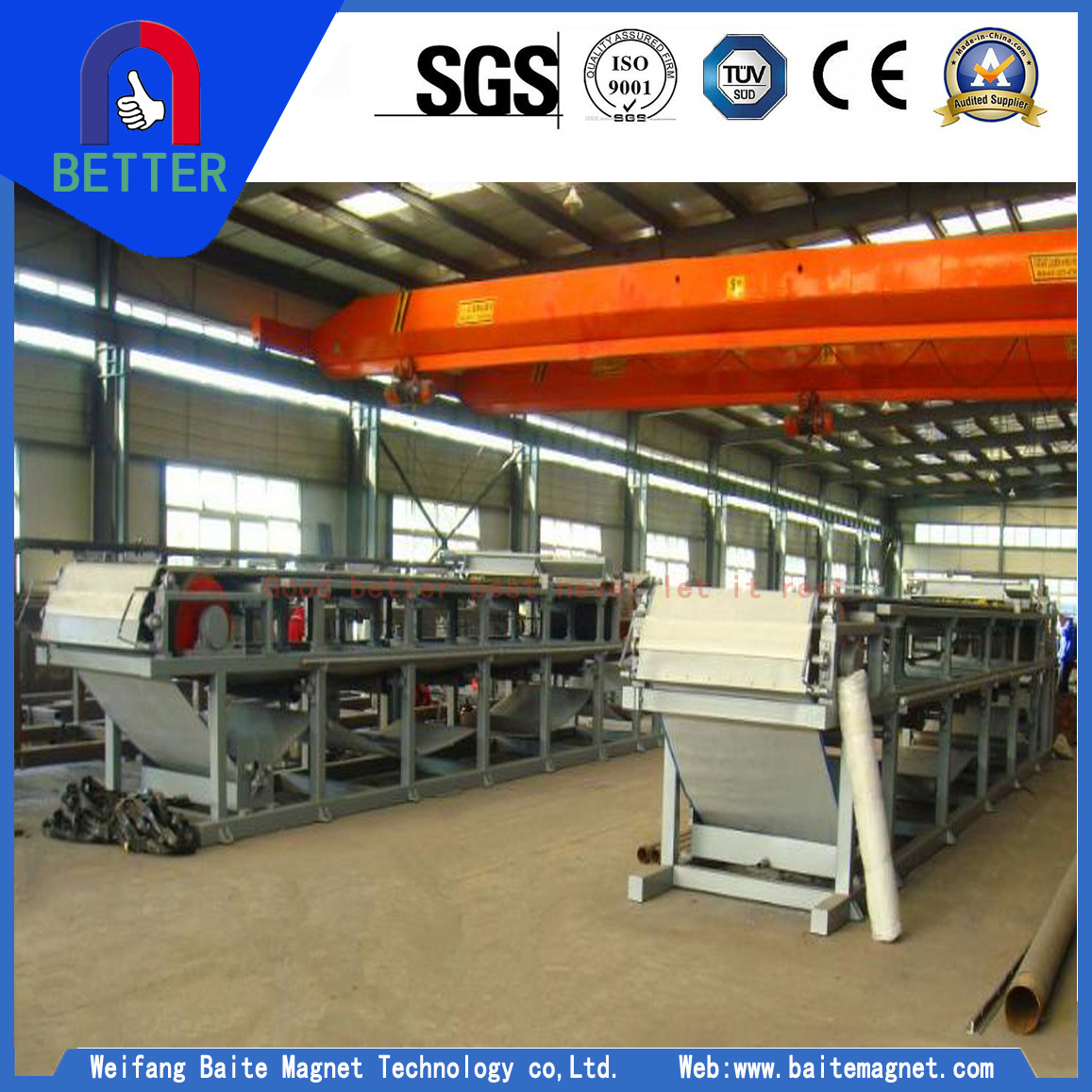

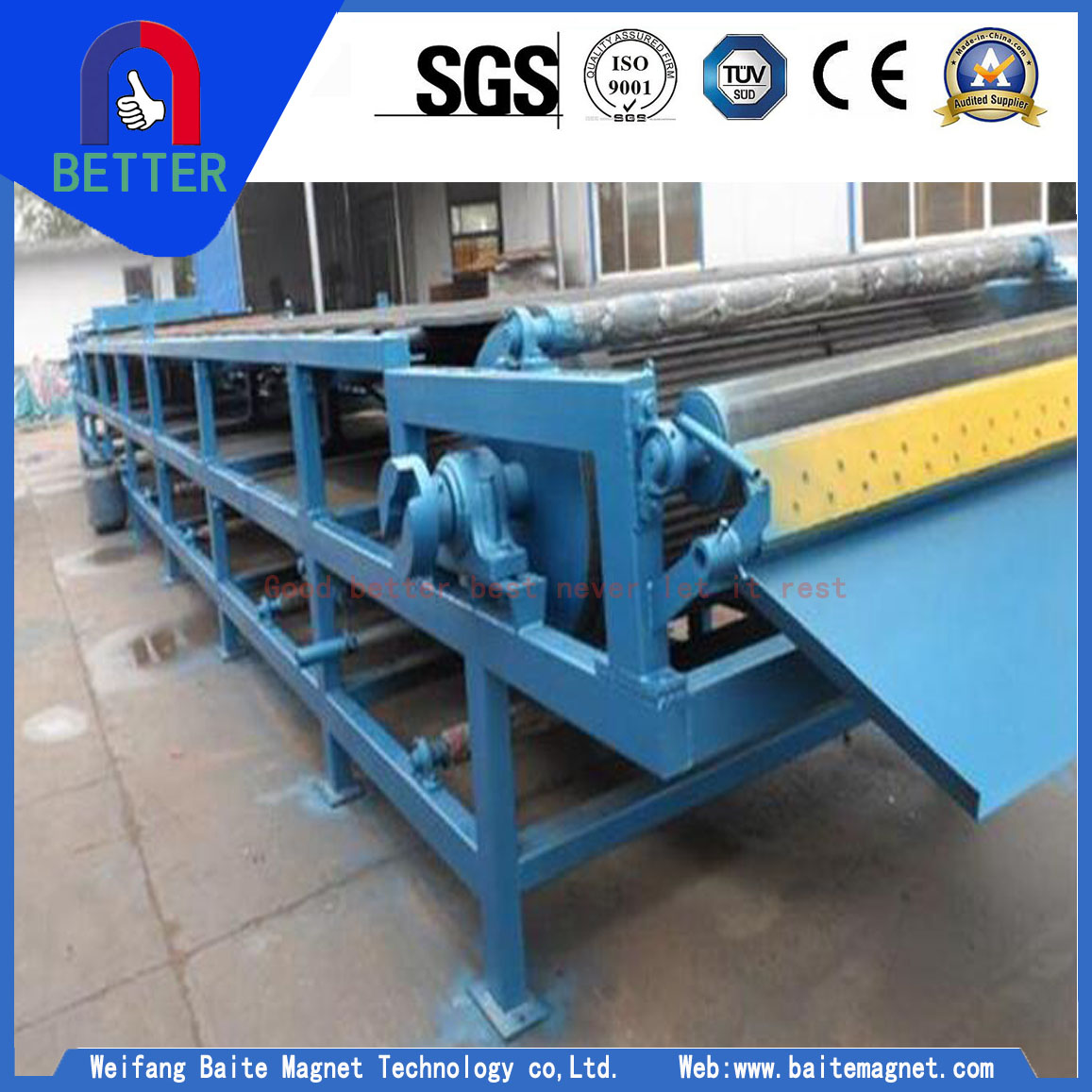

WG vacuum belt filter is a high quality equipment designed for Europe and America. The equipment adopts a fixed vacuum box, the tape is sliding on the vacuum box, the vacuum box and the belt form the structure of the movement seal, and the vacuum negative pressure is the driving force to realize the separation of the solid liquid. On the structure, filtering section along the length of horizontal direction to decorate, can complete filter, filter cake washing, continuous automatic slag discharge, filter cloth regeneration process operations, and mother liquor with the filter cake washing liquid can be segmented collection. It has the advantages of high filtration efficiency, large production capacity, good washing efficiency, low water filter cake, flexible operation and simple maintenance.
Product advantage
1. Modular design of overall structure, flexible assembly, easy to transport and installation.
2. High degree of automation; The material, filtration, washing, suction, discharge and cloth cleaning are all continuous automation, improve production efficiency, reduce operating costs, greatly reduce the labor intensity of workers and improve the working environment.
3. Quick filtration rate; The material passes through the precipitation area, the large particle is at the bottom, the small particles in the upper layer, the filter cake structure is reasonable, filtrate is permeable resistance small, can undertake thin layer quick filtration.
4. Convenient filtration process; Filter cake thickness and water wash. Reverse flow washing series, vacuum degree, filter speed arbitrary adjustment, to achieve the best filtering effect.
5. Good washing effect; Can realize multi-level horizontal or countercurrent washing, washing evenly and thoroughly, the mother liquid and cleaning liquid can be collected and reused separately according to the process.
6. The control system USES DCS technology, which can realize the on-site and remote automatic control.

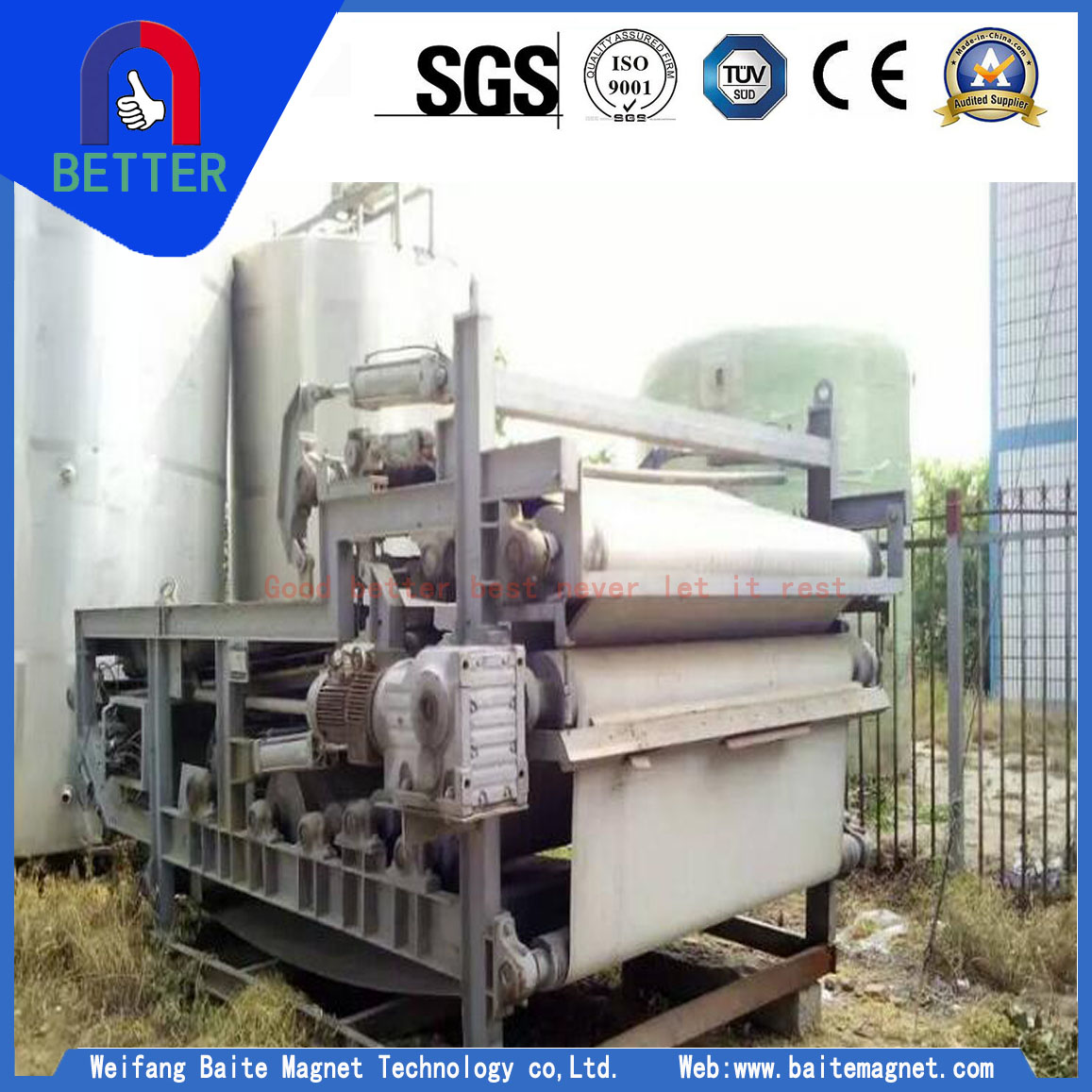

The working principle
WG dry line of vacuum belt filters using the fixed vacuum box and adhesive tape in sliding vacuum box, a motion between vacuum box and adhesive tape sealing structure, vacuum negative pressure as the driving force to realize solid-liquid separation equipment. On the structure, filtering section along the length of horizontal direction to decorate, can complete filter, filter cake washing, continuous automatic slag discharge, filter cloth regeneration process operations, and mother liquor with the filter cake washing liquid can be segmented collection.
Technical Data
Filter width (mm) | 2000m | 2500m | 3200m | ||||||
The filter length(mm) | The filter area(㎡) | Weight(kg) | Appearance size (mm) | The filter area(㎡) | Weight(kg) | Appearance size (mm) | The filter area(㎡) | Weight(kg) | Appearance size (mm) |
12000 | 24 | 18200 | 16300×2800×2060 | 30 | 25300 | 17400×3350×2365 | 38.4 | 32900 | 17400×4050×2565 |
14000 | 28 | 18700 | 18300×2800×2060 | 35 | 27400 | 19400×3350×2365 | 45 | 35300 | 19400×4050×2565 |
16000 | 32 | 20200 | 20300×2800×2060 | 40 | 29500 | 21400×3350×2365 | 51.2 | 37700 | 24100×4050×2565 |
18000 | 36 | 21700 | 22300×2800×2060 | 45 | 31600 | 23400×3350×2365 | 58 | 40100 | 23400×4050×2565 |
20000 | 40 | 28000 | 24300×2800×2060 | 50 | 38600 | 25400×3350×2565 | 64 | 42500 | 25400×4050×2565 |
22000 | 44 | 30000 | 26300×2800×2060 | 55 | 40900 | 27400×3350×2565 | 70.4 | 51000 | 27700×4050×3200 |
24000 | 48 | 32000 | 28300×2800×2060 | 60 | 43200 | 29400×3350×2565 | 77 | 53500 | 29700×4050×3200 |
26000 | 52 | 34000 | 30300×2800×2060 | 65 | 45000 | 31400×3350×2565 | 83.2 | 56000 | 31700×4050×3200 |
28000 | 56 | 36000 | 33400×2850×2360 | 70 | 47800 | 33400×3350×2565 | 89.6 | 58500 | 33700×4050×3200 |
30000 | 60 | 38000 | 35400×2850×2360 | 75 | 51100 | 35400×3350×2565 | 96 | 61000 | 35700×4050×3200 |
Packaging & Delivery
Packaging Details:
Pack each window with aluminum foil band and PVC film to protect against scratches.
2. Use wood pallet and frames to fix the windows to avoid collision or shaking.
3. Use packing strap to fasten the pallets.
4. Load the pallets with forklifts. Put airbags between pallets to avoid collision.
Delivery Detail:
Shipped in 30 days after payment
Company Introduction
There is no better , only better.
Weifang baite Magnet Technology Co., Ltd . is a modern joint-stock enterprice, which is producing magnetic and power equipment .It is the larger magnetic equipment manufacturer of reach and development , engineering design ,production and installation ,commissioning and service.The service is related to more than 10 areas ,such as electricity , coal ,buildingt materials, metallurgy ,ports ,mining ,nonferrous metals ,power environmental production .At present ,we have provited more than 3000 domestic customers with reliable and valuble-added and convenient professionl equipment and programes, and at the same time ,we occupy more than 60%magnetic separation equipmemt matching share of China ball mill, crusher, iron sand ship and other production industry, Baite has firmly implemented IS09001.To seek value forcustomers, to seek development for enterprise. During pursuing development , our company never forget to seek value for our customers . we will design and manufacture equipments according to different requirmentsof our customers.
Factory advantages
1.Baitemagnet factory for general users and special users design and production of various types of customized products, which covers the iron remover, crusher, ball mill, vacuum filter, metal detectors, grinding equipment, products in the field of pumping sand equipment more than 30.

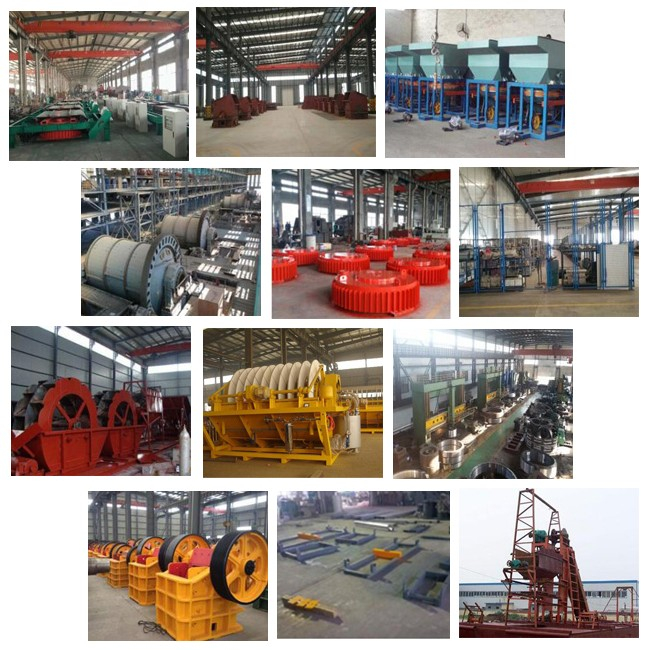

2.The scale of production:The company owns 3, 000 square meters of mine machinery production plant in linqu area of weifang, and each product has a separate workshop to assemble specialized production workers.
