• *Brand:Baite
• *Color:Multi Color
• *Voltage:22V
• *Weight:1T
• *Material:Stainless Steel
• *Warranty Period:1 Year
• *Country Of Origin:Shandong, China (Mainland)
• *After-Sales-Service:Technical Service
• *Dimension:Customized
• *Price:Negotation

Introduction

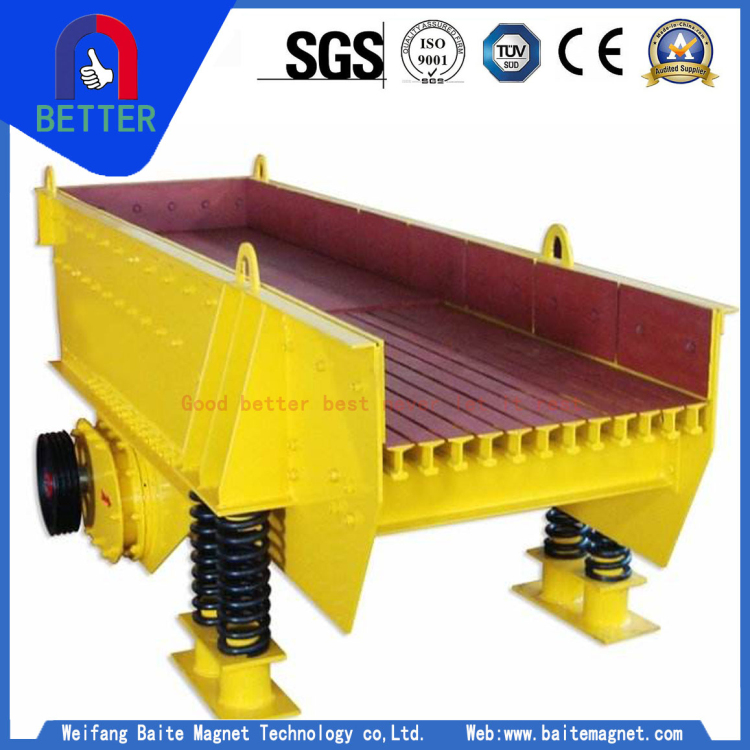

Vibrating Feeder adopts the vibrating motor to produce vibration force. It is used to feed materials into primary crusher evenly, and meanwhile because of the grit-shaped screen, it can screen away soil contained in the raw material, and increase the capacity of primary crushing. It is suitable to feed material into primary crusher in hydroelectric field, building material and mining industry.

Feature

-- Vibrating feeder enjoys simple structure, stable vibrating, even feeding, good continuous performance, adjustable excitation force, etc. Its flow rate can be conveniently changed and controlled.

--  It adopts eccentric block as the excitation source and features low noise, low energy consumption, good adjusting performance, and no material splashing.

--  Closed type vibrating feeder can prevent the pollution of dust.

-- The pressure caused by the material to the groove should be reduced to the greatest extend.

    The effective discharge opening should be smaller than the one quarter of the groove width.

    The flow rate should be controlled within 6-18m/min.

-- For feeding materials with a large quantity, a fender with enough height should be installed at the outlet. This fender should not be fixed to the feeder since it will affect the performance of the machine.6. For smooth charging, the best discharging angle is 55°-65°.

Technical Data
