• *Brand:Baite
• *Color:Multi Color
• *Voltage:22V
• *Weight:1T
• *Material:Stainless Steel
• *Warranty Period:1 Year
• *Country Of Origin:Shandong, China (Mainland)
• *After-Sales-Service:Technical Service
• *Dimension:Customized
• *Price:Negotation

Introduction

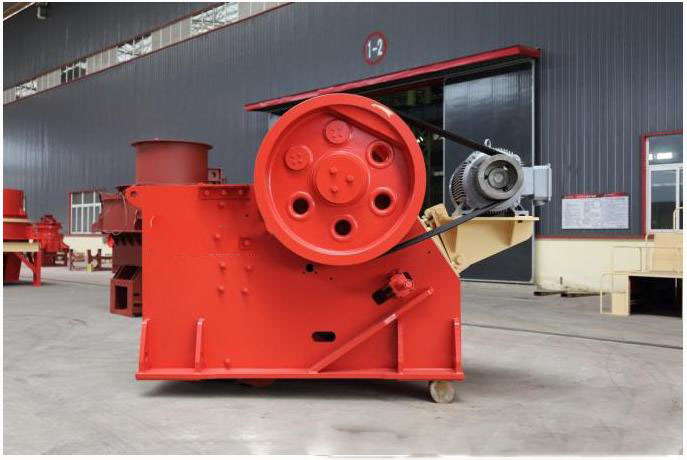

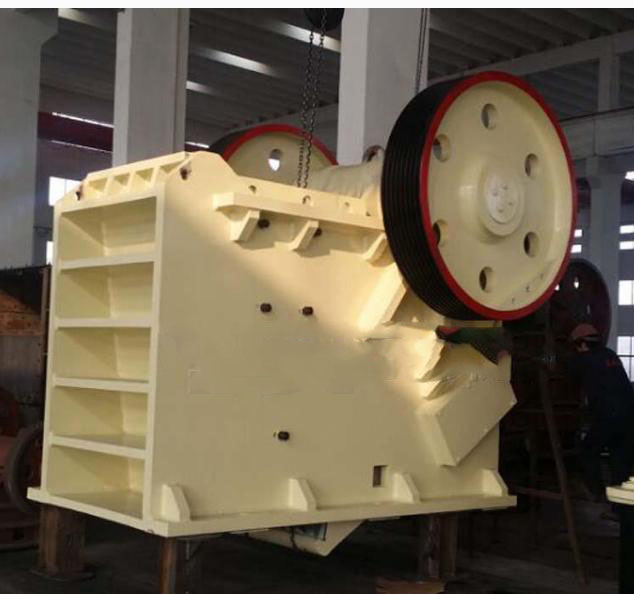

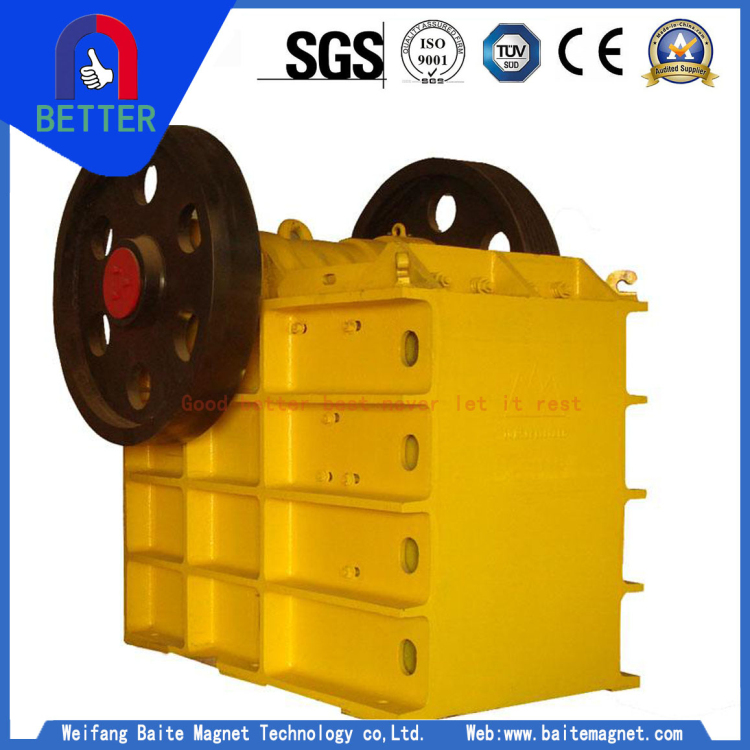

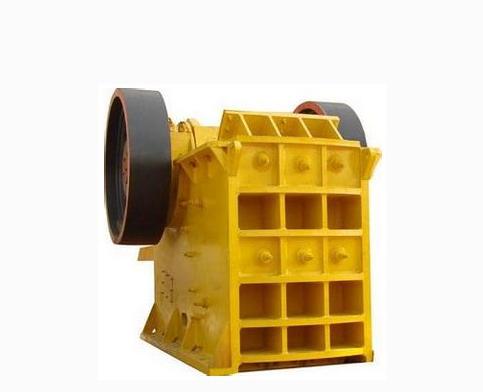

This broken machine machine is mainly composed of jaw head guard plate, moving jaw, jaw plate, side plate and frame, host, the base (fine broken without), bracket, spring, knee pad, discharging mouth adjusting mechanism, eccentric shaft, bearing, pulley (cog) and start the system and locking device and lubrication system, etc.
Frame with steel plate welded together. Fixed jaw by fluctuation period of fixed jaw and middle jaw compositions (75 above), pressure iron through fixed jaw by the set screw bolt fixed on the wall in front of the frame; Dynamic jaw plate by moving jaw weight fixed on the jaw.
Bracket in addition to supporting the jaw head to make it in a certain trajectory running outside, when crushing cavity into the can't broken up alien invaders and make the load protection; Through their own fault, to cut off the load, protect the rest of the parts from being damaged.
Adjustment device adopts the wedge type, wedge can move around in the rack back wall chute; Through the rotation of the rotating adjusting device nut to drive wedge around mobile, so as to adjust the size of the discharge port.
Spring rod, spring and function lock locking device, to tighten the jaw and prevent knee from falling out, make broken function normal operation. Crusher shoulds not be too great spring pressure at work, as long as it can eliminate impact between the bracket and the bracket adjust seat sound.

Feature

--.Energy-Saving about 20%~35%.
--Most professional jaw crusher.
--Stable performance
--Most Competitive Price
