ISO Approved Wholesale Magnetic Separator For Gambia
ISO Approved Wholesale Magnetic Separator For Gambia
ISO Approved Wholesale Magnetic Separator For Gambia

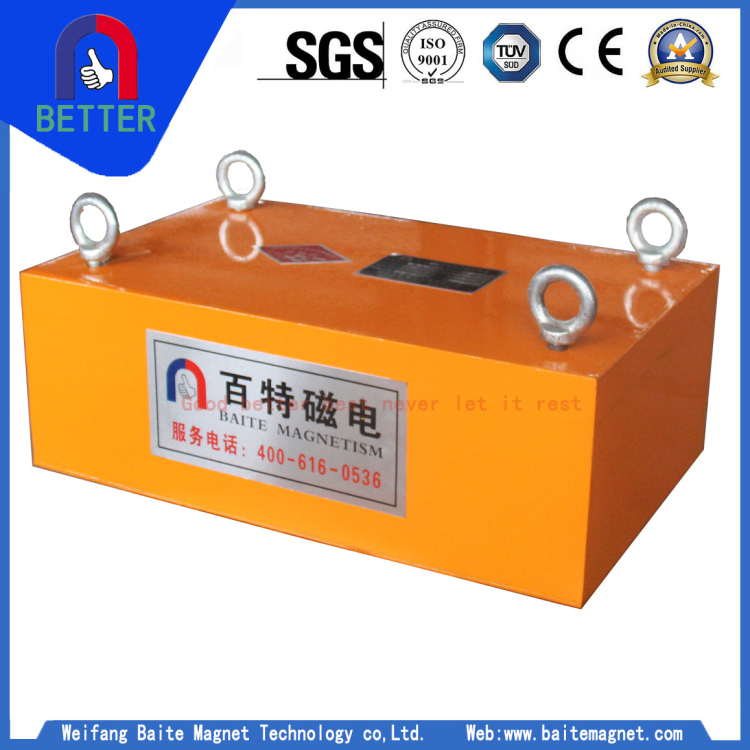

Model:RCYB-5A Suspension Magnetic Separator
We are the professional manufacturer and exporter from China,We supply all kinds of mining equipments ,the dimension is strictly according to different requirement of users.such as magnetic separator,crusher,vibration feeder, conveyor and so on basing strong maket position and advanced technology .All of them are strictly according to ISO9001 and CE certification.This permanent magnetic separator is pretty much used to separate the magnetic particals or eliminate the wast magnetic from non-magnetic mineral.It is suitable for Liberia .The weight loss max 3% after 10 years for permanent magnet.It is also suitable for foodstuff, ceramics,cement,chemical,feed ,steel,glass industry .We have experience to handle the OEM orders.Welcome to visit our website.
Print Product Summary
  • *Brand:Baite
  • *Color:Multi Color
  • *Voltage:380V
  • *Weight:1T
  • *Material:Stainless Steel
  • *Warranty Period:1 Year
  • *Country Of Origin:Shandong, China (Mainland)
  • *After-Sales-Service:Technical Service
  • *Dimension:Customized
  • *Price:Negotation
rechal@baitecidian.com
+86-536-8309116
Specification

product details.jpg

RCYB Series Suspension magnetic separator has strong magnetic field intensity.It was made up of high remanence and high coercivity rare earth permanent magnet NdFeB material.ensure the magnetism can not be affected by environmental temperature and mechanical vibration. High intensity magnetic ensured that the magnetism can not be affected by environmental temperature and mechanical vibration.The surface of magnetic materials is electroplated and treated with strict anti-corrosion during assembly.The unique magnetic circuit was designed by advanced computer simulation means and patented technology.the equipment has good advantages of  high magnetic field intensity,no energy consumption and a long service life. It is easy to install and use without maintenance.

1 permanent magnetic separator.jpg

Technical Features

1.It was designed by our company ,strong magnetic field intensity.
2.Simple installation,convenient to operate ,high efficiency and stable performance ,free maintenance.
3.It is used to  remove 0.1-30kg of ferromagnetic material which mixed in the raw material as it passes through the powerful magnetic field.
4.the permanent magnetic field usage is  more than 10 years.
5.The technical specifications of the product accord with standard of JB/T8711-1998 .

3 permanent magnetic separator.jpg

5 industrials separators.jpg

6 ore separator.jpg

Technical Parameters

NO.

Model

Model

Adaptive belt width  (mm)

Suspension height(h=mm)

Material depth(≤mm)

Belt speed(m/s)

Weight(kg)

Appearance size(mm)

Magnetic core type

L

D

H

1

High intensity type

RCYB-4A

400

120

80

4.5

45

400

250

120

Ferrite

2

RCYB-5A

500

130

100

66

500

300

130

3

RCYB-6A

600

150

130

97

600

350

150

4

RCYB-8A

800

200

150

248

800

500

170

5

RCYB-10A

1000

230

200

390

1000

600

190

6

Light type

RCYB-4-1

400

100

60

75

400

250

140

Rare-earth magnet

7

RCYB-5-1

500

120

80

95

500

270

160

8

RCYB-6-1

600

140

100

158

600

350

180

9

RCYB-8-1

800

180

140

480

800

600

260

10

Standard

RCYB-4

400

150

100

115

400

300

230

Built-up magnet

11

RCYB-5

500

175

120

206

500

300

260

12

RCYB-6

600

180

140

295

600

400

280

13

RCYB-6.5

650

200

160

450

650

400

300

14

RCYB-8

800

250

200

680

800

600

320

15

RCYB-10

1000

300

250

770

1000

800

320

16

RCYB-12

1200

320

260

850

1200

800

350

17

RCYB-14

1400

320

280

1080

1400

1000

350

Note:All themodels have T1、T2、T3design whose magnetic intensity is higher than standard.The magnetic 90mt,120mt and 150mt separately,Discard iron belt can be equipped with armor.


work principle.gif

company information.jpg

Company & Customer Visiting
There is no better , only better.
Weifang baite Magnet Technology Co., Ltd . is a modern joint-stock enterprise, which is producing magnetic and power equipment .The service is related to more than 10 areas ,such as electricity , coal ,building materials, metallurgy ,ports ,mining ,nonferrous metals ,power environmental production .At present ,we  have provided more than 3000 domestic customers with reliable and value-added and convenient professional equipment and programes, and at the same time ,we occupy more than 60%magnetic separation equipmemt matching share of China ball mill, crusher, iron sand ship and other production industry, Baite has firmly implemented IS09001:2000 international quality magnagement system standard and IS010012 international quality inspection system standard.

customer coorperation visiting.jpg

Factory Advantages & Service
Baitemagnet factory for general users and special users design and production of various types of customized products.The company owns 3, 000 square meters of mine machinery production plant in linqu area of weifang, and each product has a separate workshop to assemble specialized production workers.Most of our products are self-developed products, combining with advanced technology at home and abroad to ensure that the industry is competitive and fully meets the technical requirements of customers.Our production capacity is strong, and we have a special production line for customers who are in urgent need of the goods.
We are full of enthusiasm, high quality service, think the customer value is the principle. Provide the spare parts and vulnerable parts of the products at the factory price.
Once the equipment failure in the process of production, the company within 24 hours to the customer's phone must come up with a clear solution, and to resume production first and then the responsibility attitude quickly solve the problem.
