Thailand MQ Series Ball Mill For Grinding Machine

Thailand MQ Series Ball Mill For Grinding Machine

This ball mill is designed for Thailand basing high technology.It can be worked in harsh environment.Ball mill is the material being broken, and then to smash the key equipment. Ball mill is widely used in cement, Portland products, new building material, refractory material, fertilizer, black and non-ferrous metal ore dressing and glass ceramics production industry, of all kinds of ores and other materials may be grinding of dry or wet grinding.

Print Product Summary

*Brand:Baite
*Color:Multi Color
*Voltage:220V
*Weight:1T
*Material:Stainless Steel
*Warranty Period:1 Year
*Country Of Origin:Shandong, China (Mainland)
*After-Sales-Service:Technical Service
*Dimension:Customized
*Price:7500USD

rechal@baitecidian.com

+86-536-8309116

Specification

Introduction

MQ series ball mill is mainly used in mining, cement, refractories, chemical and other industries grinding operation.Ball mill by the motor through

reduced pressure machine and surrounding large gear reduction drive, or directly by the low speed synchronous motor through the surrounding big

gear reduction drive, drive rotary rotary, barrel inner is equipped with the appropriate - ball grinding media.Under the action of grinding medium

in a centrifugal force and friction force, was promoted to a certain height, a fall down or discharge state falls, materials to be abraded by feeding

mouth continuously into the barrel inside, by the movement of grinding medium crushing, and the product through the power of the overflow and

continuous feeding discharge outside, for the next working procedures.

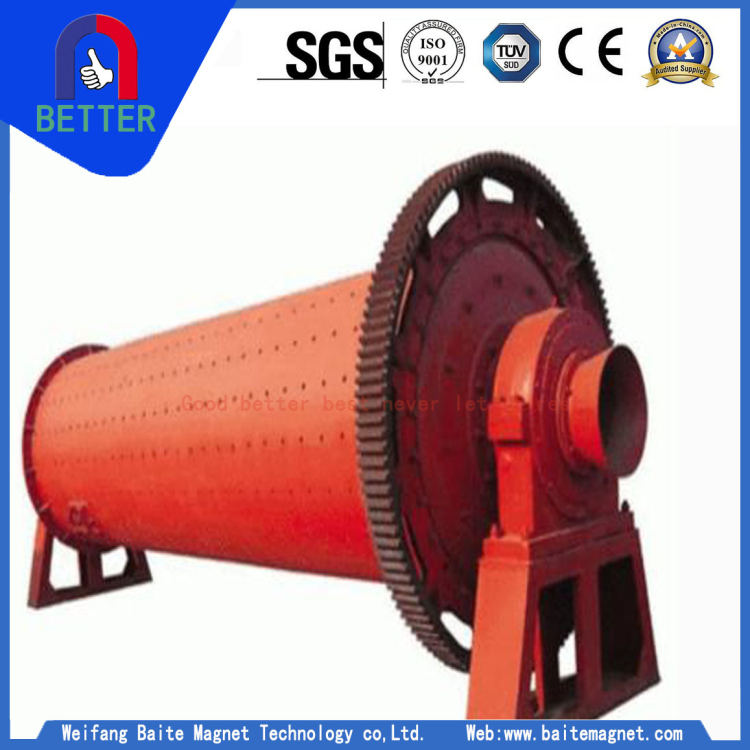

1 mill1.jpg

Feature

--Suitable for grinding material with high hardness

--The shape of the final products is circular

--No pollution for the powder with ceramic ball

--Stable performance Easy installation

--The capacity and fineness can be adjusted by adjusting the diameter of the ball.

MQ mill details2.jpg

Working Principle Drawing

Technical Parameter

NO.	Model	Rotational size (mm)	Rotational speed (r/min)	Ball weight (t)	Feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Driving Power（kw）	Weight（T）
NO.	Model	Rotational size (mm)	Rotational speed (r/min)	Ball weight (t)	Feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Driving Power（kw）	Weight（T）
1	MQ1535	φ1500×3500	29.7	7.5	≤25	0.074-0.4	2-5	75	16.8
2	MQ1545	φ1500×4500	27	11	≤25		3-6	110	21
3	MQ1845	φ1830×4500	25.4	15	≤50		4.5-12	155	35.5
4	MQ1857	φ1830×5700	24.1	21	≤50		6.5-15	210	43
5	MQ2145	φ2100×4500	23.7	24	≤70		8-43	245	42
6	MQ2160	φ2100×6000	23.7	26	≤70		8-48	280	56.6
7	MQ2445	φ2400×4500	21	30	≤90		8.5-70	320	69
8	MQ2460	φ2400×6000	21	35	≤90		12-70	380	82
9	MQ2745	φ2700×4500	20.7	48	≤110		12-90	480	102
10	MQ2760	φ2700×6000	20.7	87	≤110		15-110	800	142
11	MQ3257	φ3200×5700	18	72	≤130		14-100	850	140
12	MQ3280	φ3200×8000	18	115	≤130		30-200	1000	175
13	MQ3660	φ3600×6000	17	110	≤150		50-280	1250	175
14	MQ3680	φ3600×8000	17	153	≤150		65-320	1500	205

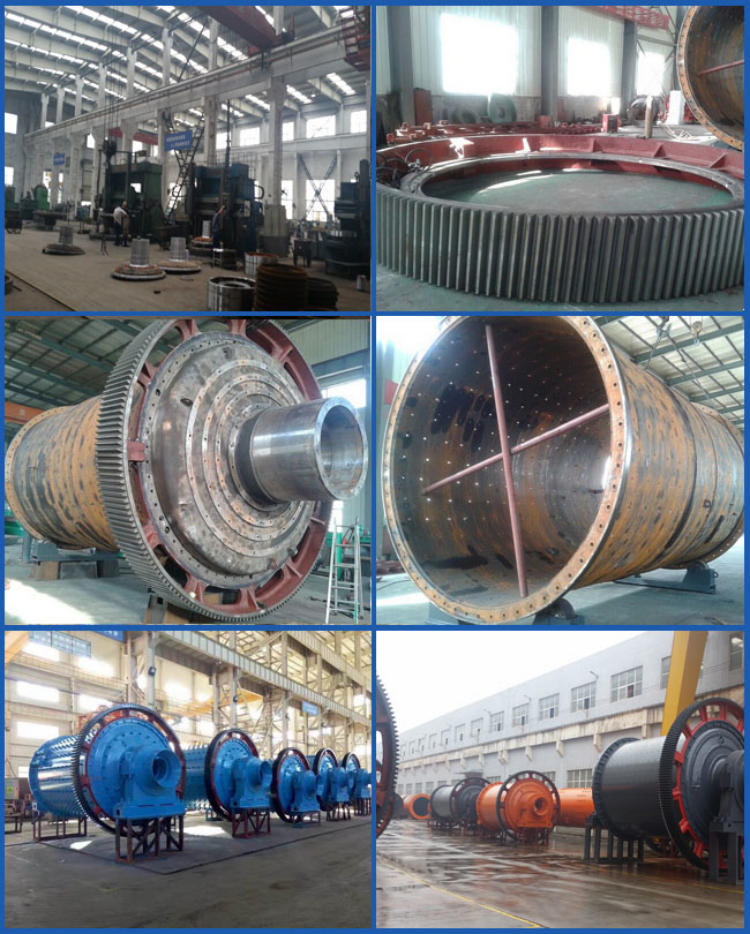

2 mill1.jpg
