MW22 Series Billet Lifting Manufacturers For Pakistan
We are the professional manufacturer for mining equipment,such as magnetic separator,crusher,billet lifting,electric magnet lifting and so on.It is widely used in steel plant in Parkistan.The most widely used series whose shape is rectangle especially suitable for lifting and transporting billet , steel ingot, bloom, etc., and round , profiled steel as well. Different magnetic circuits are designed for different steels.
- *Brand:Baite
- *Color:Multi Color
- *Voltage:220V
- *Weight:1T
- *Material:Stainless Steel
- *Warranty Period:1 Year
- *Country Of Origin:Shandong, China (Mainland)
- *After-Sales-Service:Technical Service
- *Dimension:Customized
- *Price:Negotation
rechal@baitecidian.com
+86-536-8309116
Specification
Lifting Magnet for Steel Billet MW22
The most widely used series whose shape is rectangle especially suitable for lifting and transporting billet , steel ingot, bloom, etc., and round , profiled steel as well. Different magnetic circuits are designed for different steels.
Applications:
1. Applied to lifting and transporting magnet-conductive materials such as steels and irons in metallurgy industry ,mine industry,machinery industry,communication and transportation industry and etc.
2. Use as electromagnetic manipulator to hode magnet-conductive materials as steels and irons.
3. There is no need using steel wire or C typ3 hook when lifting.

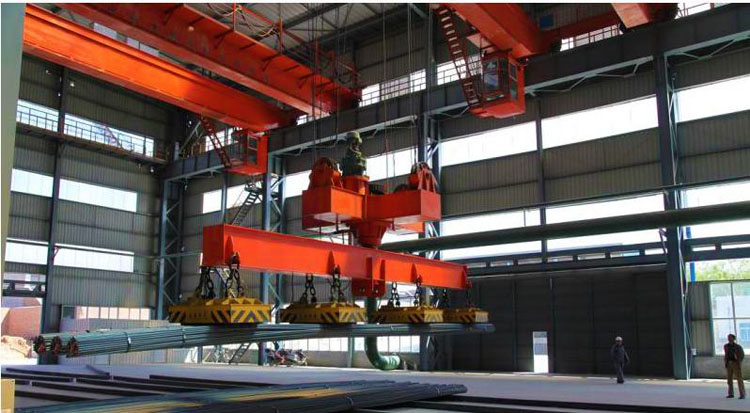

4. Multi-set conbination use permitted so as to lift multiple wire rods at one time just as showed in the picture below.
Make A Delivery
Technical Parameter
Model | Cold-state Power (kW) | Cold-State Current (A) | Overall Dimension (mm) | Mass (kg) | Lifting Capacity of 2 units combination (example) | ||||||
150 Billet | 200 Billet | ||||||||||
A | B | C | D | Length (m) | Piece (s) | Length (m) | Piece (s) | ||||
MW22-9065L/1 | 4.85 | 22.0 | 900 | 650 | 1050 | 500 | 1420 | 11 | 5 | 9 | 4 |
MW22-11065L/1 | 5.6 | 25.5 | 1100 | 1050 | 500 | 1720 | 6 | 5 | |||
MW22-14065L/1 | 6.9 | 31.3 | 1400 | 1100 | 600 | 2150 | 8 | 6 | |||
MW22-17065L/1 | 8.1 | 36.5 | 1700 | 1200 | 600 | 2650 | 10 | 7 | |||
MW22-21065L/1 | 10.1 | 45.7 | 2100 | 1250 | 700 | 3110 | 12 | 9 | |||
MW22-11070L/1 | 5.6 | 25.5 | 1100 | 700 | 1050 | 500 | 1860 | 12 | 6 | 10 | 5 |
MW22-14070L/1 | 6.9 | 31.3 | 1400 | 1100 | 600 | 2330 | 8 | 6 | |||
MW22-17070L/1 | 8.9 | 40.3 | 1700 | 1200 | 600 | 2820 | 10 | 7 | |||
MW22-21070L/1 | 10.2 | 45.8 | 2100 | 1250 | 700 | 3290 | 12 | 9 | |||
MW22-11080L/1 | 5.9 | 26.8 | 1100 | 800 | 1100 | 600 | 2160 | 14 | 6 | 11 | 5 |
MW22-14080L/1 | 7.4 | 33.4 | 1400 | 1200 | 600 | 2700 | 8 | 6 | |||
MW22-17080L/1 | 9.03 | 41 | 1700 | 1250 | 600 | 3210 | 10 | 7 | |||
MW22-21080L/1 | 10.2 | 45.8 | 2100 | 1350 | 700 | 3840 | 12 | 9 | |||
MW22-14090L/1 | 7.3 | 33 | 1400 | 900 | 1250 | 600 | 3010 | 16 | 8 | 12.5 | 6 |
MW22-17090L/1 | 8.9 | 40.5 | 1700 | 1350 | 600 | 3560 | 10 | 7 | |||
MW22-21090L/1 | 10.0 | 45.5 | 2100 | 1350 | 700 | 4280 | 12 | 9 | |||
MW22-25090L/1 | 12.0 | 54.4 | 2500 | 1350 | 600 | 5130 | 15 | 11 | |||
MW22-140100L/1 | 7.4 | 33.5 | 1400 | 1000 | 1350 | 600 | 3430 | 17.5 | 8 | S | 6 |
MW22-170100L/1 | 8.9 | 40.1 | 1700 | 1350 | 700 | 3930 | 10 | 7 | |||
MW22-210100L/1 | 11.1 | 50.3 | 2100 | 1350 | 700 | 4910 | 12 | 9 | |||
MW22-250100L/1 | 13.1 | 59.1 | 2500 | 1400 | 700
| ||||||
