Metal Detector For Food Industry
Metal Detector For Food Industry
Metal Detector For Food Industry
This metal detector is designed by our company basing advance technology.It is widely used together with belt conveyors in thermal power,cement,paper,mining,forestry,environment protection,building materials,especially food industry.High sensitive and quantitative
debugging;high sensitivity to detect extra large metals and acoustic optical alarm.
Print Product Summary
  • *Brand:Baite
  • *Color:Multi Color
  • *Voltage:220V
  • *Weight:1T
  • *Material:Stainless Steel
  • *Warranty Period:1 Year
  • *Country Of Origin:Shandong, China (Mainland)
  • *After-Sales-Service:Technical Service
  • *Dimension:Customized
  • *Price:Negotation
rechal@baitecidian.com
+86-536-8309116
Specification

product details.jpg

Metal detector used mainly for food and other requirements of high detection sensitivity industries, for the detection of inclusions or lost in the

raw materials or products of broken needle, wire or lead, copper, aluminum, tin, stainless steel and other metals.

0 metal detector.jpg

Feature

1.Dual-loop circuit design, it can detect ferrous and non-ferrous and other metal objects, the sensitivity can be adjusted separately, with

   memory function can be stored 10 kinds of test material.

2.Detector with audible and visual alarm, and automatically exclude, stop, rewind functions, user-friendly menu, easy to operate touch

   screen. Machine made of stainless steel,anti-corrosion, no rust, easy to clean up.

3.Conveyor and pallet assembly used in the U.S. "FDA" standards of white non-toxic materials.

4.Detection accuracy over the corresponding provisions of HACCP system Detect indicators.

5.Can use with production line.

6.It is mainly used for detecting the metal chips inside the nuts,rice,tea and wood processing industry etc. Besides it can also be used for the detection of metallic

 impurities in chemicals, rubber, plastics, textiles, leather, chemical fiber, toys as well as for the detection of metallic impurities in pharmaceuticals, health products,

biological products, cosmetics, gifts, packaging, papers, and so on.

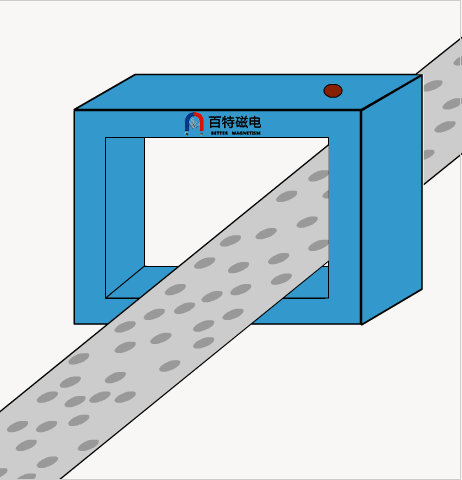

Working Principle Drawing

metal detector for food industry

Technical Parameter

           Belt Width(mm) detection        height(mm)400500600
80Fe≥Φ0.7  SUS≥Φ1.5Fe≥Φ0.7  SUS≥Φ1.5Fe≥Φ0.8  SUS≥Φ2.0
100Fe≥Φ0.8    SUS≥Φ2.0Fe≥Φ0.8    SUS≥Φ2.0Fe≥Φ1.0    SUS≥Φ2.0
150Fe≥Φ1.0    SUS≥Φ2.3Fe≥Φ1.0    SUS≥Φ2.5Fe≥Φ1.0    SUS≥Φ2.3
200Fe≥Φ1.2    SUS≥Φ2.5Fe≥Φ1.5    SUS≥Φ3.0Fe≥Φ1.2    SUS≥Φ2.5
250Fe≥Φ1.5    SUS≥Φ3.0Fe≥Φ1.5    SUS≥Φ3.0Fe≥Φ1.5    SUS≥Φ3.0
300Fe≥Φ2.0    SUS≥Φ3.5Fe≥Φ2.0    SUS≥Φ3.5Fe≥Φ2.0    SUS≥Φ3.5

4 metal detector for sale.jpg

7 metal detector.jpg

8 metal detector.jpg

company information.jpg

own company informantion.jpg

own company information 2.jpg
