Disk Vacuum Filter makes use of the pressure difference to separate the solid particles and liquid through the porous medium, such as filtration fabric and board.
And the disk type vacuum filter uses the vacuum as the filtering power to separate the solid and liquid.
Disk Vacuum Filter is mainly used in dehydrating of the fine materials, such as flotation of fine coal and tailing coal with size of 0-0.05mm,
Disk Vacuum Filter also can be used for solid-liquid separation in metallurgy, chemical, petroleum and sewage treatment industries.
Feature:
1)Filter plate is high strength engineering plastic, which makes filter more durable.
2) Easy maintanance and operation, ;
3) Self-cleaning filter device;
4) Leaf proof design;

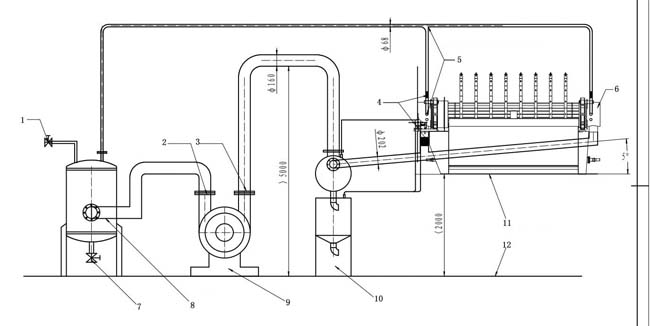

Working Principle Drawing
Technical Parameter
Filter diameter (mm) | 2100 | 3100 | ||||||||||
Filtration area (㎡) | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 48 | 60 | 72 | 84 | 96 |
Filter disc quantity | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 4 | 5 | 6 | 7 | 8 |
Quantity of each filtration disc | 20 | |||||||||||
Pricipal shaft power (kw) | 2.2 | 3 | 4 | 5.5 | 7.5 | |||||||
Mixer shaft power (kw) | 3 | 4 | 5.5 | 7.5 | 11 | |||||||
Vacuum power (kw) | 22 | 37 | 37 | 55 | 55 | 55 | 75 | 90 | 90 | 110 | 132 | 132 |
Weigh(t) | 10.4 | 11 | 11.6 | 12.2 | 12.8 | 13.4 | 14 | 18 | 21 | 24 | 27 | 30 |
L (mm) | 2535 | 2920 | 3315 | 3705 | 4095 | 4485 | 4875 | 5265 | 4735 | 5235 | 5735 | 6235 |
W (mm) | 2480 | 4205 | ||||||||||
H (mm) | 2960 | 3700 | ||||||||||
Capacity (t/h) | 6-8.5 | 9-13 | 12-17 | 15-21.2 | 18-25.2 | 21-29.8 | 24-34 | 30-42.5 | 36-51 | 43-61.2 | 50-71.4 | 58-81.6 |
