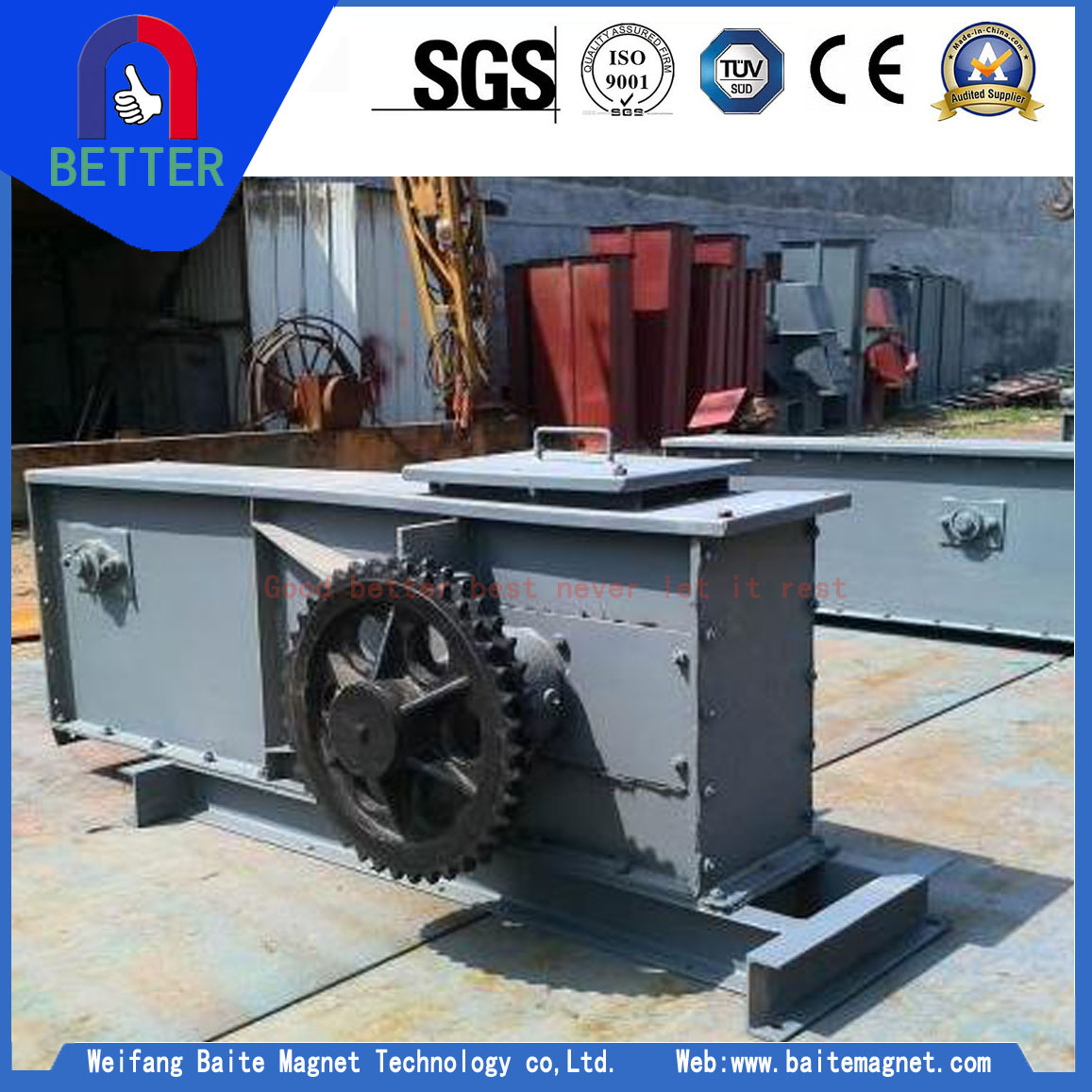

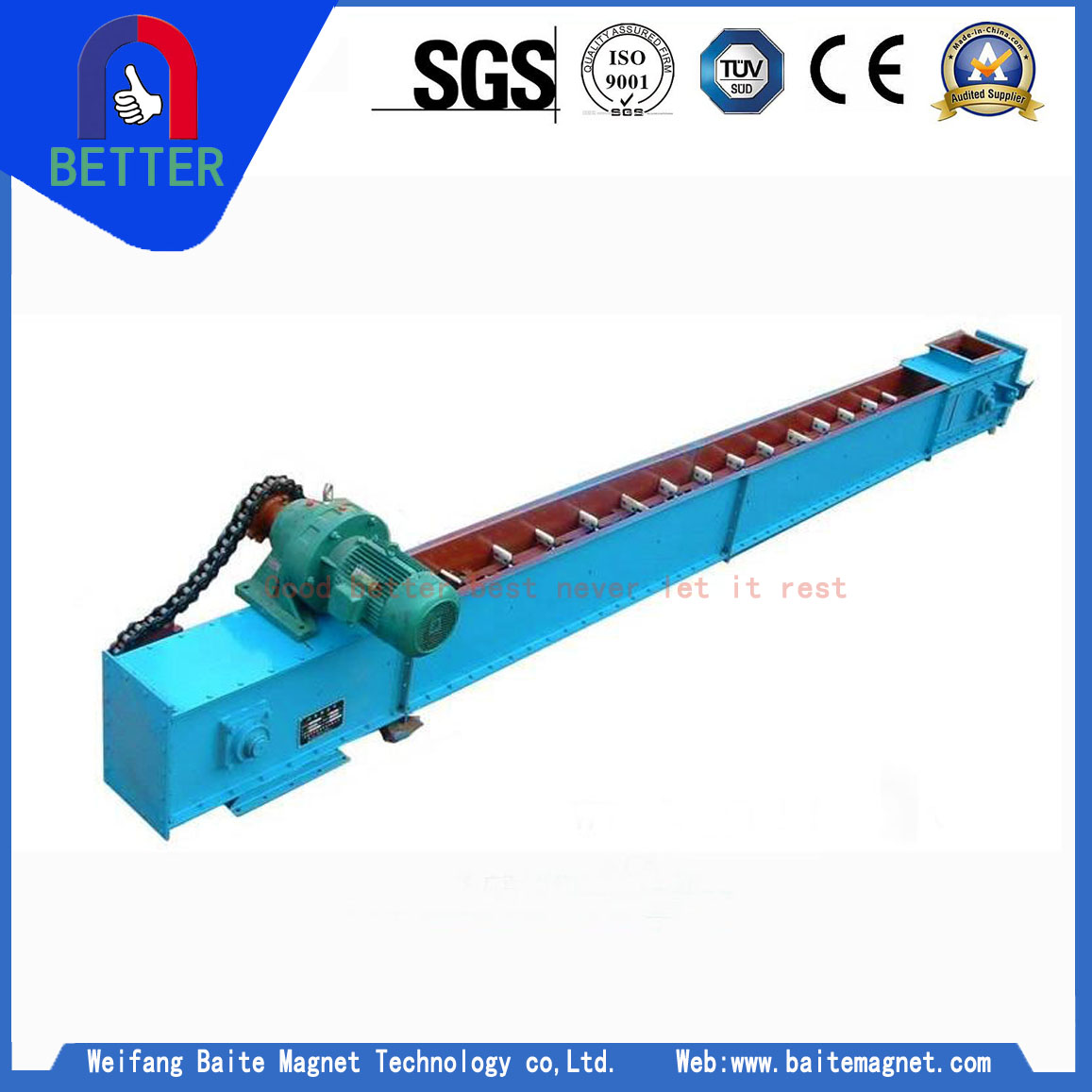

Professional Design Fu Type Chain Scraper Conveyor
Professional Design Fu Type Chain Scraper Conveyor
Professional Design Fu Type Chain Scraper Conveyor
Model:Fu Type Chain Scraper Conveyor
The FU type chain conveyor has a big conveying capacity , which allowe to transport a large number of materials in a small capacity space.it can save 40% ~ 60% electricity compared with screw conveyor.Its horizontal transport distance can reach more than 60 meters.All of them can be customized with requirement of different clients.
Print Product Summary
  • *Brand:Baite
  • *Color:Multi Color
  • *Voltage:220V
  • *Weight:1T
  • *Material:Stainless Steel
  • *Warranty Period:1 Year
  • *Country Of Origin:Shandong, China (Mainland)
  • *After-Sales-Service:Technical Service
  • *Dimension:Customized
  • *Price:Negotation
rechal@baitecidian.com
+86-536-8309116
Specification

Introduction

FU type scraper conveyor (chain conveyor) is an conveying equipment which is traction components on the roller chain plate and continuous. This type of

device with compact structure, good sealing, rational layout, application convenient maintenance, etc. It is mainly used for grinding powder, particle, small

lump with strong abrasive in horizontal or inclination.

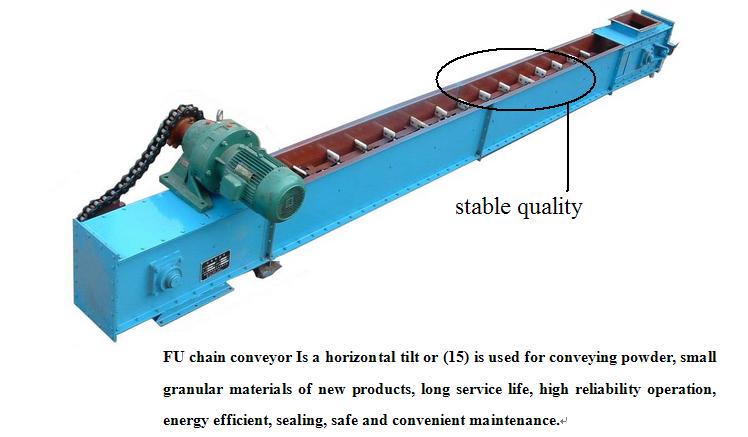

0 scraper conveyor.JPG

Features

1. Reasonable structure, novel design, advanced technology and complete series.
2. Totally enclosed chassis, sealed performance is good, safe in operation and reliable running.
3. Cost saving, power saving and durable, less maintenance, lower consumption, improve business efficiency.
4. Large conveying capacity, allowing for transporting a large number of materials within a small space throughput up to 6 ~ 600 m3 / h.
5. Import and export of flexible, elevated, ground, pit, level, climbing (15 ° or less) can be installed, length can be designed according to the user.
6. The service life is long, conveyor chain alloy steel by means of advanced heat treatment and normal life > 5 years, chain roller life of 2 ~ 3 years or more.

7  Because the scraper conveyor is the use of the material in the friction to drive the material move, therefore, the smaller resistance during operation, low

 energy consumption, energy saving about 50% less in compared with the screw conveyor.
8Conveyor chain adopts high strength wear resistant alloy sleeve roller chain plate structure, and after the special technology processing, it has high strength,

low friction coefficient, long working life and other characteristics;
  9 Wide scope transportation, it should be transport various powder, granular, lump material with high capacity and long distance below 150 ºC.
10The whole transport process conducted in confined Spaces, sealed safe and reliable, especially suitable for conveying volatile, toxic, corrosive, and special

medium, etc.
11The type scraper conveyor is completed, there are FU200, FU270, FU350, FU410, various types etc. It can customize according to customer's demand for

special.

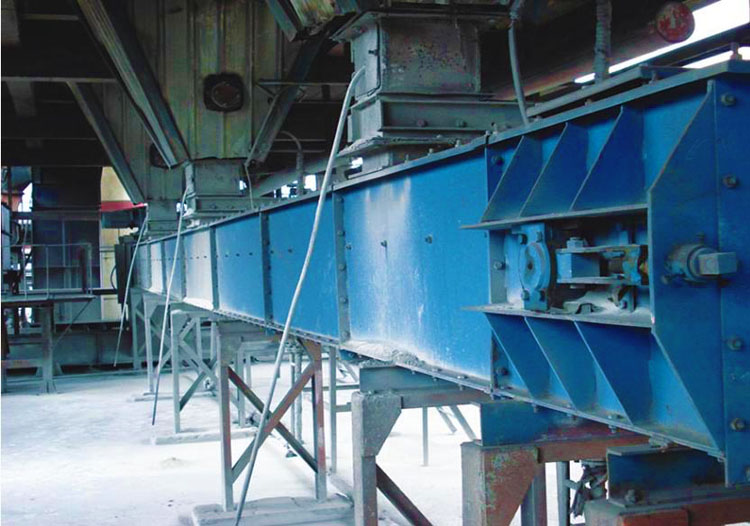

2 chain scraper conveyor.jpg

overal Dimension Drawing

Professional Design FU Type Chain Scraper Conveyor

Technical Parameter

ModeChute width（mm）Ideal particle size （mm）10%Max particle size Chain Speed（m/min）Material humidity
101213.515162025
Optimal   conveying volume （m³/h）
FU150150486–9——9–13—12–1815–23≦5%
FU20020051012–16——18–24—24–3230–40
FU27027071521–3025–3628–4031–4534–4842–6052–75
FU350350918—40–56—54–75—72–10090–125
FU4104101121—55–80—70–100—95–130105–150
FU5005001325—80–110—105–145—140–120160–225
FU6006001530—115–160—150–210—200–290230–300
