Permanent Magnetic Separator Exporter In Norwegian
Permanent Magnetic Separator Exporter In Norwegian
Permanent Magnetic Separator Exporter In Norwegian

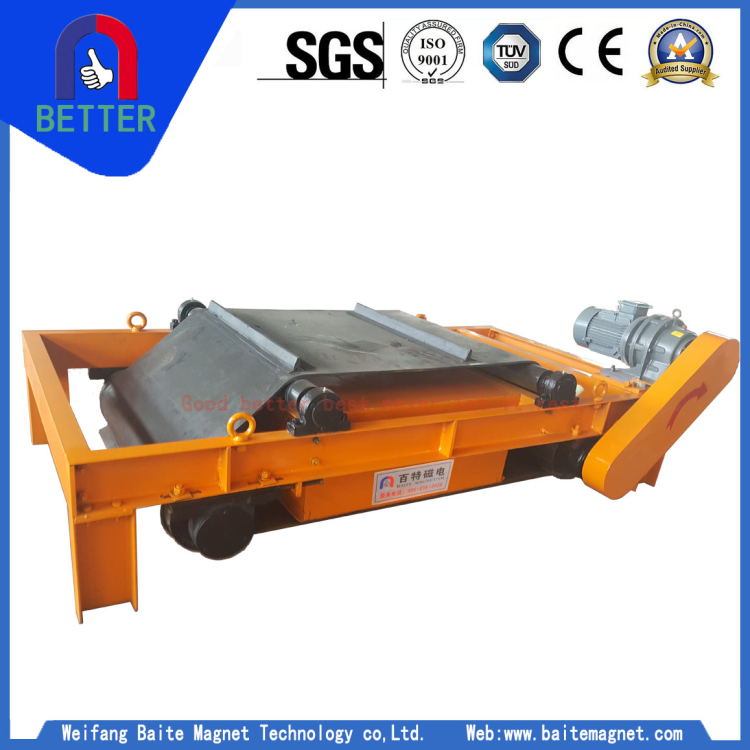

Model:RCYD-8 Self-cleaning Permanent Magnetic Separator
We are the professional manufacturer and exporter from China for magnetic separatorg.All of them are strictly according to SGS and ISO9001 and CE certification.This RCYD permanent magnetic separator is pretty much used to separate ore materials in Norwegian .The weight loss max 3% after 10 years for permanent magnet.It is also suitable for foodstuff ,ceramics,cement,chemical,feed,steel,glass industry .We have experience to handle the OEM orders.Welcome to visit our website.
Print Product Summary
  • *Brand:Baite
  • *Color:Multi Color
  • *Voltage:380V
  • *Weight:1T
  • *Material:Stainless Steel
  • *Warranty Period:1 Year
  • *Country Of Origin:Shandong, China (Mainland)
  • *After-Sales-Service:Technical Service
  • *Dimension:Customized
  • *Price:Negotation
rechal@baitecidian.com
+86-536-8309116
Specification

product details.jpg

The weight loss max 3% after 10 years for permanent magnet.

It was made up of high remanence and high coercivity rare earth permanent magnet NdFeB material.which ensure the iron separator can be work in the harsh environment. RCYD Series Suspension magnetic separator is made up of high performance permanent magnetic core, discarded iron belt, deceleration motor, frame, drum and other parts.High intensity magnetic ensured that the magnetism can not be affected by environmental temperature and mechanical vibration.The surface of magnetic materials is electroplated and treated with strict anti-corrosion during assembly.

1 high intensity magnetic separator.jpg

Technical Feature

1.It was made up of high remanence and high coercivity rare earth permanent magnet NdFeB material.

2.It is made up of the drum-shaped roller, whole-sealed cast steel bearing pedestal, which make the separator work in the harsh environment,water-proof, dust-proof and corrosion resisting.
3.Energy saving,easy to install and convenient to use
4.High efficiency and stable performance,good operational reliability and flexibility
5.Reliable function, unique magnetic circuit, strong magnetic force, and high magnetic gradient.
6.According to the special request,it has the Explosion-proof type.

diamension drawing.jpg

Product Details

The frame for machine is made of high stainless steel,which can be worked in harsh environment,it is dust-proof,water-proof,corrosion-resistant.

0 magnetic separator supplier China.jpg

RCYD Series Suspension magnetic separator is made up of high performance permanent magnetic core, discarded iron belt, deceleration motor, frame, drum and other parts.High intensity magnetic ensured that the magnetism can not be affected by environmental temperature and mechanical vibration.The surface of magnetic materials is electroplated and treated with strict anti-corrosion during assembly.

1 magnetic separator supplier China.jpg

The belt is adopts Polyester fabric and rubber.

10 magnetic separation plant.jpg

Make A Delivery

12 permanent magnet.jpg

Tnechnical Parameters

<td width="24" valign="center" style="box-sizing: border-box; padding: 1px 1px 0px; border-color: rgb(255, 255, 255) windowtext windowtext rgb(255, 255, 255); background-image: initial; background-position: initial; background-size: initial; background

<td width="24" valign="center" style="box-sizing: border-box; padding: 1px 1px 0px; border-color: rgb(255, 255, 255) windowtext windo

O.

Model

Adaptive belt width  (mm)

Suspension height

(h=mm)

Material depth(≤mm)

Magnetic intensity(≥mt)

Belt speed

(m/s)

Working system

Existing power (≤kw)

Weight(

kg)

Appearance size(mm)

A

B

C

D

E

1

RCYD-5

500

150

100

60

4.5

Continuous

1.5

750

1900

735

935

950

753

2

RCYD-6

600

180

130

60

1.5

920

2020

780

1030

1100

840

3

RCYD-6.5

650

200

150

70

1.5

1200

2165

780

1080

1200

888

4

RCYD-8

800

250

200

70

2.2

1400

2350

796

1280

1300

1088

5

RCYD-10

1000

300

250

70

3

2120

2660

920

1550

1400

1335

6

RCYD-12

1200

350

300

70

4

3350

2860
