RBCDB Series High-Tech And Stable Quality Magnetic Separator

Model:RBCDB series electromagnetic separator
RBCDB mining flameproof electromagnetic iron remover for methane component of explosive gas environment, and in a coal mine.It has lots of advantages,such as sustain and reliable magnetic field,with strong magnetic force.It adopts compact structure,light weight and easy to maintain and so on.

Print Product Summary

*Brand:Baite
*Color:Multi Color
*Voltage:380v
*Weight:1T
*Material:Stainless Steel
*Warranty Period:1 Year
*Country Of Origin:Shandong, China (Mainland)
*After-Sales-Service:Technical Service
*Dimension:Customized
*Price:Negotation

rechal@baitecidian.com

+86-536-8309116

Specification

Introduction:

-- With unique magnetic design, anti-explosion
-- Self-cooling design for crust, small volume, releasing heat quickly, light weigh

Application: It can be used in the coal mines which full of methane or coal powders.

1 anti-explosion magnetic separator.jpg

Features:

-- Perfect design for magnetic system, high magnetic potential, strong magnetic attraction, high efficiency.

-- The inner adopts special resin to pour with wholly sealed structure that is stable of machinery and electric capability.

-- Self-cooling design for crust, small volume, releasing heat quickly, light weight

-- Sealed and filled completely, moisture -proof, dust-proof.

-- Intelligent protection for rectifier control equipment with locale control and remote control functions.
-- RS-485 communication interface, realizing automatic control for procedures

3 anti-explosion magnetic separator.jpg

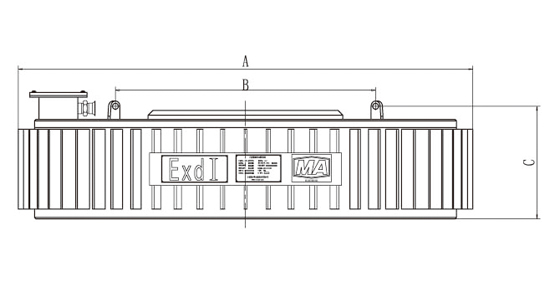

Overal Dimension Drawing

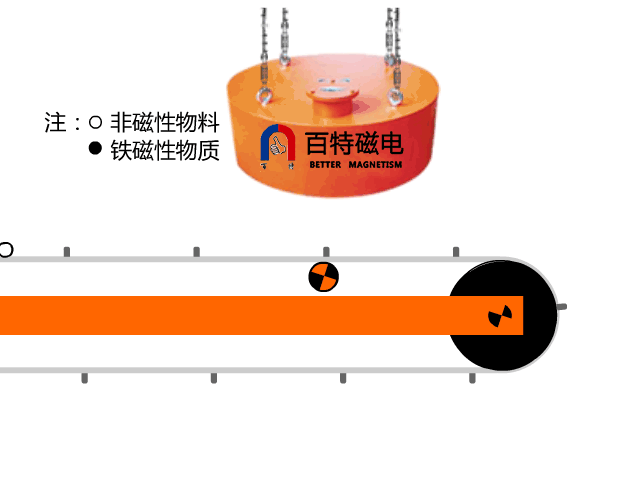

Working Principle Drawing

Technical Parameter

NO.	Model	conveyor belt width (mm)	Suspension height（h=mm）	Material depth（≤mm）	Magnetic intensity（≥mt）	Working system	Existing power （≤kw）	weight（kg）	Appearance size(mm)
NO.	Model	conveyor belt width (mm)	Suspension height（h=mm）	Material depth（≤mm）	Magnetic intensity（≥mt）	Working system	Existing power （≤kw）	weight（kg）	A	B	C
1	RBCDB-5	500	150	100	60	Continuous	1.0	450	610	450	280
2	RBCDB-6.5	650	200	150	70		2.0	700	816	640	280
3	RBCDB-8	800	250	200	70		3.6	950	960	780	310
4	RBCDB-10	1000	300	250	70		5.0	1520	1200	920	310
5	RBCDB-12	1200	350	300	70		6.8	2250	1400	1000	310
6	RBCDB-14	1400	400	350	70		9.0	2950	1650	1400	500
7	RBCDB-16	1600	450	400	70		13.0	5000	1980	1650	600
8	RBCDB-18	1800	500	450	72		18.0	7200	2150	1800	680
9	RBCDB-20	2000	550	500	72		26.0	8800	2400	2000	800
Note:All themodels have T1、T2、T3design whose magnetic intensity is higher than standard.The magnetic 90mt,120mt and 150mt separately,Discard iron belt can be equipped with armor.
