RBCDD EXPLOSION-PROOF SELF-CLEANING ELECTROMAGNETIC SEPARATOR

	Address:No. 23 Dongsi Road, East development Zone, Linqu,Weifang City,Shandong Province,China
	Tel: +86-536-8309116 +86-532-86688809
	Fax: +86-0536-8309116
	Email: rechal@baitecidian.com

Tags

Print Product Summary

rechal@baitecidian.com

+86-536-8309116

Specification

Introduction:

1.It adopts our company's patented technology-a method of controlling the temperature rise of the self-cooling type

Electromagnetic iron separator.Namely,it increase the total turns of the coil N and decrease current density I under

the circumstance that the main property of the magnetic field(main parameters ampere turns IN)is unchanged,which

greatly reduces the heat source,effectively regulate the temperature rise in the iron separator within 70℃,substantially

increase the life span of the iron separator and saves energy.

2.The magnetic iron separator applies the explosion proof structure and can satisfy the uses' need to use in coal mine,

and due to its waterproof,dust-proof property,it can be used in various kinds of working conditions.

Features:

1. Large magnetic potential, strong magnetic permeability, strong suction, high iron recovery.

2. Body self-cooled design, small volume, fast heat dissipation, light weight.

3. Fully enclosed, full-filled, moisture, dust, corrosion-resistant.

4. Drum-shaped roller, auto-correction; UPC bearings, spherical adaptive, sealing well.

5. Automatic unloading iron, guarantee long-term trouble-free operation.

6. Matched with Flameproof motor and flame zone, all use coal mine safety sign.

7. Rectification control equipment has intelligent protection and has local control and remote control function.

8. Select RS-485 communication interface., can achieve process automation control.

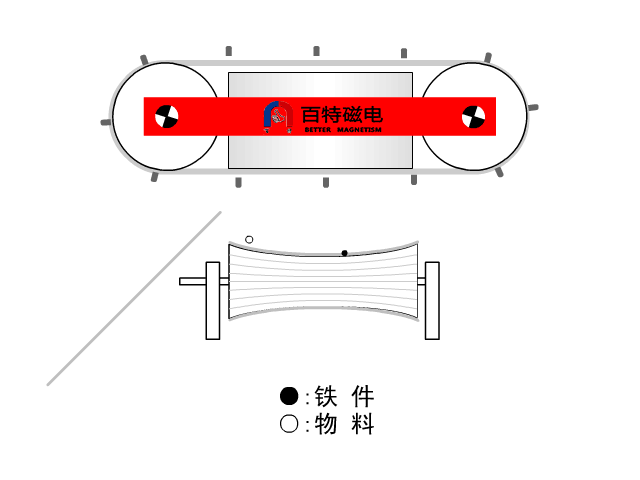

Working Principle Drawing

Technical Parameter

NO.	Model	conveyor belt width (mm)	Suspension height（h=mm）	Magnetic intensity（≥mt）	Existing power （≤kw）	Cooling method	Driving Power（kw）	Weight（kg)	Appearance size(mm)
NO.	Model	conveyor belt width (mm)	Suspension height（h=mm）	Magnetic intensity（≥mt）	Existing power （≤kw）	Cooling method	Driving Power（kw）	Weight（kg)	L	W	H
1	RBCDD-6.5	650	200	60	2.0	self-cooling	1.5	1000	2165	1080	780
2	RBCDD-8	800	250	70	3.6		2.2	1400	2350	1280	796
3	RBCDD-10	1000	300	70	5.0		3.0	2120	2660	1550	920
4	RBCDD-12	1200	350	70	6.8		4.0	3350	2860	1720	1010
5	RBCDD-14	1400	400	70	9.0		5.5	4450	3225	1980	1050
6	RBCDD-16	1600	450	70	13.0		7.5	6200	3350	2160	1180
7	RBCDD-18	1800	500	70	18.0		7.5	8100	3580	2450	1210
8	RBCDD-20	2000	550	70	26.0		7.5	9700	3800	2700	1300
Note:All themodels have T1、T2、T3design whose magnetic intensity is higher than standard.The magnetic 90mt,120mt and 150mt separately,Discard iron belt can be equipped with armor.
