RCDF Oil-cleaning Electromagnetic Separator To Select Magnetic Materials With Hot sale

RCDF Oil-cleaning Electromagnetic Separator To Select Magnetic Materials With Hot sale

RCDF series oil cooling dump electromagnetic iron remover is oil cooling in RCDE series hanging on the basis of electromagnetic iron remover adds to the drive motor, roller, belt scraper discharge of unloading iron structure composed of iron tape, etc. Can work continuously, convenient operation, low failure rate, small amount of maintenance.

Print Product Summary

*Brand:Baite
*Color:Multi Color
*Voltage:220V
*Weight:1T
*Material:Stainless Steel
*Warranty Period:1 Year
*Country Of Origin:Shandong, China (Mainland)
*After-Sales-Service:Technical Service
*Dimension:Customized
*Price:Negotation

rechal@baitecidian.com

+86-536-8309116

Specification

Introduction

Series RCDF dry self-cleaning electromagnetic iron separator is a kind of magnetic equipment which is using in the iron removal from the nonmagnetic material . It usually be installed in the front or center of the belt conveyor. The strong magnetic will

absorb the pieces of iron which mixed with the materials and dished out by the iron discharging belt, achieving the purpose of self-cleaning,and it can prevent the discharging belt longitudinal crack,and ensure that the breaker and grinder work normally .This series iron separator is

widely used in electricity,mine,metallurgy,building material,coal dressing, chemical industry,etc.

Features

-- With the computer-simulating design of magnetic circuits, it has deep magnetic depth and high magnetic field intensity.

-- With special design of exciting coils, it has longitudinal and latitude cooling oil paths. The heat can be easily transformed to the cooling oil to lower

the coil temperature.

-- The special designed wholly sealed coils are moisture-proof, dust proof and corrosion prevention.

-- The corrugated heat-releasing wings enlarge the cooling area and effectively control the temperature rise.

-- Easy maintenance, self clean iron wastes, robust performance.

-- The waist-drum shape roller can rectify the belt automatically. With the wholly sealed bearing blocks, it can achive trouble-free operation for a very long time.

-- With near and remote control system, it has a wide application.

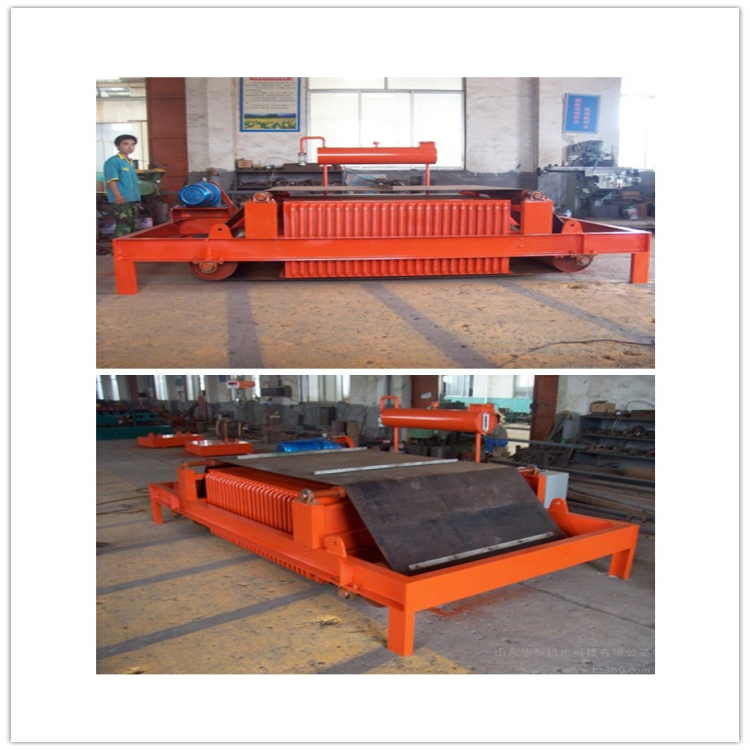

RCDF magnetic separator details1.jpg

overal Dimension Drawing

Working Principle Drawing

Technical Parameter

NO.	Model	Adaptive belt width (mm)	Suspension height（h=mm）	Material depth（≤mm）	Magnetic intensity（≥mt）	Belt speed（m/s）	Existing power （≤kw）	Driving Power（kw）	Weight（kg)	Appearance size(mm)
NO.	Model	Adaptive belt width (mm)	Suspension height（h=mm）	Material depth（≤mm）	Magnetic intensity（≥mt）	Belt speed（m/s）	Existing power （≤kw）	Driving Power（kw）	Weight（kg)	A	B	C	D	E
1	RCDF-4	400	100	60	50	4.5	0.6	1.5	300	600	400	620	360	360
2	RCDF-5	500	150	100	60		1	1.5	500	740	500	730	460	460
3	RCDF-6	600	175	125	60		1.5	1.5	650	840	600	760	560	560
4	RCDF-6.5	650	200	150	70		2	2.2	750	890	650	830	610	610
5	RCDF-8	800	250	200	70		3	2.2	1150	1024	800	850	760	760
6	RCDF-10	1000	300	250	70		4.5	3	1400	1300	1000	950	940	940
7	RCDF-12	1200	350	300	70		6	4	2780	1500	1200	1050	1160	1160
8	RCDF-14	1400	400	350	70		8.5	4	4200	1700	1400	1100	1360	1360
9	RCDF-16	1600	450	400	70		12.5	5.5	5700	2000	1600	1200	1540	1540
10	RCDF-18	1800	500	450	70		18	7.5	7300	2200	1800	1300	1740	1740
Note:All themodels have T1、T2、T3design whose magnetic intensity is higher than standard.The magnetic 90mt,120mt and 150mt separately,Discard iron belt can be equipped with armor.
