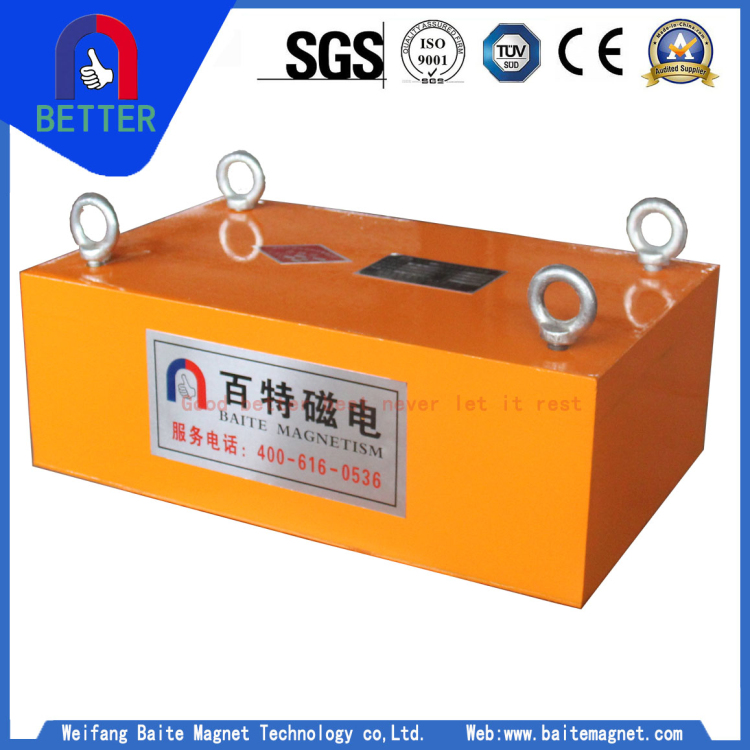

RCYB 4 Suspension Magnetic Separator Saudi Arabia

RCYB 4 Suspension Magnetic Separator Saudi Arabia

Application:Electricity
Type:Suspension & Permanent Magnet
For Belt Conveyor ,vibrating conveyor and feeding chute to eliminate the waste iron.It is designed by our company for Saudi Arabia.It was made up of high remanence and high coercivity rare earth permanent magnet NdFeB material.ensure the magnetism can not be affected by environmental temperature and mechanical vibration.All of them are strictly according to CE certification and ISO9001 standard.

Print Product Summary

*Brand:Baite
*Color:Multi Color
*Voltage:220V
*Weight:1T
*Material:Stainless Steel
*Warranty Period:1 Year
*Country Of Origin:Shandong, China (Mainland)
*After-Sales-Service:Technical Service
*Dimension:Customized
*Price:Negotation

rechal@baitecidian.com

+86-536-8309116

Specification

Table-Product Details.jpg

RCYB Series Permanent Suspension Magnetic Separator

RCYB Series Suspension magnetic separator has strong magnetic field intensity.It was made up of high remanence and high coercivity rare earth permanent magnet NdFeB material.ensure the magnetism can not be affected by environmental temperature and mechanical vibration. High intensity magnetic ensured that the magnetism can not be affected by environmental temperature and mechanical vibration.The surface of magnetic materials is electroplated and treated with strict anti-corrosion during assembly.The unique magnetic circuit was designed by advanced computer simulation means and patented technology.the equipment has good advantages of high magnetic field intensity,no energy consumption and a long service life. It is easy to install and use without maintenance.

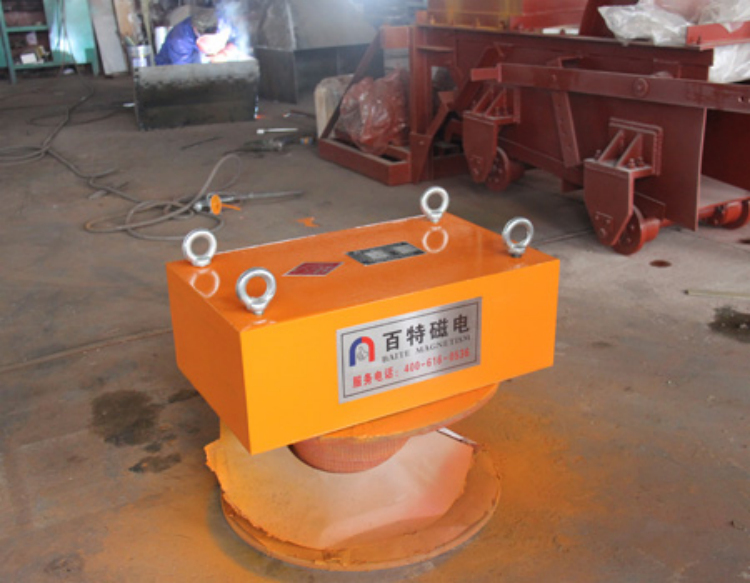

1 permanent magnetic separator.jpg

Technical Feature

1.It was designed by our company ,strong magnetic field intensity.

2.Simple installation,convenient to operate ,high efficiency and stable performance ,free maintenance.

3.It is used to remove 0.1-30kg of ferromagnetic material which mixed in the raw material as it passes through the powerful magnetic field.

4.the permanent magnetic field usage is more than 10 years.

5.The technical specifications of the product accord with standard of JB/T8711-1998 .

4 permanent magnetic separator.jpg

Dimension

Application

It has three model,such as light type,high intensity type,standard type.you can choose the product according your own needs.It is widely used in mining, coal/power generation plant and also in chemical/ food/plastic/ ceramics industries.In addation,for belt conveyor,vibrating conveyor and feeding chute to eliminate the waste iron .

2 permanent magnetic separator.jpg

3 permanent magnetic separator.jpg

Technical Parameters

NO.	Model	Model	Adaptive belt width (mm)	Suspension height（h=mm）	Material depth（≤mm）	Belt speed（m/s）	Weight（kg)	Appearance size(mm)			Magnetic core type
NO.	Model	Model	Adaptive belt width (mm)	Suspension height（h=mm）	Material depth（≤mm）	Belt speed（m/s）	Weight（kg)	L	D	H	Magnetic core type
1	High intensity type	RCYB-4A	400	120	80	4.5	45	400	250	120	Ferrite
2		RCYB-5A	500	130	100		66	500	300	130
3		RCYB-6A	600	150	130		97	600	350	150
4		RCYB-8A	800	200	150		248	800	500	170
5		RCYB-10A	1000	230	200		390	1000	600	190
6	Light type	RCYB-4-1	400	100	60		75	400	250	140	Rare-earth magnet
7		RCYB-5-1	500	120	80		95	500	270	160
8		RCYB-6-1	600	140	100		158	600	350	180
9		RCYB-8-1	800	180	140		480	800	600	260
10	Standard	RCYB-4	400	150	100		115	400	300	230	Built-up magnet
11		RCYB-5	500	175	120		206	500	300	260
12		RCYB-6	600	180	140		295	600	400	280
13		RCYB-6.5	650	200	160		450	650	400	300
14		RCYB-8	800	250	200		680	800	600	320
15		RCYB-10	1000	300	250		770	1000	800	320
16		RCYB-12	1200	320	260		850	1200	800	350
17		RCYB-14	1400	320	280		1080	1400	1000	350
Note:All themodels have T1、T2、T3design whose magnetic intensity is higher than standard.The magnetic 90mt,120mt and 150mt separately,Discard iron belt can be equipped with armor.
