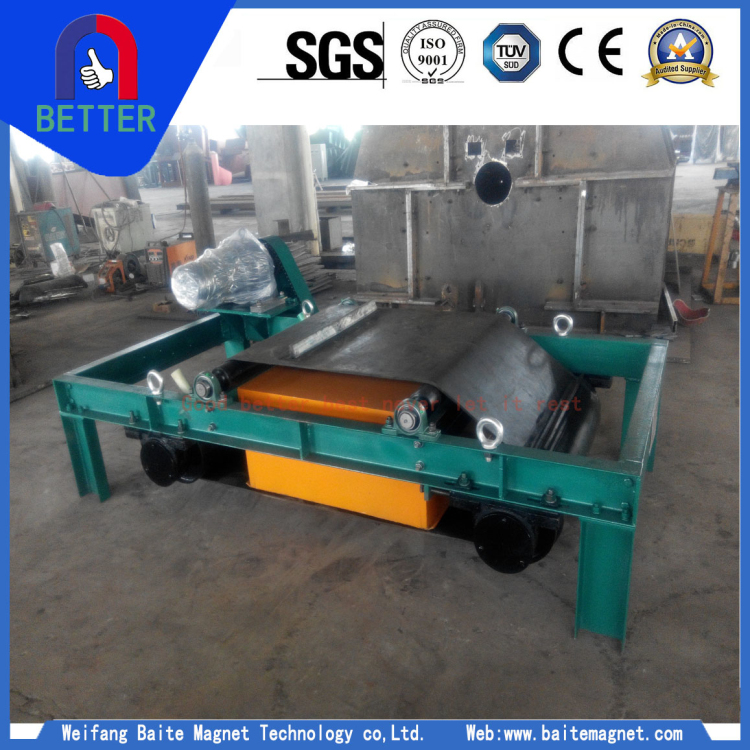

RCYD Self-Cleaning Plate And Permanent Magnetic Separator Is Used to Select Weak Magnetic Minerals With Hot Sale
RCYD Self-Cleaning Plate And Permanent Magnetic Separator Is Used to Select Weak Magnetic Minerals With Hot Sale
RCYD Self-Cleaning Plate And Permanent Magnetic Separator Is Used to Select Weak Magnetic Minerals With Hot Sale
RCYD series permanent Self-cleaning magnetic separator is a high performance permanent magnet magnetic core, metal belt, gear motor, frame, roller and other parts, and all kinds of conveyor systems. Used for automatically from the nonmagnetic material removal of 0.1-25 kg of ferromagnetic material. The internal magnetic circuit by using the computer simulation design, the perfect double pole structure, guarantee the machine in the bad environment trouble-free operation for a long time. Have explosion-proof type.
Print Product Summary
  • *Brand:Baite
  • *Color:Multi Color
  • *Voltage:220V
  • *Weight:<1T
  • *Material:Stainless Steel
  • *Warranty Period:1 Year
  • *Country Of Origin:Shandong, China (Mainland)
  • *After-Sales-Service:Technical Service
  • *Dimension:Customized
  • *Price:Negotation
rechal@baitecidian.com
+86-536-8309116
Specification

Brief Introduction

  It is energy saving type separator equipment using the latest third generation rare-earth permanent-magnet material NdFeB to form magnetic system which produces strong magnet field attraction.it features with reliable function, unique magnetic circuit, strong magnetic force, and high magnetic gradient. It is made up of the drum-shaped roller, whole-sealed cast steel bearing pedestal, which make the separator work in the harsh environment.This series product is widely used in power industry,metallurgical industry,mining industry,paper-making industry,building industry,food industry,cement industry,coal packing-up industry,chemical industry and soon.

Features

-- Made of rare earth NdFeB

-- Energy saving,easy to install and convenient to use

-- High efficiency and stable performance,good operational reliability and flexibility

-- It is made up of the drum-shaped roller, whole-sealed cast steel bearing pedestal, which make the separator work in the harsh environment,water-proof, dust-proof and corrosion resisting.

-- reliable function, unique magnetic circuit, strong magnetic force, and high magnetic gradient.

RCYD magnetic separator manufacture1.jpg

RCYd product making.jpg

RCYD magnetic separator pakaging1.jpg

Technicail Data


NO.ModelAdaptive belt width  (mm)Suspension height（h=mm）Material depth（≤mm）Magnetic intensity（≥mt）Belt speed（m/s）
1RCYD-5500150100604.5
2RCYD-660018013060
3RCYD-6.565020015070
4RCYD-880025020070
5RCYD-10100030025070
6RCYD-12120035030070
7RCYD-14140040035070
8RCYD-16160045040070
9RCYD-18180050045080
10RCYD-20200055050080
Working systemExisting power （≤kw）Weight（kg)Appearance   size(mm)
ABCDE
Continuous1.57501900735935950753
1.5920202078010301100840
1.51200216578010801200888
2.214002350796128013001088
321202660920155014001335
4335028601010172015501515
5.5445032251050198018001755
7.5620033501180216019501850
7.5810035801210245022002130
7.5970038001300270024002410


Packaging & Delivery
Packaging Details:
Pack each window with aluminum foil band and PVC film to protect against scratches.
2. Use wood pallet and frames to fix the windows to avoid collision or shaking.
3. Use packing strap to fasten the pallets.
4. Load the pallets with forklifts. Put airbags between pallets to avoid collision.
Delivery Detail:
Shipped in 30 days after payment
