Stable Delivery RCYD Series Self-cleaning Permanent Magnetic Separator For Cement And Thermal Power Plant For Sale
Stable Delivery RCYD Series Self-cleaning Permanent Magnetic Separator For Cement And Thermal Power Plant For Sale
Stable Delivery RCYD Series Self-cleaning Permanent Magnetic Separator For Cement And Thermal Power Plant For Sale

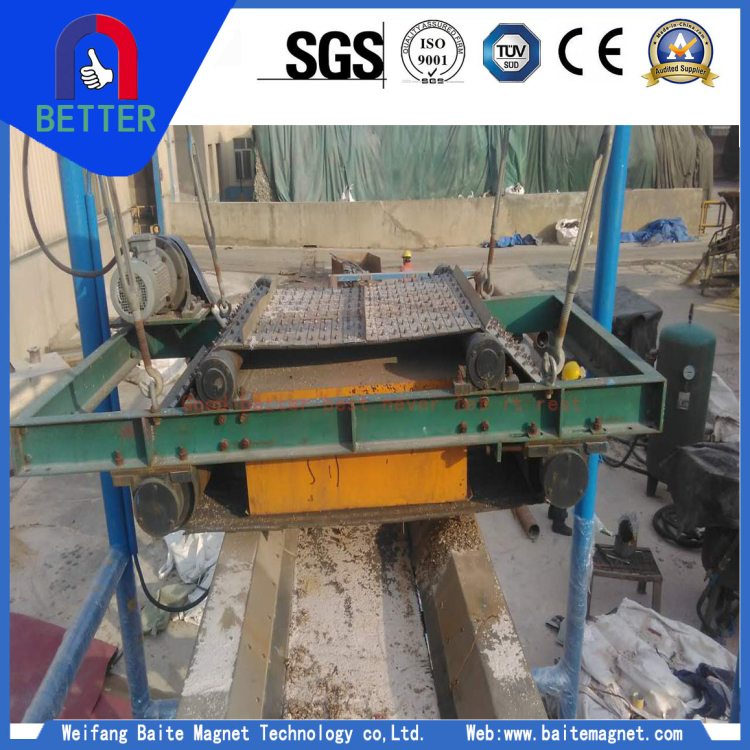

RCYD (C) series permanent magnet dump iron remover consists of high performance permanent magnet magnetic core, motor and reducer, frame abandoned iron straps, roller and other parts, and all kinds of conveyor systems. Used for automatically from the nonmagnetic material remove 0.1-35 kg of ferromagnetic material. The internal magnetic circuit by using the computer simulation design, perfect double pole structure, guarantee the machine in the bad environment trouble-free operation for a long time.
Print Product Summary
  • *Brand:Baite
  • *Color:Multi Color
  • *Voltage:22V
  • *Weight:1T
  • *Material:Stainless Steel
  • *Warranty Period:1 Year
  • *Country Of Origin:Shandong, China (Mainland)
  • *After-Sales-Service:Technical Service
  • *Dimension:Customized
  • *Price:Negotation
rechal@baitecidian.com
+86-536-8309116
Specification

Brief Introduction

  It is energy saving type separator equipment using the latest third generation rare-earth permanent-magnet material NdFeB to form magnetic system which produces strong magnet field attraction.it features with reliable function, unique magnetic circuit, strong magnetic force, and high magnetic gradient. It is made up of the drum-shaped roller, whole-sealed cast steel bearing pedestal, which make the separator work in the harsh environment.This series product is widely used in power industry,metallurgical industry,mining industry,paper-making industry,building industry,food industry,cement industry,coal packing-up industry,chemical industry and soon.

Features

-- Made of rare earth NdFeB

-- Energy saving,easy to install and convenient to use

-- High efficiency and stable performance,good operational reliability and flexibility

-- It is made up of the drum-shaped roller, whole-sealed cast steel bearing pedestal, which make the separator work in the harsh environment,water-proof, dust-proof and corrosion resisting.

-- reliable function, unique magnetic circuit, strong magnetic force, and high magnetic gradient.

RCYd product making.jpg原理图.gif外形图.gif

Technical Data

NO.ModelAdaptive belt width  (mm)Suspension height（h=mm）Material depth（≤mm）Magnetic intensity（≥mt）Belt speed（m/s）Working systemExisting power （≤kw）Weight（kg)Appearance   size(mm)
ABCDE
1RCYD-5500150100604.5Continuous1.57501900735935950753
2RCYD-6600180130601.5920202078010301100840
3RCYD-6.5650200150701.51200216578010801200888
4RCYD-8800250200702.214002350796128013001088
5RCYD-10100030025070321202660920155014001335
6RCYD-121200350300704335028601010172015501515
7RCYD-141400400350705.5445032251050198018001755
8RCYD-161600450400707.5620033501180216019501850
9RCYD-181800500450807.5810035801210245022002130
10RCYD-202000550500807.5970038001300270024002410
Note:All themodels have T1、T2、T3design whose   magnetic intensity is higher than standard.The magnetic 90mt,120mt and 150mt   separately,Discard iron belt can be equipped with armor.
