Turkey Permanent Magnetic Separator For Iron Removing

Turkey Permanent Magnetic Separator For Iron Removing

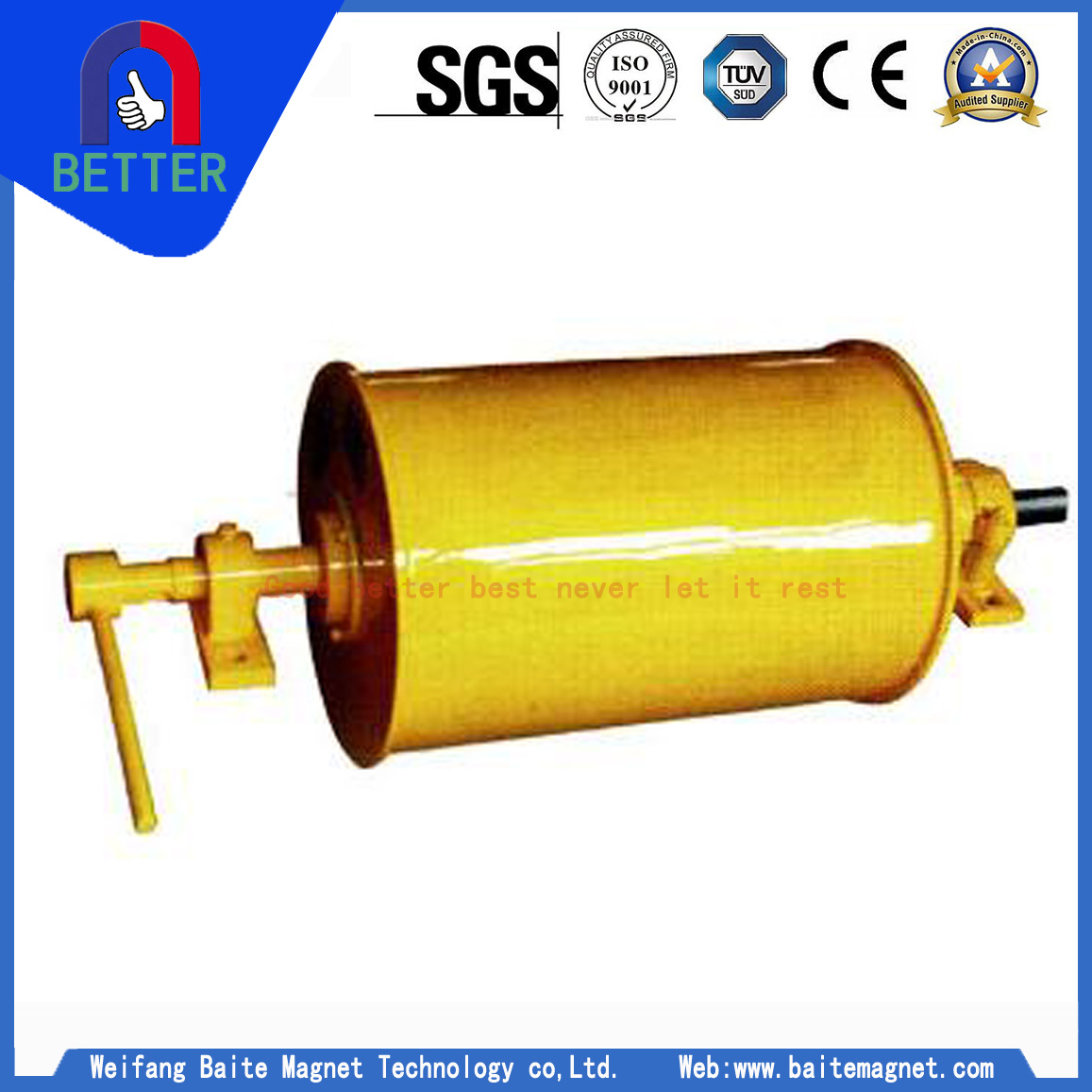

Model:RCT-40/50 Magnetic Roller
We are the professional manufacturer and exporter from China for mining equipment,such as magnetic separator,crusher,grinding machine,belt conveyor,metal detector and so on.This magnetic roller is pretty much for Turkey basing its low factory price.RCT series magnetic roller is composed of magnetic class block, stainless steel tube, Cylinder cover, bearing and magnetic core.RCT series permanent magnet drum (half magnetic roller, magnetic roller is mainly used in building materials, chemical, coal, metallurgical and other industries .

Print Product Summary

*Brand:Baite
*Color:Multi Color
*Voltage:220V
*Weight:1T
*Material:Stainless Steel
*Warranty Period:1 Year
*Country Of Origin:Shandong, China (Mainland)
*After-Sales-Service:Technical Service
*Dimension:Customized
*Price:Negotation

rechal@baitecidian.com

+86-536-8309116

Specification

product details.jpg

RCT series magnetic roller is composed of magnetic class block, stainless steel tube, Cylinder cover, bearing and magnetic core.RCT series permanent magnet drum (half magnetic roller, magnetic roller is mainly used in building materials, chemical, coal, metallurgical and other industries .This equipment with DT type belt conveyor, TD75 belt conveyor belt conveyor, instead of active or passive wheel,It can separate automatically ferromagnetic material from magnetic materials of conveyor belt , when conveying material accumulation is very thick, permanent magnetic pulley can be used with hanging iron remover to achieve the goal of completely iron.Its internal magnetic system is adopted high performance hard magnetic material composition,It has a series of advantages,such as high magnetic field intensity, simple structure,using convenient , easy to maintenance ,energy saving etc.It is widely used in cement, magnetic separation, mining, steel, chemical, refractories, waste disposal industries etc.

1 premanent magnetic roller.jpg

Product advantage

1.It complies with the installation standard size od D75,DTII belt machine,easy to install.

2.Continuous work and simple operation.

3.Good collecting effect for the iron scrap buried deeply in the materials layer.

4.High magnetic field intensity, simple structure,using convenient , easy to maintenance ,energy saving .

5.It was made up of high remanence and high coercivity rare earth permanent magnet NdFeB material.

Dimension

The working principle

work principle.gif

Technical Data

NO.	Model	Magnetic induction intensity of the drum surface (GS)	Material depth（≤mm）	Belt speed（m/s）	Weight（kg)	Appearance size(mm)
NO.	Model	Magnetic induction intensity of the drum surface (GS)	Material depth（≤mm）	Belt speed（m/s）	Weight（kg)	A	B	DΦ	L	L1	K	dΦ	h	b
1	RCT-32/40	1500-3000	40	≤2.5	150	728	400	320	500	926	100	45	48.5	14
2	RCT-32/50	1500-3000	60		198	850	500	320	600	1097	115	50	53.5	14
3	RCT-40/50	1500-3000	80		250	850	500	400	600	1097	115	55	60	16
4	RCT-50/50	1500-3000	100		370	850	500	500	600	1097	115	55	60	16
5	RCT-32/65	1500-3000	70		245	1000	650	320	750	1280	135	65	69	18
6	RCT-40/65	1500-3000	100		405	1000	650	400	750	1280	135	65	69	18
7	RCT-50/65	1500-6000	130		520	1000	650	500	750	1280	135	70	76	20
8	RCT-50/80	1500-6000	130		610	1300	800	500	950	1580	135	70	76	20
9	RCT-65/80	1500-6000	130		720	1300	800	650	950	1661	175	70	76	20
10	RCT-80/80	1500-6000	150		980	1300	800	800	950	1661	175	90	76	24
11	RCT-65/100	1500-6000	130		910	1500	1000	650	1150	1861	175	90	97	24
12	RCT-80/100	1500-6000	170		1200	1500	1000	800	1150	1954	215	90	97	24
13	RCT-65/120	1500-6000	100		1500	1750	1200	650	1400	2194	215	110	119	32
14	RCT-100/120	1500-6000	200		1890	1750	1200	1000	1400	2270	255	110	119	32
15	RCT-100/140	1500-6000	230		2160	2000	1400	1000	1600	2446	255	110	119	32
16	RCT-125/160	1500-6000	260		2800	2150	1600	1250	1800	2600	255	120	129	32
Note:The strength of the magnetic field can be customized according to customer requirements,from 800gs-10000gs.piease indicate in the contract.
