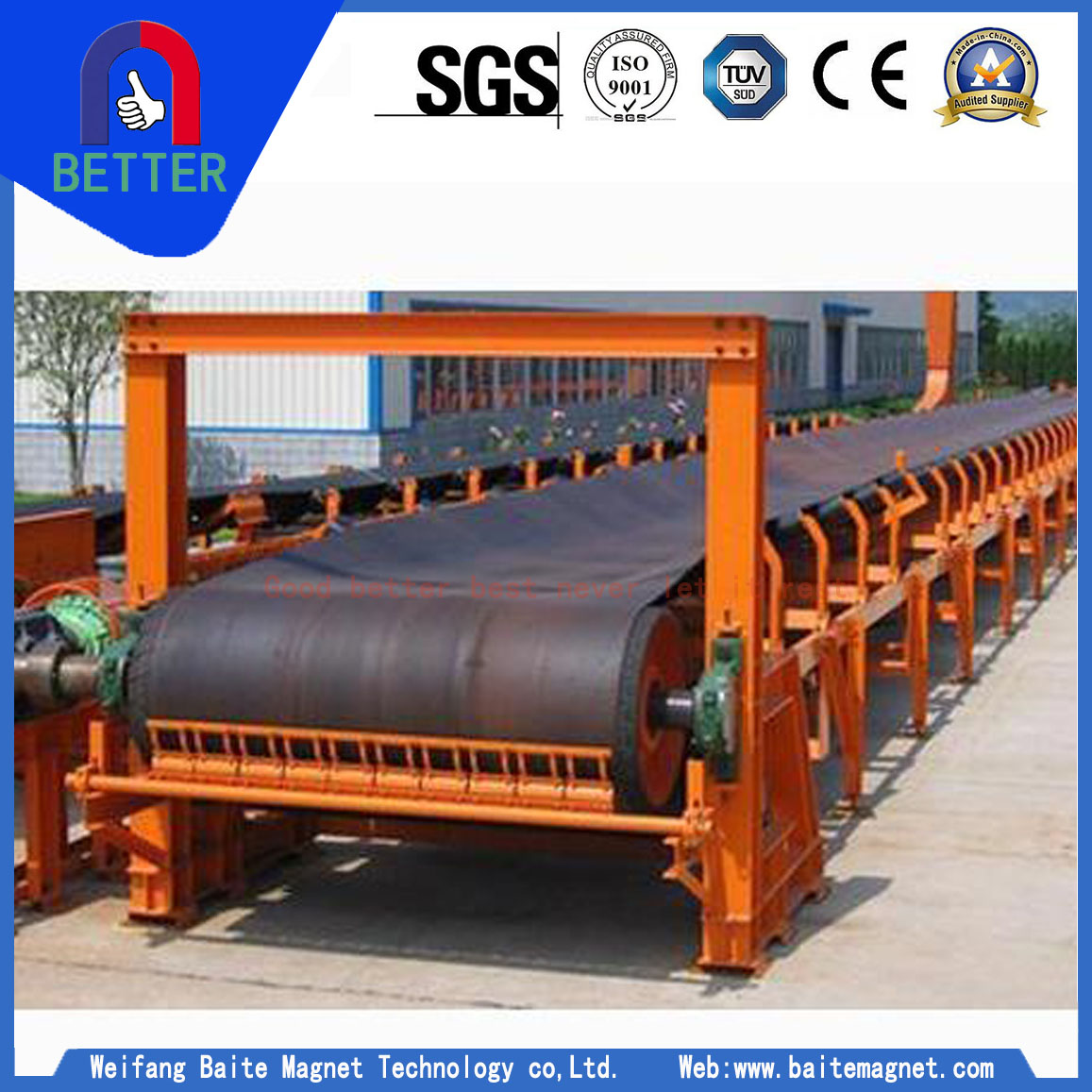

Wholesale belt conveyor Factory In Zambia
Baite Magnet company is a professional factory for belt conveyor.TD75 sereis belt conveyor is widly used in Zambia.It has a series advantages,such as longer conveying distance,while the conveying capacity is quite large. The conveying system can work continuously and stably.All of our products are approved ISO and CE Certificate.
- *Brand:Baite
- *Color:Multi Color
- *Voltage:220V
- *Weight:1T
- *Material:Stainless Steel
- *Warranty Period:1 Year
- *Country Of Origin:Shandong, China (Mainland)
- *After-Sales-Service:Technical Service
- *Dimension:Customized
- *Price:Negotation
rechal@baitecidian.com
+86-536-8309116
Specification
Introduction
The conveyors consist of standard parts, which are advanced and simple in structure, easy to maintain. Our vibrating equipment is adaptable for stationary and mobile crushing plants. They are widely used in mining, metallurgical and coal industry to transfer sandy or lump materials, or packaged materials.
According to different transferring equipment, the transfer system can be one independently or multi-conveyors or combined with other transfer equipment. The belt conveyor can be installed horizontally or a slope to meet the needs of different transfer lines.
The belt conveyors produced by SJLC can be operated in the temperature situation ranging from -20centigrade to +40centigrade. The temperature of transferred material by this belt conveyor should be lower than 50 centigrade.
Features
1.The conveying distance is long, while the conveying capacity is quite large. The conveying system can work continuously and stably.
2.This belt conveyor can be widely used in many industries like metallurgy, electric power plant, chemistry, building material, port, grain processing, and so on.
3.The structure is simple, and the maintenance is convenient and inexpensive. The versatility is great, while the quick-wear parts are limited. Wheels are available for quick installation and moving.
Working principle
Technical Parameters
| Section form | Belt speed（m/s） | Belt width（mm） | |||||
| 500 | 650 | 800 | 1000 | 1200 | 1400 | ||
| Convey capacity（t/h） | |||||||
| Trough type | 0.8 | 78 | 131 | — | — | — | — |
| 1.0 | 97 | 164 | 278 | 435 | 655 | 891 | |
| 1.25 | 122 | 206 | 348 | 544 | 819 | 1115 | |
| 1.6 | 156 | 264 | 445 | 696 | 1048 | 1427 | |
| 2.0 | 191 | 323 | 546 | 853 | 1284 | 1748 | |
| 2.5 | 232 | 391 | 661 | 1033 | 1858 | 2118 | |
| 3.15 | — | — | 824 | 1233 | 1858 | 2528 | |
| 4.0 | — | — | — | — | 2202 | 2996 | |
| Flat type | 0.8 | 41 | 67 | 118 | — | — | — |
| 1.0 | 52 | 88 | 147 | 230 | 345 | 469 | |
| 1.25 | 66 | 110 | 184 | 288 | 432 | 588 | |
| 1.6 | 84 | 142 | 236 | 368 | 553 | 753 | |
| 2.0 | 103 | 174 | 289 | 451 | 677 | 922 | |
| 2.5 | 125 | 211 | 350 | 546 | 821 | 1117 | |
Application
This belt conveyor is widely used in coal, chemical industry, building materials, metallurgy, power, light industry, food, port, ship, thermoelectric,etc.
