Introduction:

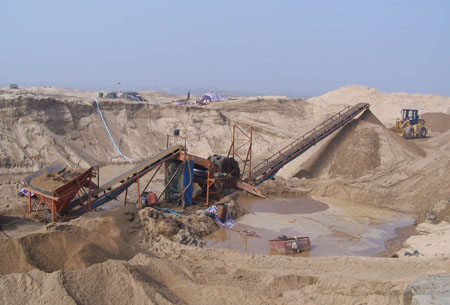

Sand washer is widely used in wash-dressing, classifying and purifying process of metallurgy, building materials, water and electricity industries, especially
for building sand and road sandstone. In our company, this series is a high-efficient washing device, which adopts advanced technology and combines with
the actual situation in domestic sandstone industries. It has advantages of high effective cleaning, rational structure, and large capacity and less wastage sand.
Moreover, its driving part is isolated with the sand and water, so its fault rate is lower than the ordinary sand washers at present. It is the best choice for
upgrading the sand washer in domestic.
Feature:
-- Simple structure, reliable running, low energy consumption, and suitable for various working environment.
-- The shaft, water and the materials are separate, avoid the damage of contamination and rustiness.
-- Less wastage materials, high efficiency, can meet the demand of high-grade raw material.
-- Large capacity, long service life, little wearing parts, small maintenance and low cost.
Technical Parameter
NO. | Model | Wheel bucket diameter (mm) | Rotating speed (r/min) | Capacity (t/h) | Driving Power(kw) | Weigh(kg) |
1 | XS-2600 | 2600 | 0.8-1.2 | 20-50 | 5.5 | 2400 |
2 | XS-2800 | 2800 | 50-100 | 7.5 | 3000 | |
3 | XS-3200 | 3200 | 80-120 | 11 | 5400 | |
4 | XS-3600 | 3600 | 120-150 | 15 | 8700 |
