 Cone Limestone Crusher Manufacturers For Indonesia
 Cone Limestone Crusher Manufacturers For Indonesia
Cone Limestone Crusher Manufacturers For Indonesia
We are the professional manufacturer for crushers in China,all of them are strictly according to ISO9001 standard.CS removable crusher is the best equipment choice for crushing limestone in Indonesia.This cs series cone crusher is extremely popular in Indonesia for using in mining industry.Welcome to visit our factory and build the coorperation.
Print Product Summary
  • *Brand:Baite
  • *Color:Multi Color
  • *Voltage:220V
  • *Weight:1T
  • *Material:Stainless Steel
  • *Warranty Period:1 Year
  • *Country Of Origin:Shandong, China (Mainland)
  • *After-Sales-Service:Technical Service
  • *Dimension:Customized
  • *Price:Negotation
rechal@baitecidian.com
+86-536-8309116
Specification

Introduction

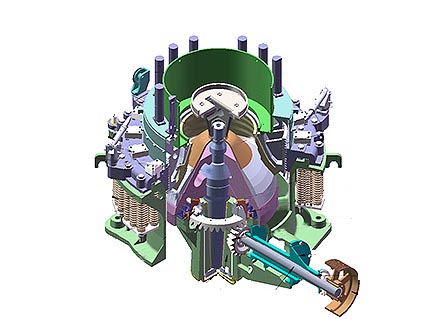

The cs spring cone crusher from special manufacturer is widely used in the fields of metallurgy, construction, hydroelectric project, transport, chemical industries and building materials for crushing all sorts of hard and above medium hard ores and rocksCone crusher consist of frame, transmission device, hollow eccentric shaft, bowl-shaped bearing, crushing cone, springs and hydraulic pressure station for adjusting discharge opening.During operation, the motor drives the eccentric shaft shell to turn around through ahorizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time.

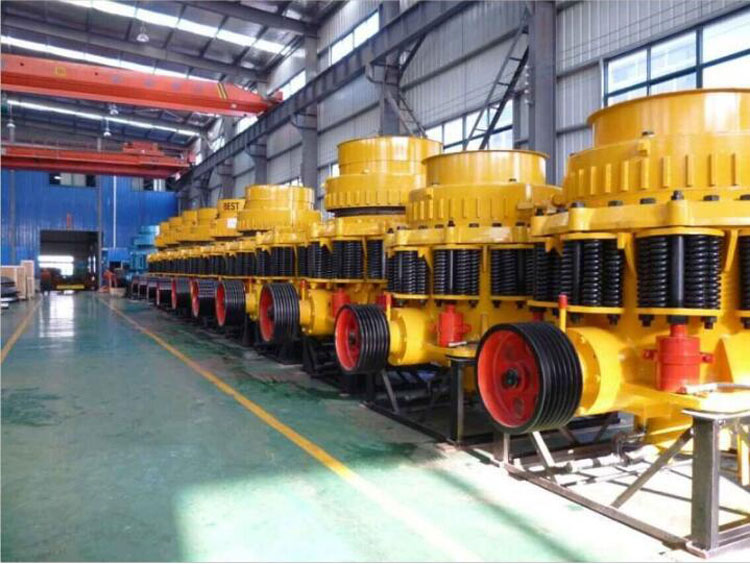

1.2 cone crusher.jpg

Feature

--Cone crusher has high design and manufacture quality long service life convenient repairing , lower cost . All of the maintenance work can be done easily

 on the top of the machine .

--New generation high performance cone with advantages of high capacity, cubicproduct shape high yield with desired fines

--Equipped with fully hydraulic system.Therefore operation is very easy; especiallytramp iron release is very quick and sensitive

--Cone crushers with different chambers are available, to meet our customers' requirements.

--As the overload protection device, spring safety device allows foreign matter and iron pieces to pass through the crushing chamber without jeopardizing  machines.

CS cone crusher details2.jpg

overal Dimension Drawing

Cs Cone Crusher

Technical Parameter

NO.ModelDia of cone (mm) CavityFeed opening size(mm)Output   size(mm)Mainshaft   rotation speed(r/min)Driving Power(kw)Capacity (t/h)Weigh(kg)Appearance size(mm)
Closing sizeOpening size
1CSB75900 (3)Fine831029-225807545-91152821×1880×2164
2Coarse15917513-3859-163
3CSB1101200  (4)Fine1271319-3148511063-188202821×1974×2651
4Mediun15615613-38100-200
5Coarse17819119-51141-308
6CSB1601295   (41/4)Fine10913713-31485160109-181272800×2342×2668
7Mediun18821016-38132-253
8Coarse21624119-51172-349
9CSB2201650  (51/2)Fine18820916-38485220181-327553911×2870×3771
10Mediun21324122-51258-417
11Coarse24126825-64299-635
12CSB3152134  (7)Fine25327819-38435315381-7261104613×3251×4732
13Mediun30333425-51608-998
14Coarse33436931-64789-1270


NO.ModelDia of cone (mm) CavityFeed opening size(mm)Output   size(mm)Mainshaft   rotation speed(r/min)Driving Power(kw)Capacity (t/h)Weigh(kg)Appearance size(mm)
Closing sizeOpening size
1CSD75914 (3)细型13413-335807527-90152821×1880×2410
2粗型33603-1627-100
3CSD1101218  (4)细型29575-1648511050-132202560×1942×2928
4中型447310-1690-145
5粗型568913-19141-181
6CSD1601295   (41/4)细型29643-1648516036-163272800×2342×2668
7中型54896-1682-163
8粗型7010510-25109-227
9CSD2201676  (51/2)细型35705-1348522090-209553917×2870×3771
10中型54896-19136-281
11粗型
