China Manufacturers PCH Series Ring Hammer Crusher For Sale

China Manufacturers PCH Series Ring Hammer Crusher For Sale

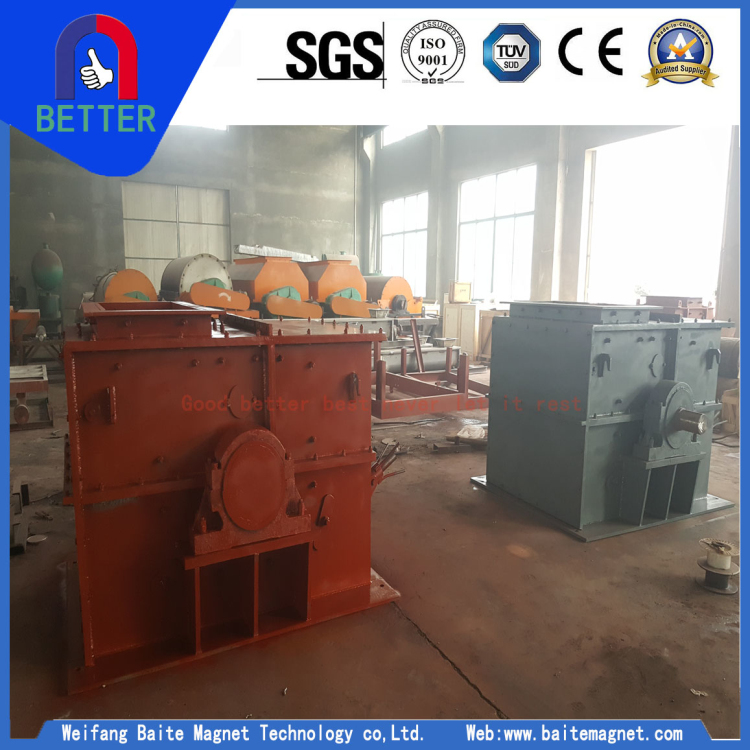

Model: PCH Series Ring Hammer Crusher
PCH ring hammer crusher is a high-tech new product made by Chinese manufacturers. High crushing rate, energy saving, low noise and dust.PCH series ring hammer crusher is a kind of a ring hammer impact crusher rotor, ring hammer can rotate with the spinor, not only can orbit rotates, material into the crusher, hammer crusher in lumen by rotor high-speed rotating ring hammer impact and breakage, be broken material obtained from ring hammer kinetic energy at the same time, the high-speed rushed to crushing plate was broken for the first time, and then fall on the sieve plate, ring hammer of shear, extrusion, grinding and material mutual collision, a further broken material. And through the sieve pore eduction closed, can not be broken debris by ring hammer into metal collector, regularly cleared by the operating personnel.

Print Product Summary

*Brand:Baite
*Color:Multi Color
*Voltage:380V
*Weight:1T
*Material:Stainless Steel
*Warranty Period:1 Year
*Country Of Origin:Shandong, China (Mainland)
*After-Sales-Service:Technical Service
*Dimension:Customized
*Price:Negotation

rechal@baitecidian.com

+86-536-8309116

Specification

Introduction

We adapt the latest manufacturing technology and the unique structural design. The finished stone product is cube and has no tension or cracks. The grain

shape is quite good. Impact crusher can handle each kind of coarse, medium and fine materials ores, rocks (granite, limestone, concrete, etc.), which

particle size is not more than 120-500 mm and compressive strength is below 320 MPa.
Impact crusher is widely used in water and electricity, highway, artificial aggregate, crushing and other industries. This series of impact crusher has unique

structure.It's equipped with high chrome hammer.Its unique counterattack lining is suitable for hard rock crushing and energy efficient. Nesting particle

size can be adjusted to simplified crushing process. This crusher has large crushing ratio, high crushing efficiency, cubic shape and optional broken, etc. .

pch ring hammer crusher for stone crushing Application

Impact Crusher Can be used in crushing various ore,such as iron ore,copper ore,gold ore,Marble,pebbles,bluestone crushing plant.

Feature

--. The working hammer adopts new technology for casting, so that it is wear resistant and impact resistant.

--.The granularity can be adjusted according to the requirement of the customers.

--. Hammer crusher has a sealed structure which solves the problems of powder dust pollution in the crushing workshop and ash leakage of the machine.

--.This crusher has the advantages of attractive appearance, compact structure and few easy-wearing parts and convenient maintenance.

Working Principle Drawing

Technical Parameter

NO.	Model	Rotor diameter×length （mm）	Rotate speed（r/min）	Maxfeed size (mm)	Discharging size (mm)	Capacity (t/h)	Electric motor				Naoli value	Maximum separatiom（kg）	Weight（T）
NO.	Model	Rotor diameter×length （mm）	Rotate speed（r/min）	Maxfeed size (mm)	Discharging size (mm)	Capacity (t/h)	Model	Power（kw）	Voltage（V）	Weight（kg）	Naoli value	Maximum separatiom（kg）	Weight（T）
1	PCH-0402	400×200	960	200	≤30	8-12	Y132M2-6	5.5	380/6000	110	0.165	190	800
2	PCH-0404	400×400	970	200		16-25	Y160L-6	11		150	0.252	300	1050
3	PCH-0604	600×400	970	200		22-33	Y180L-6	15		170	0.309	540	1430
4	PCH-0606	600×600	980	200		30-60	Y225M-6	30		360	0.610	730	1770
5	PCH-0808	800×800	740	200		75-105	Y280M-8	45		600	0.495	1400	3600
6	PCH-10101	1000×1000	740	300		160-200	Y315M2-8	90		1100	0.780	2700	6100
6	PCH-10101	1000×1000	740	300		200-245	Y135M2-8	110		1200	0.780	2700	6100
7	PCH-1016	1000×1600	740	300		300-350	Y355M2-8	160		1600	1.271	3280	9200
7	PCH-1016	1000×1600	740	300		400-500	Y400M2-8	220		3100	1.271	3280	9200
8	PCH-1216	1200×1600	740	400		500-620	Y400M2-8	280		3600	2.310	5100	15000
8	PCH-1216	1200×1600	740	400		620-800	Y450M2-8	355		4100	2.310	5100	15000

PCH hammer crusher details1.jpg

PCH hammer crusher details2.jpg
