High Efficency Yk Series Vibrating Screen With Factory Price for Sale
High Efficency Yk Series Vibrating Screen With Factory Price for Sale
High Efficency Yk Series Vibrating Screen With Factory Price for Sale
YK series circular vibrating screen is also called YK series circular vibrating screen, the eccentric shaft is used as the excitation power, using the motor drives the eccentric shaft rotation, linkage vibrating screen do after, before, after the circular trajectory, cause the materials uniform screening, slip through sieve and screening work done quickly. YK series circular vibrating screen is made in Germany technology efficient vibrating screen. Suitable quarry screening application, also for coal preparation, ore dressing, building materials, electricity and chemical industries for product classification.
Print Product Summary
  • *Brand:Baite
  • *Color:Multi Color
  • *Voltage:220V
  • *Weight:1T
  • *Material:Stainless Steel
  • *Warranty Period:1 Year
  • *Country Of Origin:Shandong, China (Mainland)
  • *After-Sales-Service:Technical Service
  • *Dimension:Customized
  • *Price:Negotation
rechal@baitecidian.com
+86-536-8309116
Specification

Introduction

YK Series Circular Vibrating Screen is a product developed by our company according to customers’ needs, introducing foreign advanced technology. Its

vibration parameters are matchable with that of the German KHD screen machines.The sieve chamber of the series follows a round path.It is mainly used

in classification of coal, limestone, gravel, grit, metal or non-metallic ores and other materials screening.

0 circular vibrating screen.jpg

Features
(1) High vibrating force with unique eccentric structure. Adopt advanced construction, making the vibrating force powerful.
(2) The beam and case of the screen are connected with high strength bolts without welding.
(3) Simple structure, easy to repair.
(4) Adopt tire coupling and soft connection makes operation smooth.
(5) High efficiency, easy maintenance, sturdy and durable.

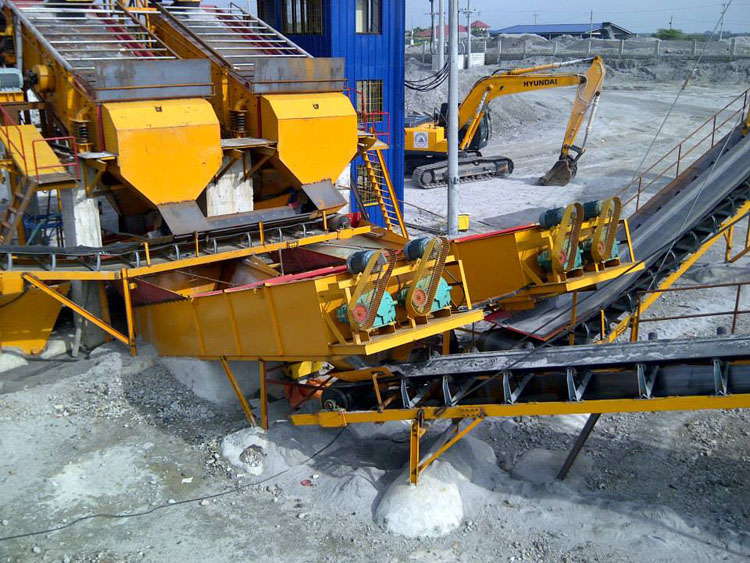

1 vibration screen manufacturers.jpg

Working Principle
The motor makes the exciter swing rotate speedily through the tire coupling. The continuous forced circular motions of sieve box were achieved through

the powerful centrifugal force. Under the influence of sieve box, the materiel are tossed forward successively on the mesh. they were classified as thrown

up, and the particles smaller than the mesh size were sieved out when they are falling, so that the classification of material could be achieved.

Technical Parameter

NO.ModeSpec
    Of screen  (mm)		Size of Sieve Pore      (mm)Feeding Size  （mm）Capacity (t/h)Motor Power（kw）Vibration frequency   (r/min)Double
    amplitude（mm)
1YK-15481500×4800≤70≤12050-200119607
22YK-15481500×4800≤12050-200119607
33YK-15481500×4800≤12050-200159607
44YK-15481500×4800≤12050-20018.59607
52YK-18601800×6000≤20080-28018.57308
63YK-18601800×6000≤20080-280307308
74YK-18601800×6000≤20080-280307308
82YK-21602100×6000≤200100-450227308
93YK-21602100×6000≤200100-450307308
104YK-21602100×6000≤200100-450307308
112YK-24702400×7000≤400160-380307308
123YK-24702400×7000≤400160-450377308
134YK-24702400×7000≤400160-450457308

6 vibrating screen factory.jpg
