• *Brand:Baite
• *Color:Multi Color
• *Voltage:220V
• *Weight:1T
• *Material:Stainless Steel
• *Warranty Period:1 Year
• *Country Of Origin:Shandong, China (Mainland)
• *After-Sales-Service:Technical Service
• *Dimension:Customized
• *Price:Negotation

Introduction

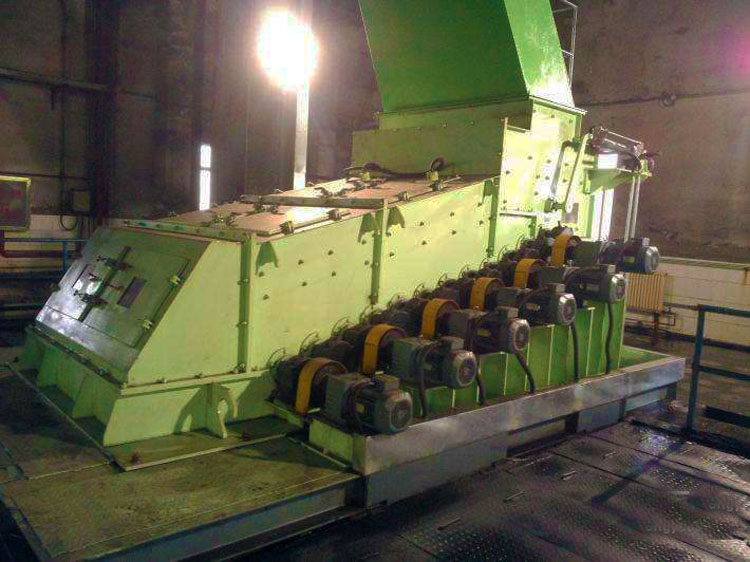

The roller screen is widely used in the coal conveying system of power plant. It is used for the coal crushing machine, the coal is larger than the screen hole material screening out, and then use the coal crushing machine for crushing, less than the screen hole by their own gravity directly into the system.At present, there are many problems in the use of traditional roller screen products, such as blocking, winding, poor sealing and powder leakage.But these problems can be sloved by our roll screen.

Technical Feature

1. Easy to replace wearing parts such as sieve shaft and sieve sheet.

2. Screen shaft is driven by roller table motor single shaft that can’t affect operation of machine.

3. Wear-resisting lining boards are installed on both sides of the box to avoid direct contact between materials and the box, which improve the service life of the equipment.

4. It is equipped with coal blocking alarm and electrical control safety protection to avoid equipment damage caused by abnormal operation.

Working principle

The screen shaft of the roller screen is arranged according to different working angles, so when the material runs at a higher working Angle, the speed is faster. When the material is running at a low working Angle, the speed is relatively gentle. Materials with two different speeds start to move in the axial direction when they meet at a certain position on the screen surface, so that the materials are evenly distributed on the screen surface and the purpose of improving the screening efficiency and accuracy is achieved.

Product maintenance

1. In the process of using the machine, check whether there are materials in the machine before starting up.

2. The machine should be started before feeding. When the machine is stopped, the material should be stopped first and then shut down. Make sure there is no material in the machine before stopping.

3. Lubricate the bearing every three months.

4. Check and repair the machine once every three months after it is put into use, and check whether the chain, sieve sheet, bolts of the whole machine, hydraulic push rod and other parts are loose.

5.When the screen is seriously damaged, can not achieve the purpose of screening should be timely replacement of a new screen.

6.Regular maintenance of hydraulic putter device, if the lack of hydraulic oil should be added in time.
