2500kg Capacity Electric Lifting Magnet In America
2500kg Capacity Electric Lifting Magnet In America
2500kg Capacity Electric Lifting Magnet In America
Model:MW5-80L/1 Electric Lifting Magnet
This type electric lifting magnet is designed for American Market.The lifting capacity is more than 2500kg. It adopts a special magnetic circuit design which has large air space and magnetism density. It is made of aluminum wire and the coil protection plate is made of the rolled high Mn steel plate that has good performance of wear-resistance and heat-proof..It has Three types for option:Normal temperature type,High temperature type,High frequency type.which has a series of characteristics,such as light weight, low power consumption, high lifting capacity and long serving life.
Print Product Summary
  • *Brand:Baite
  • *Color:Multi Color
  • *Voltage:440V
  • *Weight:1T
  • *Material:Stainless Steel
  • *Warranty Period:1 Year
  • *Country Of Origin:Shandong, China (Mainland)
  • *After-Sales-Service:Technical Service
  • *Dimension:Customized
  • *Price:Negotation
rechal@baitecidian.com
+86-536-8309116
Specification

product details.jpg

This is submersible type electromagnet,which is designed by our own factory basing advanced technology. MW5 electric lifting magnet series is widely apply to piling, metallurgy, casting, machine manufacture, transportation and so no ,forming complete set with lifting equipment equipments to carry out loading and handling the magnetic material such as pig irons and scrap steel.Adopting electric casting steel or low carbon steel with excellent magnetic conductivity and well finished performance as the conductor to the magnetic circuit.Use the entire seal structure with good moisture-proof performance.

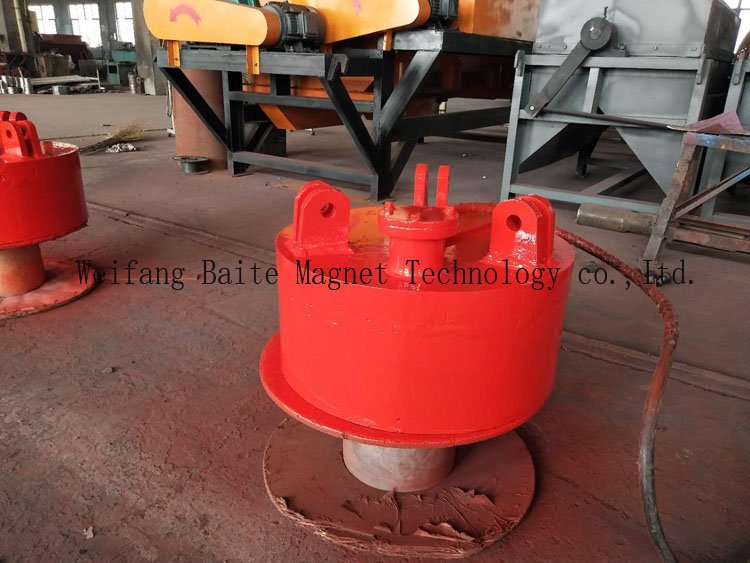

14 20 inch dia electric magnet.jpg

 Three types for option

  3.1 Normal temperature type (DC-220V TD-60%): for lifting normal temperature steel scraps.



  3.2 High temperature type (DC-220V TD-60%): for lifting high temperature steel scraps or lift steel scraps in high temperature environment. It is specially for used to lift steel scraps into furnace to make steel in steel plants. This magnet can handle the steel scraps under the temperature of 650°C.



  3.3 High frequency type (DC-220V TD-75%): for lifting normal temperature steel scraps in high frequency use. It can be operated more efficiently and frequently since the duty cycle is up to 75%.

The over-excitation control system (DC350/DC290V/DC-200V) is also available for large size magnet of this kind, in order to quicken the current, increasing speed and to exert stronger lifting capacity.

7 scrap electric lifting magnet.jpg

Technical Features
The protection plate for coil adopts abrasion-resisting and shockproof rolling high-manganese steel.
The electromagnet is dealt with special technology, thus insulation grade can be up to Grade F.
Coils of magnets are made of Aluminum (flat aluminum wire covered by double spun glass) or cooper.
High lifting capacity, light self-weight.
Low power consumption, long service life.

7 electric lifting magnet manufacturers.jpg

Work principle

When electromagnet works, the power source and the controlling device supply direct current to the electromagnet. A strong magnetic field will be generated inside the electromagnet, the magnetic field gives enough strong magnetic force on the material through the shell magnetic circuit and the operating clearance to lift the bulk material .

8 electric lifting magnet manufacturers.jpg

Technical Parameters

Model

Electric
current
(A)

Cold-state
power
(kw)

lifting capacity (kg)              cold/hot state

Mass
(kg)

  Overall dimension (mm)

steel
ball

  cast
iron

steel
scrap

A

B

C

D

E

MW5-70L/1

15

3.3

2500

380/200

120/100

490

700

800

160

90

30

MW5-80L/1

18

3.96

3000

480/250

150/300

620

800

800

160

90

30

MW5-90L/1

26.6

5.9

4500

650/440

250/200

800

900

1090

200

125

40

MW5-110L/1

35

7.7

6500

1000/800

450/400

1350

1100

1140

220

150

45

MW5-120L/1

45.5

10

7500

1300/1000

600/500

1700

1200

1100

220

150

45

MW5-130L/1

54

12

8500

1400/1100

700/600

2010

1300

1240

250

175

50

MW5-150L/1

71.2

15.6

11000

1900/1500

1100/900

2830

1500

1250

350

210

60

MW5-165L/1

75

16.5

12500

2300/1800

1300/1100

3200

1650

1590

370

230

75

MW5-180L/1

102

22.5

14500

2750/2100

1600/1350

4230

1800

1490

370

230

75

MW5-210L/1

129

28.4

21000

3500/2800

2200/1850

7000

2100

1860

400

250

80

MW5-240L/1

15433.6260003500/28002850/230090002400
202045028090

Note:1.There are two kinds:room temperature and high tewmperature.Please note in advance when the users place order.

2.The power-off protection device is optional product,please buy as the users like.




2 billet lifting.jpg

5 electric lifting magnet manufacturers.jpg

company information.jpg

Company & Customer Visiting
There is no better , only better.
Weifang baite Magnet Technology Co., Ltd . is a modern joint-stock enterprise, which is producing magnetic and power equipment .The service is related to more than 10 areas ,such as electricity , coal ,building materials, metallurgy ,ports ,mining ,nonferrous metals ,power environmental production .At present ,we  have provided more than 3000 domestic customers with reliable and value-added and convenient professional equipment and programes, and at the same time ,we occupy more than 60%magnetic separation equipmemt matching share of China ball mill, crusher, iron sand ship and other production industry, Baite has firmly implemented IS09001:2000 international quality magnagement system standard and IS010012 international quality inspection syste
m standard.
Factory Advantages & Service
Baitemagnet factory for general users and special users design and production of various types of customized products.The company owns 3, 000 square meters of mine machinery production plant in linqu area of weifang, and each product has a separate workshop to assemble specialized production workers.Most of our products are self-developed products, combining with advanced technology at home and abroad to ensure that the industry is competitive and fully meets the technical requirements of customers.Our production capacity is strong, and we have a special production line for customers who are in urgent need of the goods.
We are full of enthusiasm, high quality service, think the customer value is the principle. Provide the spare parts and vulnerable parts of the products at the factory price.
Once the equipment failure in the process of production, the company within 24 hours to the customer's phone must come up with a clear solution, and to resume production first and then the responsibility attitude quickly solve the problem.
