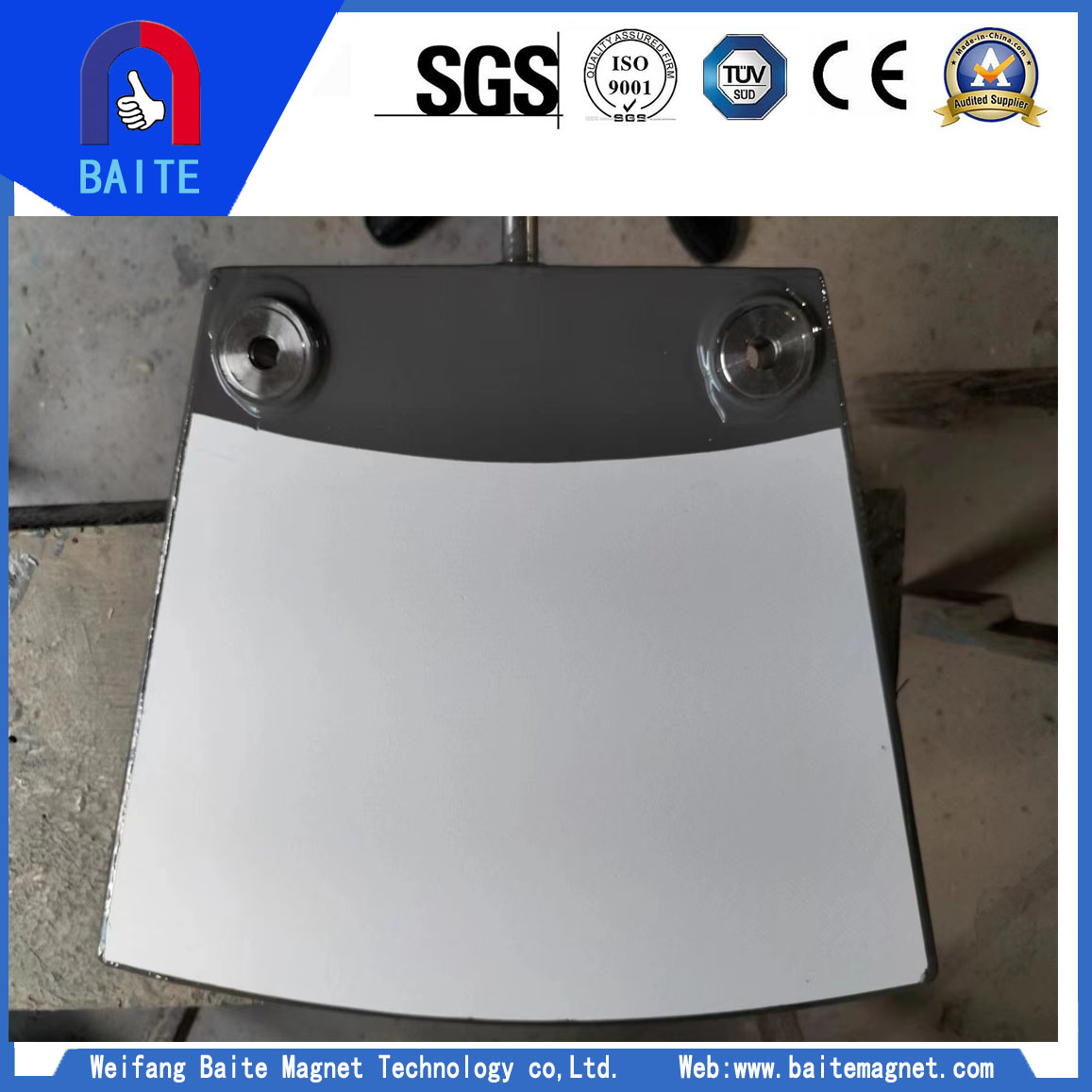

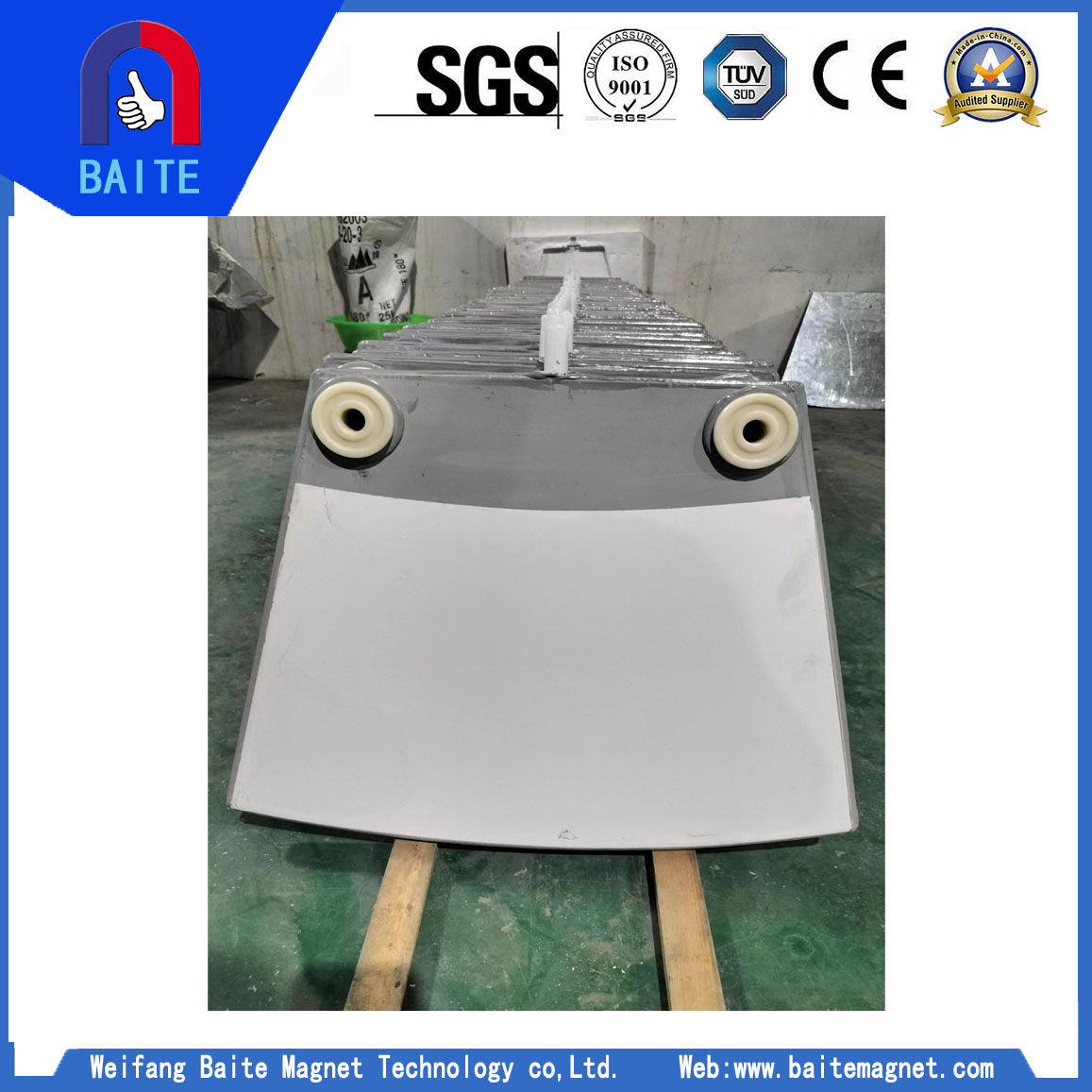

Best Price Ceramic Vacuum Filter Plate for Mining
Best Price Ceramic Vacuum Filter Plate for Mining
Best Price Ceramic Vacuum Filter Plate for Mining
Technical feature
1, the filtration accuracy covers fine filtration, microfiltration, ultrafiltration, nanofiltration, reverse osmosis;
2, high mechanical strength, stable chemical properties, good wear resistance, low resistance, blockage resistance, easy recoil;
3, high efficiency, high yield, filter aperture uniform and stable.
4.Easy to maintain,easy installation,reliable performance.
5.Trouble-free operation for a long time.
Print Product Summary
  • *Brand:Baite
  • *Color:Multi Color
  • *Voltage:380V
  • *Weight:1T
  • *Material:Stainless Steel
  • *Warranty Period:1 Year
  • *Country Of Origin:Shandong, China (Mainland)
  • *After-Sales-Service:Technical Service
  • *Dimension:Customized
  • *Price:Negotation
rechal@baitecidian.com
+86-536-8309116
Specification

Our company produces the ceramic filter plate is divided into white corundum and brown fused alumina products, they are widely used in non-ferrous, black metal mines in mining, metallurgy, coal, chemical industry, food, etc.Microporous ceramic filter adopts Inorganic membrane microfiltration material, It is a new technological breakthrough in this field.The composite porous ceramic filter plate is made of white corundum, brown corundum and silicon carbide that is made of fine pore and uniform pore diameter.Then it is coated with a membrane with superfine pores,After the secondary firing, it is compounded into a fan plate with double-sided ceramic filter membrane.The surface film aperture is between 0.1 and 5 microns.It is composed of innumerable micropores distributed evenly.It has good permeability, and the permeability is 1100L/m2H~1800L/m2H.



Dimension mmModel
2#3#4#5#6#
A-Chord length of outer arc382486548564597
B-Length of lower bottom2282973403-3297
C-Center distance of assembly circle166239276239236
E-From center of assembly circle to bottom3535353543
e-Outside Dia. of water nozzle1414,191919,2121
H-Vertical height of plate316396441540616
K-Thickness of plate2525,303030,3232
Note:
Value C and Value K can be adjusted according to customer requirements.
We can produce non-standard products according to customers' requirements.





Application
Ceramic filter plate has been widely used in iron ore concentrate, zinc concentrate, sulphur concentrate, copper concentrate, nickel, molybdenum concentrate, lead concentrate, tungsten concentrate, manganese, vanadium ore, aluminum ore concentrate, gold concentrate, nonmetal ore concentrate filtration dehydration and coal mine concentrate, fine chemical industry, paper making, pharmacy, chemical fiber, food, environmental protection and other industries of solid-liquid separation



1 disc vacuum filter369886.jpg
