CE Disk Tailing Recovery Machine For India
CE Disk Tailing Recovery Machine For India
CE Disk Tailing Recovery Machine For India
Tailings is the potential treasure.Our product is designed for recovery these magnetic materials.Such as in India,the recycled magnetic materials can bu used for mining,metallurgy,coal,electricity,nonferrous metal plants and so on industries.It not only reduce the waste,but also improve the efficiency and environment benefit.We are professional manufacturer for mining equipment and parts,which all passed CE certification.Welcome to our factory having a visit.
Print Product Summary
  • *Brand:Baite
  • *Color:Multi Color
  • *Voltage:22V
  • *Weight:1T
  • *Material:Stainless Steel
  • *Warranty Period:1 Year
  • *Country Of Origin:Shandong, China (Mainland)
  • *After-Sales-Service:Technical Service
  • *Dimension:Customized
  • *Price:Negotation
rechal@baitecidian.com
+86-536-8309116
Specification

Introduction


We are the gold manufacturer and supplier for mining equipment from China.

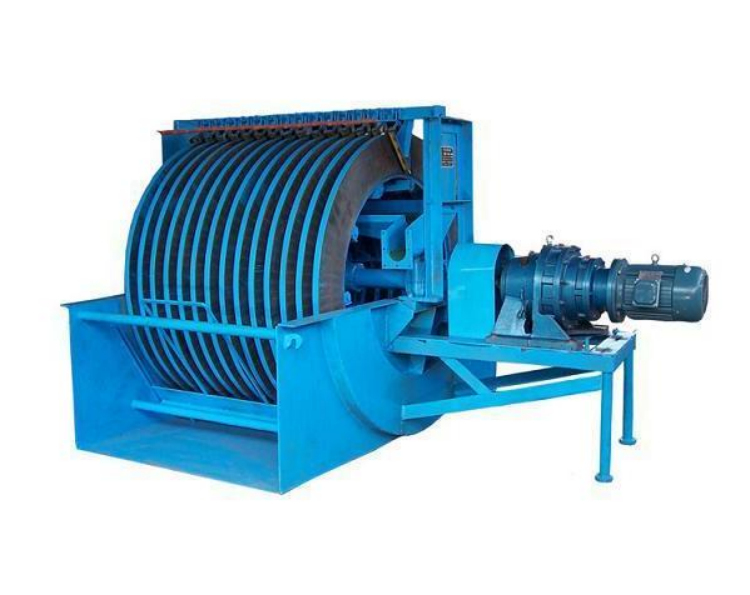

RCKW permanent magnet disc tailings recovery machine is composed of main engine, unloading device, collecting trough, chute and rack.The disk magnets is installed in a chute, slurry flowed from one end of the chute and through the gaps in the disk and disk, magnetic minerals in the pulp was adsorbed on the surface of disk, the remaining non-magnetic minerals of pulpfolwed from chute at the other end. Hosting the stone plate is rotating, magnetic mineral adsorption in the disk surface is out of the mine slurry surface, when to enter the discharge within the mining area, the unloading device inserted into the gap between the disk.magnetic minerals is put into the collecting slot and outputed together.

1 tailings recovery machine.jpg

Technical feature

1.High handling capacity, high recovery rate and low water consumption.

The magnetic field depth of the disk is made up composite magnetic system, which is composed of polymagnetic and other technologies. The field is high and the gradient is large. Compared with other similar products, the recycling amount is 2-3 times.

2. The unloading is easy and the magnetic block is not worn.

Using mobile magnetic field technology and prevent the damage in the processing from the using production.

3. Simple structure and low consumption

Using common cycloidal reducer, without complex speed regulation system and complex induction plate discharging device, itsenergy saving is increased 5%- 25% than other products.And it overcome the disk looseness, string axis, etc.

4. High intensity and Long service life

It has strong magnetic field intensity.It was made up of high remanence and high coercivity rare earth permanent magnet NdFeB material.ensure the magnetism can not be affected by environmental temperature and mechanical vibration. High intensity magnetic ensured that the magnetism can not be affected by environmental temperature and mechanical vibration.

2 tailings recovery machine1.jpg

3 tailings recovery machine1.jpg

Application

Tailing recovery machine is widely used in metallurgy,mining,nonferrous metals,gold,building materials,electricity,coal preparation plants,iron and steel plants slintering plants and ect.

Company & Customer Visiting

There is no better , only better.
Weifang baite Magnet Technology Co., Ltd . is a modern joint-stock enterprise, which is producing magnetic and power equipment .The service is related to more than 10 areas ,such as electricity , coal ,building materials, metallurgy ,ports ,mining ,nonferrous metals ,power environmental production .At present ,we  have provided more than 3000 domestic customers with reliable and value-added and convenient professional equipment and programes, and at the same time ,we occupy more than 60%magnetic separation equipmemt matching share of China ball mill, crusher, iron sand ship and other production industry, Baite has firmly implemented IS09001:2000 international quality magnagement system standard and IS010012 international quality inspection system standard.

new customer visiting.jpg

Factory Advantages & Service

Baitemagnet factory for general users and special users design and production of various types of customized products.The company owns 3, 000 square meters of mine machinery production plant in linqu area of weifang, and each product has a separate workshop to assemble specialized production workers.Most of our products are self-developed products, combining with advanced technology at home and abroad to ensure that the industry is competitive and fully meets the technical requirements of customers.Our production capacity is strong, and we have a special production line for customers who are in urgent need of the goods.

We are full of enthusiasm, high quality service, think the customer value is the principle. Provide the spare parts and vulnerable parts of the products at the factory price.
Once the equipment failure in the process of production, the company within 24 hours to the customer's phone must come up with a clear solution, and to resume production first and then the responsibility attitude quickly solve the problem.

new work factory.jpg

Notes

1. Equipment name, specification, type, quantity and supporting device name and special requirements.

2. The user shall provide the center distance between the conveyor (bandwidth, belt speed), the center distance between the two bearing blocks, the grain size, temperature, iron impurity content and installation space dimensions.
