ISO Wet Magnetc Separator Manufacturers For South Africa
ISO Wet Magnetc Separator Manufacturers For South Africa
ISO Wet Magnetc Separator Manufacturers For South Africa
Model:CTX-618 Wet Magnetic Separator
We are the professional manufacturer and exporter from China for mining equipment,such as magnetic separator,crusher,vibration feeder, conveyor and so on basing strong maket position and advanced technology .All of them are strictly according to ISO9001 and CE certification.This wet permanent magnetic separator is pretty much used to separate the wet magnetic particals or eliminate the wast magnetic from non-magnetic mineral in South Africa.The weight loss max 3% after 10 years for permanent magnet.It is also suitable for foodstuff ,ceramics,cement,chemical,feed,steel,glass industry .We have experience to handle the OEM orders.Welcome to visit our website.
Print Product Summary
  • *Brand:Baite
  • *Color:Multi Color
  • *Voltage:220V
  • *Weight:1T
  • *Material:Stainless Steel
  • *Warranty Period:1 Year
  • *Country Of Origin:Shandong, China (Mainland)
  • *After-Sales-Service:Technical Service
  • *Dimension:Customized
  • *Price:Negotation
rechal@baitecidian.com
+86-536-8309116
Specification

product details.jpg

CTS is a wet type magnetic separator,which is  suitable for 6-0mm feed size.

CTS permanent-magnet drum separator is suitable for mining, coal preparation plant and other units for weak magnetic field wet separation of fine particles of strong magnetic minerals, or eliminate the waste magnetic from non-magnetic minerals The machine has three kinds of channels: half current tank ; The flow troughand the current channel.which meet the requirements of usersfor different particle size and different selection process.

1 CTB magnetic roller separator.jpg


Technical Feature

1.Adopting advanced magnetic circuit design,deep magnetic effective depth and high recovery.

2.Simple and compact structure,low failure rate.
3.Easy to maintain,easy installation ,reliable performance.
4.Stable and reliable driving device,trouble-free operation for a long time.
5.Magnetic fields are divided into fixed and rotary types.
6.It was made up of high remanence and high coercivity rare earth permanent magnet NdFeB material.

Dimension


2 CTB magnetic roller separator.jpg

Technical Parameters

NO.

Model

Roller size   (mm)

Roller surface magnetic induction density(GS)

Capacity

Driving Power(kw)

Roller rotating speed (r/min)

Weigh(kg)

Geometric center value

Sweeping and separating area average value

Highest magnetic density

T/h

m³/h

1

CTS(N、B)-618

600×1800

1400

1000-4500

2000-6000

15-30

48

2.2

40

1300

2

CTS(N、B)-712

750×1200

1400

1000-4500

2000-6000

15-30

48

3

35

1500

3

CTS(N、B)-718

750×1800

1600

1000-4500

2000-6000

20-28

72

3

28

2100

4

CTS(N、B)-918

900×1800

1600

1000-4500

2000-6000

25-55

90

4

28

2600

5

CTS(N、B)-924

900×2400

1600

1000-4500

2000-6000

35-70

110

4

28

3000

6

CTS(N、B)-1021

1050×2100

1600

1000-4500

2000-6000

55-110

160

5.5

22

3500

7

CTS(N、B)-1024

1050×2400

1600

1000-4500

2000-6000

55-110

160

5.5

22

3500

8

CTS(N、B)-1030

1050×3000

1600

1000-4500

2000-6000

70-120

200

7.5

22

4500

9

CTS(N、B)-1230

1200×3000

1600

1000-4500

2000-6000

70-120

200

11

22

5000

10

CTS(N、B)-1240

1200×4000

1600

1000-4500

2000-6000

100-150

250

15

22

6000

11

CTS(N、B)-1530

1500×3000

1800

1000-4500

2000-6000

120-150

220

15

20

6500

12

CTS(N、B)-1540

1500×4000

1800

1000-4500

2000-6000

150-180

300

18.5

20

8000

Note:The strength of the magnetic field can be customized according to customer requirements,from 800gs-10000gs.piease indicate in the contract.

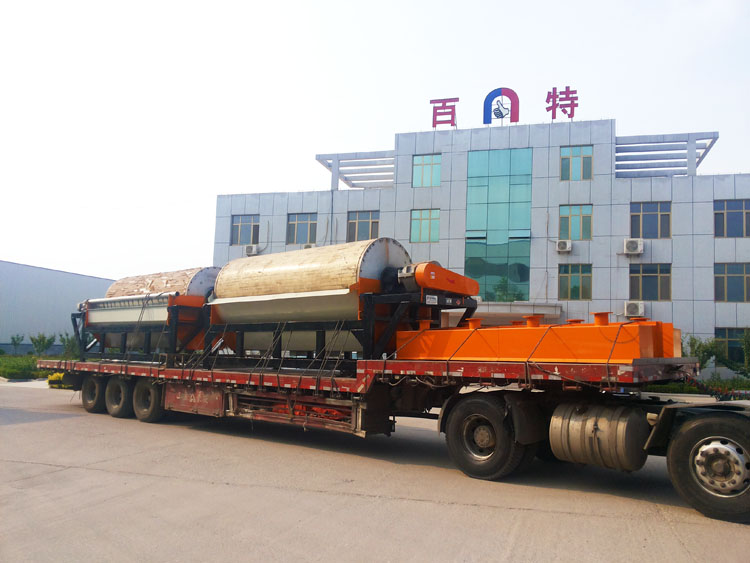

Make A Delivery

5 CTB magnetic roller separtor.jpg

6 wet magnetic separator exporter China.jpg


company information.jpg

Company & Customer Visiting
There is no better , only better.
Weifang baite Magnet Technology Co., Ltd . is a modern joint-stock enterprise, which is producing magnetic and power equipment .The service is related to more than 10 areas ,such as electricity , coal ,building materials, metallurgy ,ports ,mining ,nonferrous metals ,power environmental production .At present ,we  have provided more than 3000 domestic customers with reliable and value-added and convenient professional equipment and programes, and at the same time ,we occupy more than 60%magnetic separation equipmemt matching share of China ball mill, crusher, iron sand ship and other production industry, Baite has firmly implemented IS09001:2000 international quality magnagement system standard and IS010012 international quality inspection system standard.
