Indonesia Magnetic Deslimer Manufacturers For Copper Ore
Indonesia Magnetic Deslimer Manufacturers For Copper Ore
Indonesia Magnetic Deslimer Manufacturers For Copper Ore
Model:Magnetic Deslimer
We are the professional manufacturer for mining equipment ,such as magnetic sepaartor,crusher,magnetic deslimer,grinding machine and so on. This magnetic deslimer is pretty much for Indonesia for cleaning upthe copper ore for mining using.It mainly used for Indonesia inselection of magnetite as well as concentrating operation. The machine need no power, with simple structure and good desliming effect.
Print Product Summary
  • *Brand:Baite
  • *Color:Multi Color
  • *Voltage:220V
  • *Weight:1T
  • *Material:Stainless Steel
  • *Warranty Period:1 Year
  • *Country Of Origin:Shandong, China (Mainland)
  • *After-Sales-Service:Technical Service
  • *Dimension:Customized
  • *Price:Negotation
rechal@baitecidian.com
+86-536-8309116
Specification

product details.jpg

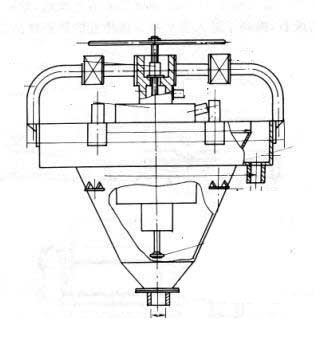

It mainly used for selection of magnetite as well as concentrating operation. The machine need no power, with simple structure and good desliming effect. BCT magnetic desliming machine includes external barrel with tapered bottom and internal barrel fixed to inner cavity of external barrel. The inwall of external barrel has multiple-story magnet stand. There is magnet on the stand, outlet port of the feed is on the low end of the tapered bottom of external barrel and has the plug. The plug is connected to the leading screw passing internal barrel. There is a water inlet on the tapered bottom of external barrel and overflow box is on the top of the external barrel. There is a water outlet on the bottom of the overflow box, the pulp distribution groove is on the top of the internal barrel, and there is a pulp distribution mouth on the bottom of pulp distribution groove.

The device can separate gangue and lean ore intergrowth from the concentrate, with its effective separation granularity scope below 60, mainly used for selection of magnetite as well as concentrating operation. The machine can obtain qualified concentrate when granularity scope is relax, and can improve 15 percentage point of iron powder grade. It is used after magnetic separator, conducting desliming of iron powder separated by the magnetic separator. The machine need no power, with simple structure and good desliming effect.

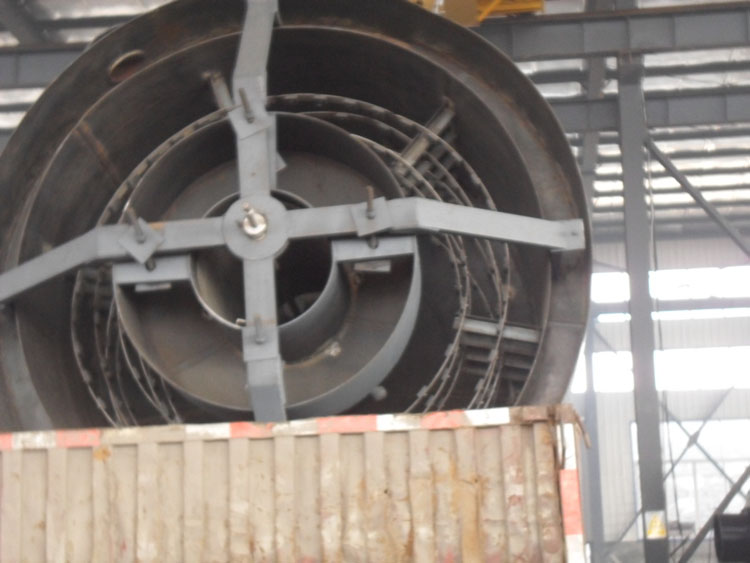

1 magnetic deslimer.jpg


Technical Feature

--  Good adaptability and wide applications.

-- The wholly sealed structure makes the machine dust-proof and corrosion resisting.
--  No energy consumption.
--  Easy to install and convenient to use.
--  High efficiency and stable performance.

--  High processing capacity and a long service life


Technical Parameter


NO.ModelDiameter of drum(mm)Diameter of discharge opening(mm)Processing capacity(t/h)Weigh (kg)
1CS-10100030015-301050
2CS-15150035020-451400
3CS-20200037025-551850
4CS-25250040030-652300
5CS-30300045035-752860
6CS-35350050040-853470


Note:The dimension can be customized according to different requirement of users.

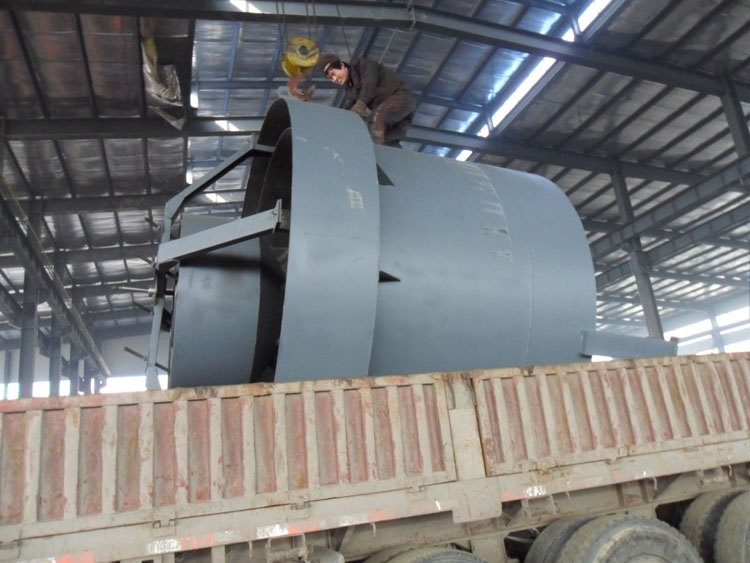

Make A Delivery

3 magnetic deslimer.jpg


company introduction.jpg

There is no better , only better.

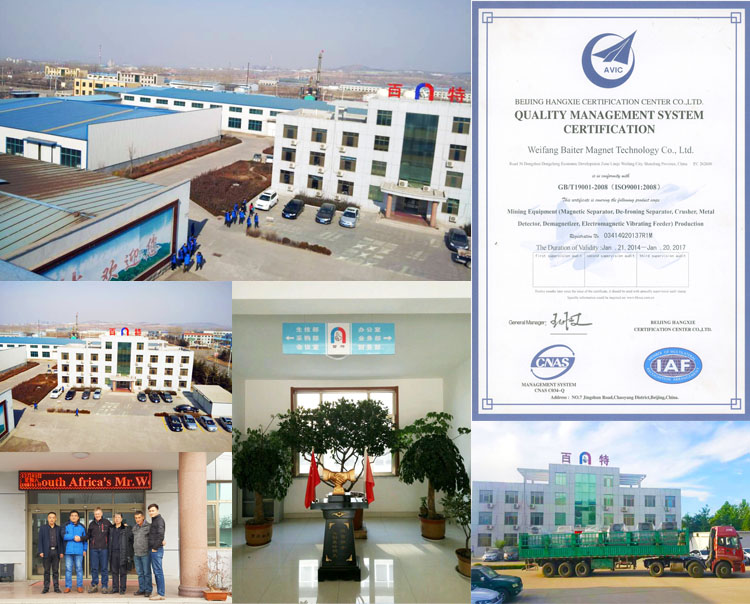

Weifang baite Magnet Technology Co., Ltd . is a modern joint-stock enterprise, which is producing magnetic and power equipment .The service is related to more than 10 areas ,such as electricity , coal ,building materials, metallurgy ,ports ,mining ,nonferrous metals ,power environmental production .At present ,we  have provided more than 3000 domestic customers with reliable and value-added and convenient professional equipment and programes, and at the same time ,we occupy more than 60%magnetic separation equipmemt matching share of China ball mill, crusher, iron sand ship and other production industry, Baite has firmly implemented IS09001:2000 international quality magnagement system standard and IS010012 international quality inspection system standard.

customer coorperation visiting.jpg

Baitemagnet factory for general users and special users design and production of various types of customized products.The company owns 3, 000 square meters of mine machinery production plant in linqu area of weifang, and each product has a separate workshop to assemble specialized production workers.Most of our products are self-developed products, combining with advanced technology at home and abroad to ensure that the industry is competitive and fully meets the technical requirements of customers.Our production capacity is strong, and we have a special production line for customers who are in urgent need of the goods.
We are full of enthusiasm, high quality service, think the customer value is the principle. Provide the spare parts and vulnerable parts of the products at the factory price.
Once the equipment failure in the process of production, the company within 24 hours to the customer's phone must come up with a clear solution, and to resume production first and then the responsibility attitude quickly solve the problem.

own company informantion.jpg
