RCDC High Efficiency Wind-Cooling Suspension Magnetic Separator For Gold Mining Machinery
RCDC High Efficiency Wind-Cooling Suspension Magnetic Separator For Gold Mining Machinery
RCDC High Efficiency Wind-Cooling Suspension Magnetic Separator For Gold Mining Machinery
Model:RCDC Wind-Cooling Suspension Magnetic Separator
RCDC magnetic separator is designed by WEIFANG BAITE basing advanced technology.Which is suitable for the better environment with little dust to eliminate the waste iron and protect extraction roll,crusher ,mill and so on.
Print Product Summary
  • *Brand:Baite
  • *Color:Multi Color
  • *Voltage:220V
  • *Weight:1T
  • *Material:Stainless Steel
  • *Warranty Period:1 Year
  • *Country Of Origin:Shandong, China (Mainland)
  • *After-Sales-Service:Technical Service
  • *Dimension:Customized
  • *Price:Negotation
rechal@baitecidian.com
+86-536-8309116
Specification

Introduction:

Series RCDC air cooled auto cleaning belt electromagnetic iron separator is added with a driving motor, two drums, an iron-cleaning

 belt on the basis of series RCDA, also using an air blower for air cooling. This machine is usually suspended above the conveyor belt,

vibrating feeder or chute to collect magnetic elements especially ferrous elements from non-magnetic materials and clean the magnetic

elements automatically. This product has a strong magnetic intensity and a long service life. It is dust proof, waterproof, fast radiating,

auto cleaning and corrosion-resistant.

Electromagnetic separators are widely used in the fields such as power station, mines, metallurgy plants, construction materials, food,

etc. They possess many advantages, such as low temperature rise, good insulation, strong magnetic force, low power consumption and

 reliable performance.

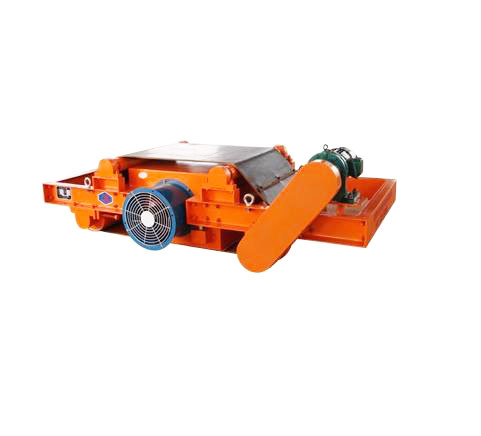

1 electromagnetic ore separator.jpg

Features:

--  Strong magnetic intensity and special design for magnetic circuit.
--  The sealed structure makes the separator water-proof, dust-proof and corrosion resisting.
--  Low energy consumption.
--  Easy to install and convenient to use.
--  High efficiency and stable performance.

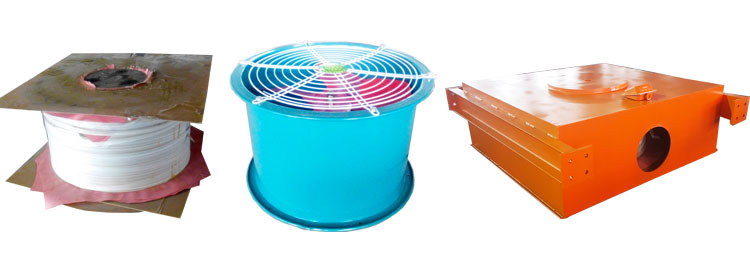

3 electromagnetic separator exporter.jpg

overal Dimension Drawing

RCDC Air-cooling Self-cleaning Electromagnetic Separator

Working Principle Drawing

RCDC Air-cooling Self-cleaning Electromagnetic Separator

Technical Parameter


NO.Modelconveyor belt width  (mm)Suspension height（h=mm）Material depth（≤mm）Magnetic intensity（≥mt）Existing power （≤kw）Belt speed（m/s）Driving Power（kw）Weight（kg)Appearance   size(mm)
ABCDE
1RCDC-5500150100601.24.51.5108019009657207501030
2RCDC-6600175120602.51.51350205011708108001150
3RCDC-6.5650200150703.01.51530216513708208881233
4RCDC-8800250200706.02.221002350142086010311300
5RCDC-101000300250708.03.033802660170088012311500
6RCDC-1212003503007011.04.041502860185095015051700
7RCDC-1414004003507014.05.5550032252070102016741950
8RCDC-1616004504007016.07.5690036002270105018742400
9RCDC-1818005004508020.07.5880043002570116021002850
Note:All themodels have T1、T2、T3design whose   magnetic intensity is higher than standard.The magnetic 90mt,120mt and 150mt   separately,Discard iron belt can be equipped with armor.

RCDC Air-cooling Self-cleaning Electromagnetic Separator
