RCDD Series Strong Power Self-cleaning Magnetic Separator With 7000Guass For Iron Ore Or Gold Mining Machine
RCDD Series Strong Power Self-cleaning Magnetic Separator With 7000Guass For Iron Ore Or Gold Mining Machine
RCDD Series Strong Power Self-cleaning Magnetic Separator With 7000Guass For Iron Ore Or Gold Mining Machine
RCDD dry dump electromagnetic iron remover, is super dry in RCDB series based on the electromagnetic iron remover, increasing the automatic unloading iron body modification products, for continuous automatic unloading iron, suitable for all kinds of harsh environments.
Print Product Summary
  • *Brand:Baite
  • *Color:Multi Color
  • *Voltage:220V
  • *Weight:<1T
  • *Material:Stainless Steel
  • *Warranty Period:1 Year
  • *Country Of Origin:Shandong, China (Mainland)
  • *After-Sales-Service:Technical Service
  • *Dimension:Customized
  • *Price:Negotation
rechal@baitecidian.com
+86-536-8309116
Specification

Introduction:

It is used to eliminate the powder or massive waste iron from the nonmagnetic material. The inner adopts the special resin to cast

with wholly sealed structure. It features with deep revealed magnetic depth, strong magnetic force, dust-protection and

rain-protection, erosion wearing and so on. It can be operated in the harsh environment.

Features:

-- By using the computer simulation magnetic circuit design, through magnetic depth, magnetic force is strong.

-- Special duct design, coil heat faster, low temperature.

--Coil adopts advanced insulation processing technology, with its anti corrosive.

--Automatic discharging iron. Easy maintenance, belt automatic correction

-- Product good compatibility, complete function.

RCDD magnetic separator details1.jpg

RCDD magnetic separator details3.jpg

RCDD magnetic separator details2.jpg

RCDD magnetic separator details4.jpg

RCDD magnetic separator details5.jpg

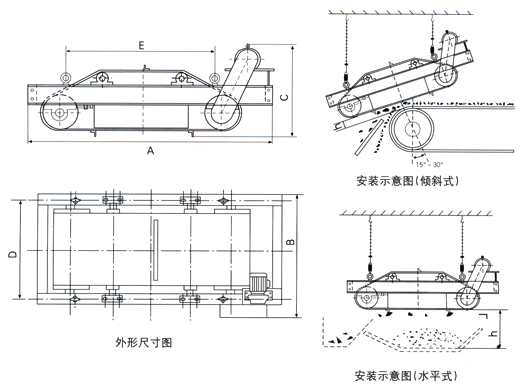

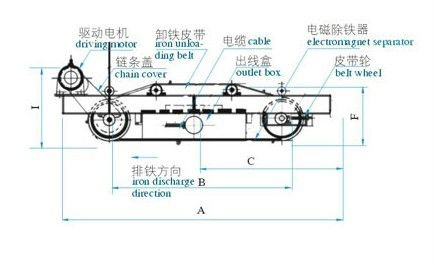

overal Dimension Drawing

RCDD Series Dry Type Self-cleaning Electromagnetic SeparatorRCDD Series Dry Type Self-cleaning Electromagnetic Separator

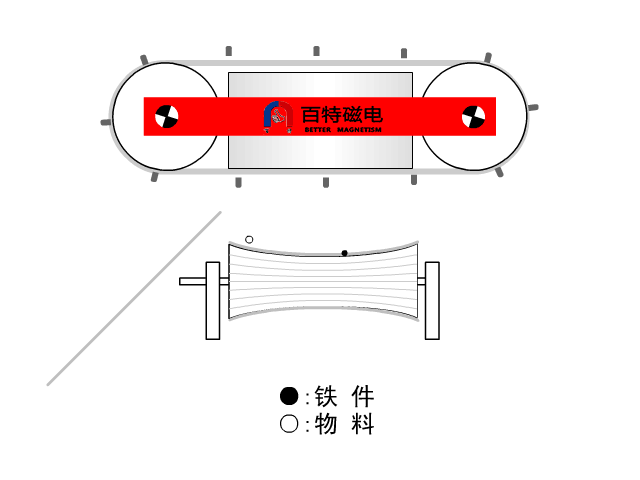

Working Principle Drawing

RCDD Series Dry Type Self-cleaning Electromagnetic Separator

Technical Parameter

NO.Modelconveyor belt width  (mm)Suspension   height（h=mm）Material depth（≤mm）Magnetic   intensity（≥mt）Existing power （≤kw）Belt   speed（m/s）Working systemDriving Power（kw）Weigh（kg)Appearance   size(mm)
ABCDE
1RCDD-5500150100601.04.5Continuous1.5950202010407758531000
2RCDD-6600180130601.81.51380214011008009101100
3RCDD-6.5650200150702.01.51490227511908209881250
4RCDD-8800250200703.62.217702540148086512871350
5RCDD-101000300250705.03.023802750163594014201400
6RCDD-121200350300706.84.0317030001800101015801700
7RCDD-141400400350709.05.5480035002050105018002000
8RCDD-1616004504007013.07.5630039002450118022002350
9RCDD-1818005004508018.07.5780044002850129026002800
Note:All themodels have T1、T2、T3design whose   magnetic intensity is higher than standard.The magnetic 90mt,120mt and 150mt   separately,Discard iron belt can be equipped with armor.


Packaging & Delivery
Packaging Details:
Pack each window with aluminum foil band and PVC film to protect against scratches.
2. Use wood pallet and frames to fix the windows to avoid collision or shaking.
3. Use packing strap to fasten the pallets.
4. Load the pallets with forklifts. Put airbags between pallets to avoid collision.
Delivery Detail:
Shipped in 30 days after payment
