Rcdeq Series Forced Circulation Self-Cleaning Electromagnetic Separator with Lifting Equipment

Model:RCDEQ Forced Circulation Self-Cleaning Electromagnetic separator
RCDEQ series magnetic separator is designed by Weifang Baite Magnet Ltd.It adopt advanced oil forced circulation technoloogy for large or midium transformer both home and abroad.Magnetic route is short,magnetic waste less,the gradient is high and removing iron efficiently.

Print Product Summary

*Brand:Baite
*Color:Multi Color
*Voltage:380V
*Weight:1T
*Material:Stainless Steel
*Warranty Period:1 Year
*Country Of Origin:Shandong, China (Mainland)
*After-Sales-Service:Technical Service
*Dimension:Customized
*Price:Negotation

rechal@baitecidian.com

+86-536-8309116

Specification

Introduction

Basic info:

Model：RCDEQ series Forced Circulation Self-Cleaning Electromagnetic separator

Belt width:1000-2400mm

Suspension height:300-650mm

Magnetic intensity:90-300mT

Excitation power:6.5-200kw

Condenser power:0.25-5kw

Belt speed:<5.8m/s

1 oil forced circulation self-cloeaning electromagnetic separator.jpg

Feature

1.Magnetic route is short, magnetic waste less, the gradient is high and removing iron efficiently.

2.Light weight, compact cooling structure and high heat-releasing efficiently.

3. Absorbing the advanced oil forced circulation technology for the large or medium transformer both home and abroad, it features

with low temperature rising (≤40℃) and the technology is reliable and safety.

4. The exciting coil is completely dipped into the transformer oil to be dustproof, moisture-proof and anti-corrosion.

5. Made three-dimensional excitation coil winding, the area for heat releasing is large to control the temperature rise (≤40℃) for long service life.

6. Easy maintenance, the drum shape structure, special designed wholly sealed structure to help the equipment run in harsh environments.

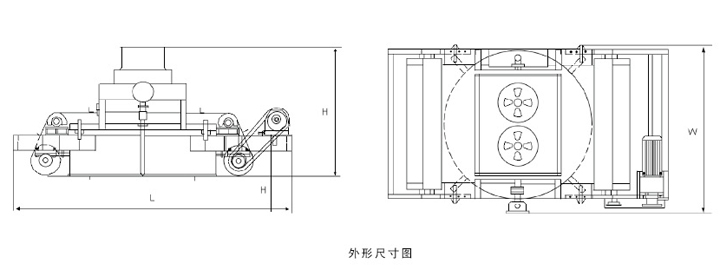

overal Dimension Drawing

Working Principle Drawing

Technical Parameter

No.	Model		conveyor belt width (mm)	Suspension height（h=mm）	Magnetic intensity（≥mt）	Belt speed（m/s）	Existing power （≤kw）	Condenser power （≤kw）	Weight（kg)	Appearance size (mm)
No.	Model		conveyor belt width (mm)	Suspension height（h=mm）	Magnetic intensity（≥mt）	Belt speed（m/s）	Existing power （≤kw）	Condenser power （≤kw）	Weight（kg)	Appearance size (mm)
1	RCDEQ-10	T1	1000	300	90	≤5.8	6.5	0.25	3450	2960×1620×1480
		T2			120		9.5	0.25	3820	2960×1620×1520
		T3			150		15.0	0.25	4500	3000×1620×1550
2	RCDEQ-12	T1	1200	350	90		9.0	0.25	3850	3250×1770×1520
		T2			120		14.0	0.25	4620	3350×1770×1590
		T3			150		20.0	0.25	6600	3520×1770×1590
3	RCDEQ-14	T1	1400	400	90		14.0	0.25	4650	3350×1750×1550
		T2			120		20.0	0.25	6780	3520×1860×1590
		T3			150		29.0	0.25	8560	3630×1860×1620
4	RCDEQ-16	T1	1600	450	90		18.0	0.25	5760	3520×1850×1590
		T2			120		28.0	0.25	8920	3750×2250×1620
		T3			150		32.0	0.25	10200	3950×2250×1630
		T4			175		52.0	0.75	12300	4120×2470×1750
		T5			200		70.0	0.75	14375	4170×24700×1750
		T6			225		85.0	1.1	16730	4230×24900×1800
		T7			250		104.0	0.55×2	18250	4350×25300×1860
5	RCDEQ-18	T1	1800	500	90		26.0	0.75	8800	3950×2250×1630
		T2			120		32.0	0.75	10500	3950×2450×1650
		T3			150		40.0	0.75	12500	4000×2450×1670
		T4			175		56.0	0.75	18560	4240×2500×1800
		T5			200		75.0	0.75	20754	4300×2520×1850
		T6			225		90.0	1.1	22500	4300×2580×1900
		T7			250		107.0	0.55×2	23500	4400×2650×1950
6	RCDEQ-20	T1	2000	550	90		30.0	0.75	11650	3950×2450×1650
		T2			120		39.0	0.75	13500	4100×2680×1670
		T3			150		41.0	0.75	15200	4620×2680×1670
		T4			175		70.0	0.55×2	24580	4400×2680×1830
		T5			200		83.0	0.55×2	25435	4470×2700×1900
		T6			225		104.0	0.55×2	27890	4520×2730×2150
		T7			250		125.0	0.55×2	29500	4600×2800×2250
7	RCDEQ-22	T1	2200	600	90		39	0.75	13200	4100×2680×1670
		T2			120		42	0.75	16500	4260×2750×1690
		T3			150		45	0.75	17260	4500×2750×1690
		T4			175		100	0.55×2	28750	4650×2850×2200
		T5			200		121	0.55×2	30445	4700×2900×2300
		T6			225		153	0.55×2	32270	4780×2900×2300
		T7			250		176	0.55×2	34100	4830×2950×2370
8	RCDEQ-24	T1	2400	650	90		40	0.75	16800	4260×2750×1690
		T2			120		46	0.75	18500	4500×2750×1690
		T3			150		54	0.75	22000	4800×2950×1720
		T4			175		120	0.55×2	34750	4600×2850×2100
		T5			200		150	0.55×2	37680	4700×2950×2280
		T6			225		180	0.55×2	40585	4850×3000×2430
		T7			250		200	1.1×2	44500	4950×3100×2560
