Vietnam Explosion Proof Belt Permanent Magnetic Separator
Vietnam Explosion Proof Belt Permanent Magnetic Separator
Vietnam Explosion Proof Belt Permanent Magnetic Separator
Type:Explosion Proof Belt Permanent Magnetic Separator
This magnetic separator is designed for Vietnam by our company basing adcanced technology,all of them are strictly to ce standard.The magnetic iron separator applies the explosion-proof structure and used together with mining-type explosion-proof electric magnetic lifters,its function of mine explosion-proof can meet the demand of using in coal mine.
Print Product Summary
  • *Brand:Baite
  • *Color:Multi Color
  • *Voltage:220V
  • *Weight:1T
  • *Material:Stainless Steel
  • *Warranty Period:1 Year
  • *Country Of Origin:Shandong, China (Mainland)
  • *After-Sales-Service:Technical Service
  • *Dimension:Customized
  • *Price:Negotation
rechal@baitecidian.com
+86-536-8309116
Specification

Introduction

The magnetic iron separator applies the explosion-proof structure and used together with mining-type

explosion-proof electric magnetic lifters,its function of mine explosion-proof can meet the demand of

using in coal mine.

It adopts our company's patented technology(patent no.:ZL95 2 39746.3),uses rare earth NdFeB as the permanent

 magnetic material,the magnetic circuit is designed optimally by Computer Simulation,this product features constant

 magnetic field,strong magnetic force,long service life,no excitation,and almost no power consumption.

1 ore separator.jpg

overal Dimension Drawing

explosion proof belt permanent magnetic iron separator

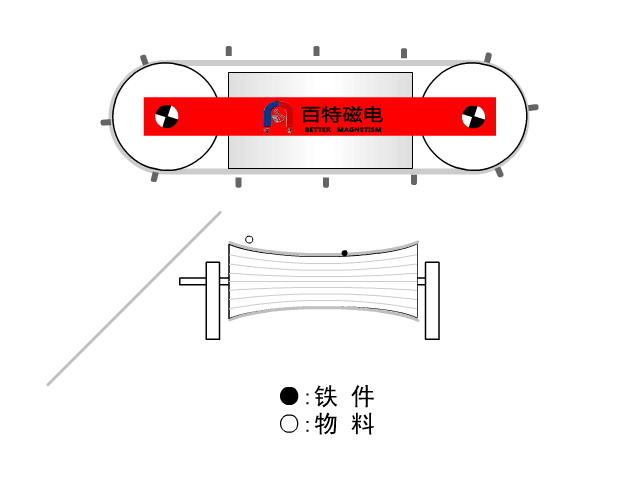

Working Principle Drawing

explosion proof belt permanent magnetic iron separator

Technical Parameter

NO.Modelconveyor belt width  (mm)Suspension height（h=mm）Magnetic intensity（≥mt）Belt speed
    （≤m/s）		Working systemDriving Power（kw）Weight（kg)Appearance   size(mm)
ABCDE
1RBCYD-5500150604.5Continuous1.57501900935735950753
2RBCYD-6.5650200601.51200216510807801200888
3RBCYD-8800250702.214002350128079613001088
4RBCYD-101000300703.021202660155092014001335
5RBCYD-121200350704.0335028601720101015501515
6RBCYD-141400400705.5445032251980105018001755
7RBCYD-161600450707.5620033502160118019501850
8RBCYD-181800500707.5810035802450121022002130
9RBCYD-202000550707.5970038002700130024002410
Note:All themodels have T1、T2、T3design whose   magnetic intensity is higher than standard.The magnetic 90mt,120mt and 150mt   separately,Discard iron belt can be equipped with armor.
