- *Brand:Baite
- *Color:Multi Color
- *Voltage:22V
- *Weight:1T
- *Material:Stainless Steel
- *Warranty Period:1 Year
- *Country Of Origin:Shandong, China (Mainland)
- *After-Sales-Service:Technical Service
- *Dimension:Customized
- *Price:Negotation
rechal@baitecidian.com
+86-536-8309116
Specification
Introduction:
Ceramic Disc Filter,difference between ceramic filter and other similar machines is its ceramic filter plate.
Plate-and-frame (type) filter press is a device for spasmic solid-liquid separation with plate, frame as filter room where liquid was transferred into by conveying pump,
solid-liquid separation will be achieved by filter media.
It is widely used in waste water treatment for industries, such as chemical engineering, dyes, petroleum, pottery, pharmaceutical, sugar and food manufacturing, starch,
syrup, painting, metallurgy and so on. It has a superiority in separation of adhesive material with advantages of good performance, wild application, easy operation,
low cost etc.
Feature:
1. High vacuum(pressure 0.09~0.098Mpa), low moisture of filter cake. Solid content of filtrate<50ppm. Can be repeatedly used, reducing emissions.
2. Compared with traditional filtering equipment energy saving about 90%above, low energy consumption, low operation cost.
3. Added compared with traditional ceramic filtering device filter cake washing, suitable for washing materials.
4. A high degree of automation, reducing labor intensity.
5. Compact structure, small occupation area, convenient installation and maintenance.
6. Advanced drainage system, suitable for any use of working conditions.

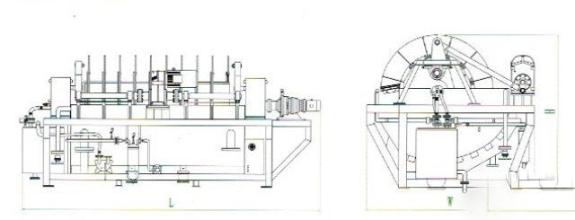

overal Dimension Drawing
Technical Parameter
| NO. | Model | The filter plate number | Number of plate | Volume of tank （m³） | The installed power （Kw） | Driving Power（kw） | Appearance size (mm) | ||
| 1 | TG-1 | 1 | 12 | 0.2 | 3.5 | 2 | 1.6×1.4×1.5 | ||
| 2 | TG-4 | 2 | 24 | 1 | 7 | 3 | 2.4×2.5×2.5 | ||
| 3 | TG-6 | 2 | 24 | 1.2 | 7 | 6 | 2.4×2.9×2.5 | ||
| 4 | TG-9 | 3 | 36 | 1.7 | 9 | 7 | 2.7×2.9×2.5 | ||
| 5 | TG-12 | 4 | 48 | 2.2 | 11 | 7.5 | 3.0×2.9×2.5 | ||
| 6 | TG-15 | 5 | 60 | 2.7 | 12 | 8 | 3.1×3.0×2.5 | ||
| 7 | TG-21 | 7 | 84 | 4 | 14 | 9 | 4.6×3.0×2.6 | ||
| 8 | TG-24 | 8 | 96 | 4.5 | 17 | 10.5 | 4.9×3.0×2.6 | ||
| 9 | TG-27 | 9 | 108 | 5 | 17 | 11 | 5.2×3.0×2.6 | ||
| 10 | TG-30 | 10 | 120 | 5.5 | 18 | 11.5 | 5.5×3.0×2.6 | ||
| 11 | TG-36 | 12 | 144 | 7 | 23 | 16 | 6.6×3.0×2.6 | ||
| 12 | TG-45 | 15 | 180 | 8.5 | 15 | 19 | 7.5×3.0×2.6 | ||
| 13 | TG-60 | 20 | 180 | 13 | 33 | 22 | 7.5×3.3×3.0 | ||
| 14 | TG-80 | 17 | 240 | 17 | 40 | 24 | 9.0×3.3×3.0 | ||
| 15 | TG-100 | 20 | 204 | 19 | 53 | 35 | 8.8×3.6×3.3 | ||
| 16 | TG-120 | 25 | 240 | 20 | 60 | 40 | 9.7×3.6×6.6 | ||
| 17 | TG-150 | 300 | 24 | 75 | 47 | 11.2×3.6×3.3 | |||
