• *Brand:Baite
• *Color:Multi Color
• *Voltage:220V
• *Weight:1T
• *Material:Stainless Steel
• *Warranty Period:1 Year
• *Country Of Origin:Shandong, China (Mainland)
• *After-Sales-Service:Technical Service
• *Dimension:Customized
• *Price:Negotation

This gold dredger is pretty much for Egypt.

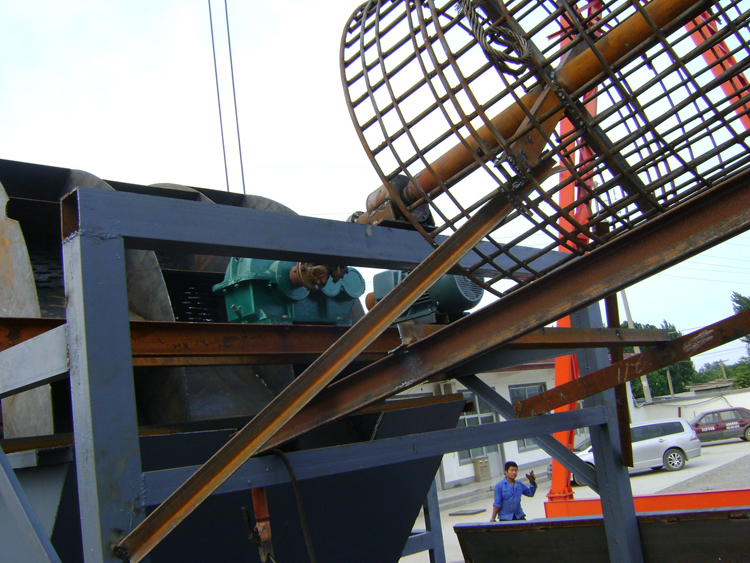

It is a kind of gold mining equipment, dismantles type with hydraulic operation system, can be put into container and assemble at working site. The main hulls are made up of three pontoons, which can be assembled to complete when working. The controlling room is also dismountable, which can be dismantling when passing through bridges. Especially when it is in unconnected water areas, the hull can be dismounted and transported by cars or trains. The driving devices are also use lubes oil and sealed-in units.

Technical features

1.Dredging depth ranges from 4m to 20m max.

2.Processing capacity from 100t/h to 300t/h max.
3.Separating system could be equipped with clay scrubber, gold trommel or vibrating screen according to different mining situations.
4.Gold recovery system could be equipped with belt chute, Knelson centrifugal concentrators (CVD type or batch type), sluice box with gold mat, shaking sluice, etc to ensure highest recovery rate.
5.Power system could be equipped with Cummins diesel generator set with 120kw, 150kw, or 200kw.
6.Gold Refining system could be equipped with gold shaker table, amalgamator, etc.
7.One-shop gold dredger, all process on board.

8. Great Adaptability. The cutter suction dredgers can be widely used in river, lake, sea, reservoir and so on for sand/mud dredging,waterway cleaning and reclamaition work.
9. High Efficiency. The cutter suction dredgers can dredge and discharge sand/mud at the same time without other ships for transportation. So the cost will be much lower and they can reach big production capacity of several thousand cubic meters per hour and also several thousand meters discharge distance.
10. Easy Operation. With hydraulic system and PLC control system, all the dredgers operation can be done in the operation cabin.

Technical Parameters

There is no better , only better.
Weifang baite Magnet Technology Co., Ltd . is a modern joint-stock enterprise, which is producing magnetic and power equipment .It is the larger magnetic equipment manufacturer of reach and development , engineering design ,production and installation ,commissioning and service. The service is related to more than 10 areas ,such as electricity , coal ,building materials, metallurgy ,ports ,mining ,nonferrous metals ,power environmental production .At present ,we  have provided more than 3000 domestic customers with reliable and value-added and convenient professional equipment and programs, and at the same time ,we occupy more than 60%magnetic separation equipment matching share of China ball mill, crusher, iron sand ship and other production industry, Baite has firmly implemented IS09001.To seek value for customers, to seek development for enterprise. During pursuing development , our company never forget to seek value for our customers . we will design and manufacture equipments according to different requirments of our customers.
